RTD Surface Sensor, Self-Adhesive, Fast Response, -73 C to 260 C, +/- 0.15 C Accuracy, 3 Wires, Class A DIN Platinum, 100 Ω, Stripped Leads, PFA, 40", SA1-RTD-series

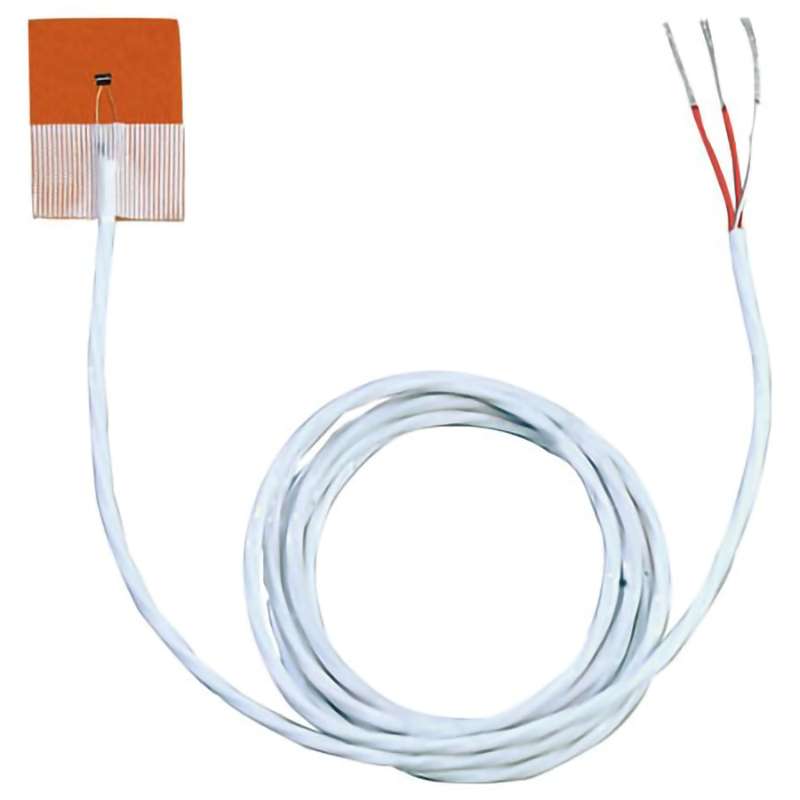

The Omega SA1-RTD

Surface-mount RTD temperature sensor mounts on flat or curved surfaces and provides Class A accuracy for critical temperature monitoring applications. Based on a 2 x 2 x 0.8 mm thin-film platinum RTD and supplied with bare 3-wire leads as a standard configuration (connector optional), itcan be customized for use in a wide variety of applications. The sensor can be easily applied with its selfadhesive backing, or positioned permanently with OMEGABOND™ cements.

Use the SA1-RTD to monitor chip, heat sink, and environmental temperatures in electronic devices; check piping or ducting temperatures;monitor motor and transformer core heat; test insulation capabilities; and check other applications in which surface and/or gradient temperatures need to be monitored or controlled.

RTD Surface Sensor, Self-Adhesive, Fast Response, -73 C to 260 C, +/- 0.15 C Accuracy, 3 Wires, Class A DIN Platinum, 100 Ω, Stripped Leads, PFA, 40"
