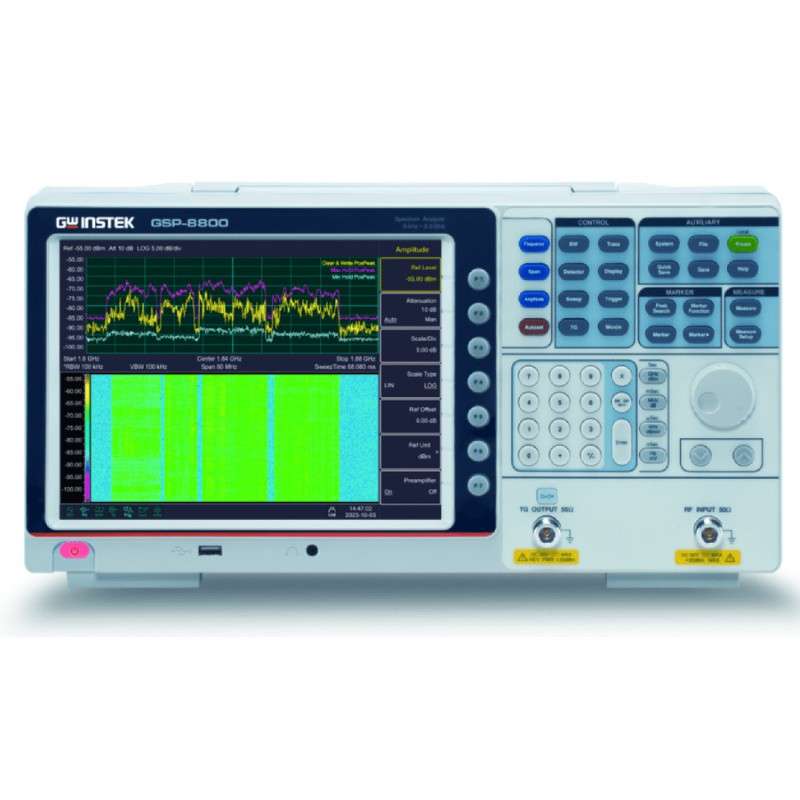

9KHz~8.8GHz Spectrum Analyzer
Hisco #:GSP-8800-50297
MFG #:GSP-8800
Item must be ordered in multiples of 1
9KHz~8.8GHz Spectrum Analyzer
- Frequency range: 9kHz - 8.8GHz
- ***this version does not include a tracking generator***
- 20dB preamplifier
- AM/FM demodulation, channel power measurement and time spec function are included standard
- EMI filter via option GSP-8800E1
- RBW: 1Hz - 1MHz in 1-3-5-10 steps
- VBW: 10Hz - 3Mhz in 1-3-5-10 steps
- Phase noise: -104 dBc/Hz
- Sensitivity: -160dBm/Hz typical (preamp on)
- Measurement functions: ACPR/OCBW/CHPW, NdB, BW, Pass-fail, frequency counter, noise marker
The Instek GSP-8000 series of spectrum analyzers feature three frequency ranges and are suitable for many applications, including education, R&D verification, as well as test requirements of radio frequency products during production and development stages. The series provides 1Hz ~ 1MHz resolution bandwidth (RBW), 10Hz ~ 3MHz video bandwidth (VBW), -104dBc/Hz phase noise, a 20dB preamplifier, and the lowest noise floor of -160dBm/Hz (typical).
| Model | Frequency Range | Tracking Generator | Preamp |
|---|---|---|---|
| GSP-8180 TG | 9 kHz - 1.8 GHz | Yes | Yes |
| GSP-8380 TG | 9 kHz - 3.8 GHz | Yes | Yes |
| GSP-8800 | 9 kHz - 8.8 GHz | No | Yes |
| GSP-8800 TG | 9 kHz - 8.8 GHz | Yes | Yes |
In The Box
- Instrument
- Power cord
- Safety guide
- USB cable
Product Description
9KHz~8.8GHz Spectrum Analyzer
- Frequency range: 9kHz - 8.8GHz
- ***this version does not include a tracking generator***
- 20dB preamplifier
- AM/FM demodulation, channel power measurement and time spec function are included standard
- EMI filter via option GSP-8800E1
- RBW: 1Hz - 1MHz in 1-3-5-10 steps
- VBW: 10Hz - 3Mhz in 1-3-5-10 steps
- Phase noise: -104 dBc/Hz
- Sensitivity: -160dBm/Hz typical (preamp on)
- Measurement functions: ACPR/OCBW/CHPW, NdB, BW, Pass-fail, frequency counter, noise marker
The Instek GSP-8000 series of spectrum analyzers feature three frequency ranges and are suitable for many applications, including education, R&D verification, as well as test requirements of radio frequency products during production and development stages. The series provides 1Hz ~ 1MHz resolution bandwidth (RBW), 10Hz ~ 3MHz video bandwidth (VBW), -104dBc/Hz phase noise, a 20dB preamplifier, and the lowest noise floor of -160dBm/Hz (typical).
| Model | Frequency Range | Tracking Generator | Preamp |
|---|---|---|---|
| GSP-8180 TG | 9 kHz - 1.8 GHz | Yes | Yes |
| GSP-8380 TG | 9 kHz - 3.8 GHz | Yes | Yes |
| GSP-8800 | 9 kHz - 8.8 GHz | No | Yes |
| GSP-8800 TG | 9 kHz - 8.8 GHz | Yes | Yes |
In The Box
- Instrument
- Power cord
- Safety guide
- USB cable
