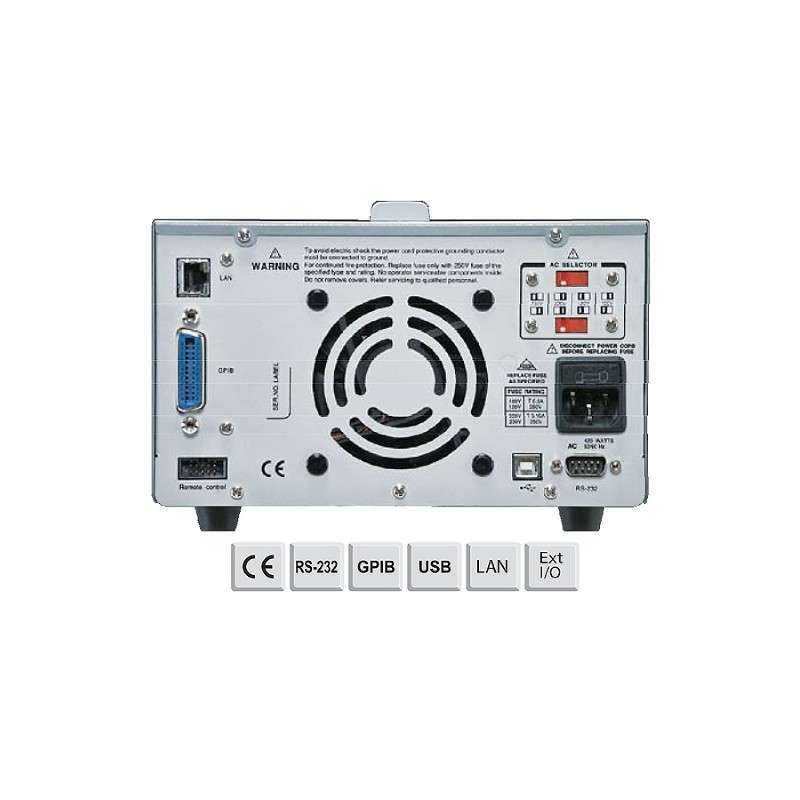

192W Single-Channel Programmable DC Power Supply with LAN

GPP-1326 (LAN) DC Power Supply

Features:

• 1 Channel
• Output Mode: Current 0~6A; Voltage 0~32V
• Power Source: AC100V/120V/220V/230V ±10%, 50/60Hz
• Interface: RS-232/USB(CDC) and LAN

GPP Series Highlights:

• 4.3 inch TFT LCD Display
• Supports Setting Value, Measurement Value and Output Waveform Display
• Load Function (CC, CV, CR Mode)
• Setting Resolution: 1mV / 0.1mA; Read Back Resolution: 0.1mV / 0.1mA
• Low Ripple Noise: ≤350uVrms/ ≤2mArms
• Transient Response Time: ≤50uS
• Utilizing Hardware to Realize Over Voltage Protection / Over Current Protection / Over Temperature Protection
• Delay Function / Output Monitoring Function / Output Recorder Function
• Intelligent Temperature Control Fan Effectively Reduces Noise
• Sequential Output Function and Built-in 8 Template Waveforms
• The Output Recorder Function Records The Output Voltage & Current Parameters with A Minimum Recording Interval of 1 Second.
• Provides 10 Sets of Memory for Each Sequence/Delay/Recorder/Panel Setting Condition
• GPP-3323 Supports A USB (Type A) Output Terminal
• Compatible with Commands of GPD-x303S Series

With the maximum output power of 217W, the GPP-Series programmable DC power supply not only provides high program resolution (1mV/0.1mA) and read back resolution (0.1mV/0.1mA), but also features optimal low-ripple noise characteristics ≤350uVrms/ ≤2mArms and output transient recovery capability ≤50S. Independent output on-off switch is provided for each channel in the series.
