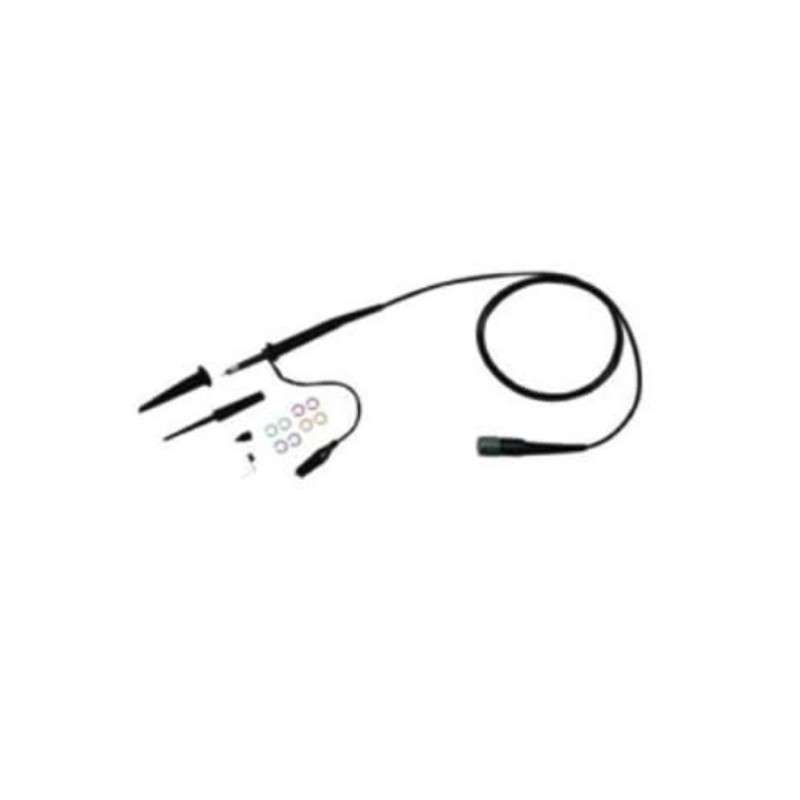

200 MHz Probe for GDS-3000 Series, GDS-2000A/E Series, GDS-1000A-U Series, GDS-1000U Series
Hisco #:GTP-200B-4-50297
MFG #:GTP-200B-4
Item must be ordered in multiples of 1
- Passive high impedance oscilloscope probe
- Designed and calibrated for use on instrument having an input impedance of 1MΩ shunted by 20pF.
- Incorporates a two position slide switch in the head which selects attenuation of x1,x10 position
- For GDS-3000 Series, GDS-2000A/E Series, GDS-1000A-U
The GTP-200B-4 is a passive high impedance oscilloscope probe designed and calibrated for use on instrument having an input impedance of 1MΩ shunted by 20pF. However, it may be compensated for use with instruments having an input capacitance of 5-30pF. The probe incorporates a two position slide switch in the head which selects attenuation of x1,x10 position.
Product Description
- Passive high impedance oscilloscope probe
- Designed and calibrated for use on instrument having an input impedance of 1MΩ shunted by 20pF.
- Incorporates a two position slide switch in the head which selects attenuation of x1,x10 position
- For GDS-3000 Series, GDS-2000A/E Series, GDS-1000A-U
The GTP-200B-4 is a passive high impedance oscilloscope probe designed and calibrated for use on instrument having an input impedance of 1MΩ shunted by 20pF. However, it may be compensated for use with instruments having an input capacitance of 5-30pF. The probe incorporates a two position slide switch in the head which selects attenuation of x1,x10 position.
Technical Information
