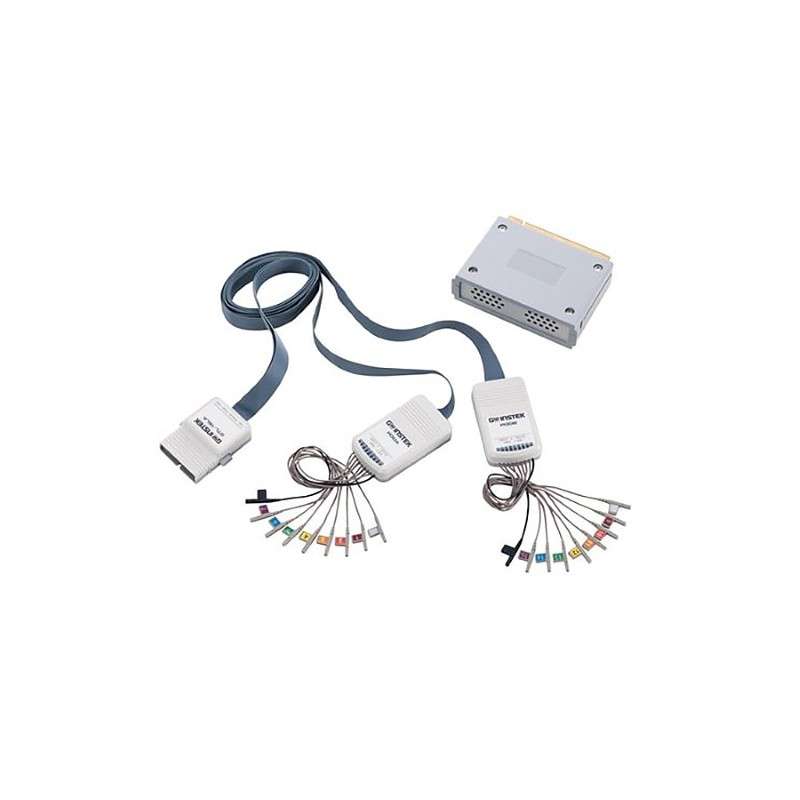

16-Ch Logic Analyzer Module [GDS-2000A Series]

DS2-16LA 16-Channel Logic Analyzer Module

• Sample Rate: 500MSa/s
• Bandwidth: 200MHz
• Record Length: 2M max/ch
• Input Channels: 16 Digital (D15-D0) or 8 Digital (D7-D0)
• Trigger type: Edge, Pattern, Pulse Width, Serial bus
• Thresholds: Quad-D0-D3, D4-D7 / Thresholds D8-D11*, D12-D15* (*DS2-16LA only)
• Threshold selections: TTL, CMOS, ECL, PECL, User Defined
• Threshold Accuracy: +/- 100mV
• User-defined Threshold Range: +/- 10V
• Maximum Input Voltage: +/- 40V
• Minimum Voltage Swing: +/- 500mV
• For Instek GDS-2000 Series Oscilloscopes

The Logic Analyzer Module adds digital signal analysis and Serial Bus Decoding (I2C, SPI and UART) to any Instek GDS-2000A series oscilloscope. Turning it into a highly affordable MSO (Mixed Signal Oscilloscope). It allows the signal acquisition through logic triggering and enables the logic waveforms and the analog waveforms to be shown on the same screen for comparison and time correlation analysis. This Mixed Signal Oscilloscope (MSO) function is field-installable with a plug-in module, containing either 8 or 16 input channels, at the rear panel.
