Power Analysis Software for GDS-3000A

GDS-3000A provides a rich measurement items for switch mode power supply testing. The provided power supply test items include the following.

On one side of GDS-3000A, a power supply for 50MHz (GCP-530) and 100MHz(GCP-1030) current probes is provided. This feature can save users the cost of purchasing the power supply for current probes and relief the burden of carrying the power supply when going out

In daily life, switching power supplies have become the mainstream of power supplies. Engineers often have to rack their brains in order to improve product performance and reduce switching loss, and Ripple/Noise.

The GDS-3000A Series has an option of rich measurement items for switching mode power supply testing. To meet engineers measurement needs for switching mode power supply, rich measurement function can help engineers save a lot of measurement computing time and improve product development efficiency.

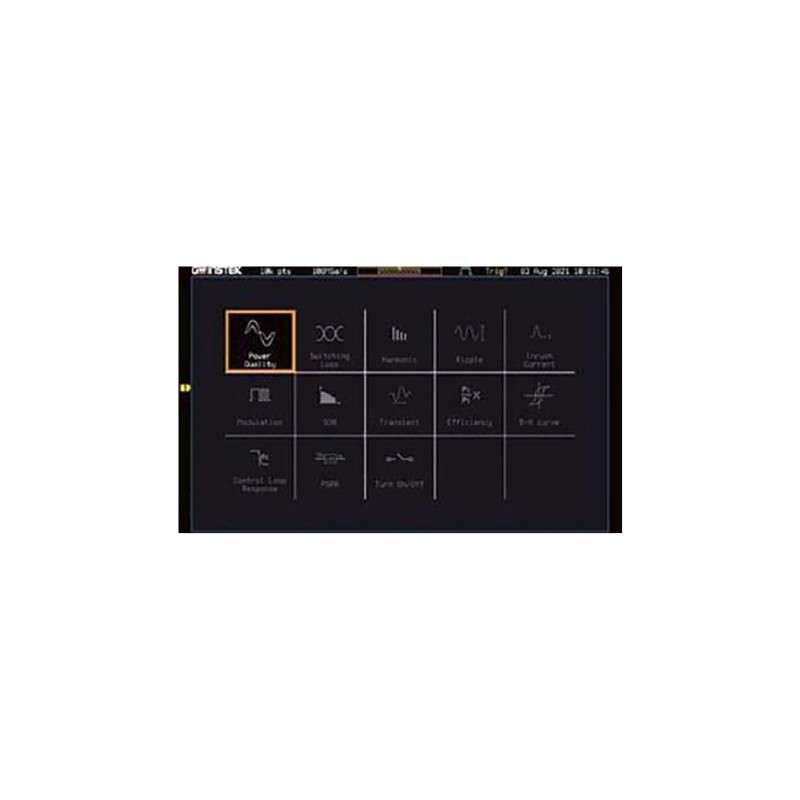

Measurement Items for Switch Mode Power Supply Testing

• Power Quality
• Harmonics
• Inrush Current

• Ripple/Noise
• Transient Response Analysis
• Turn On/OFF
• Efficiency
• Control Loop response(Bode)
• PSRR(Power Supply Rejection Ratio)

• Modulation
• Switching loss
• SOA(Safe Operation Area)

• B-H curve
