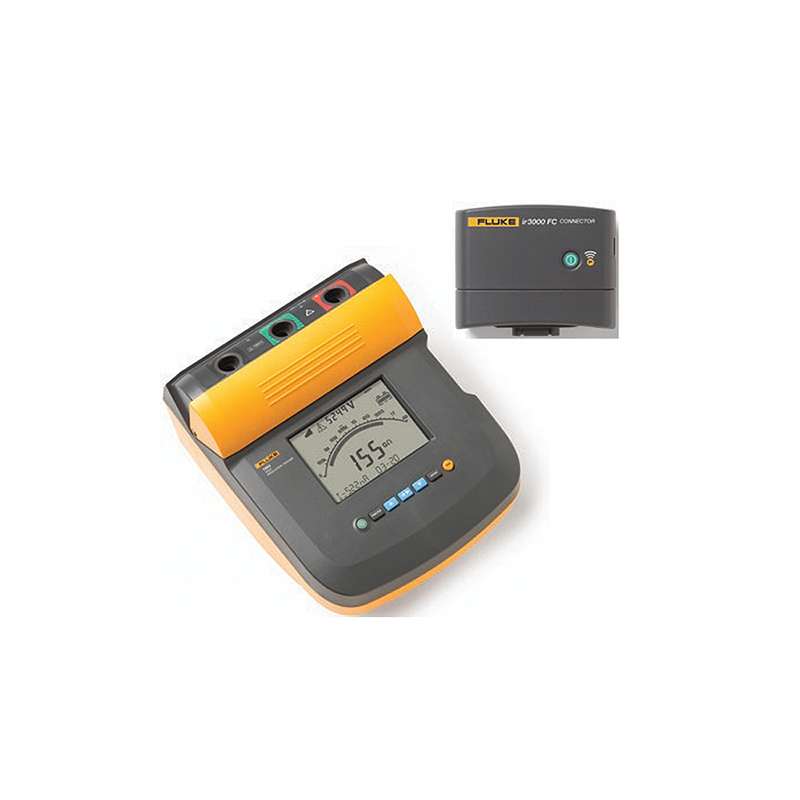

10KV Insulation Tester Kit with IR 3000FC 1550 Connector
Hisco #:4977519-19816
MFG #:4977519
$
Manufacturer Estimated Lead Time When Not In Stock: 14 days
Minimum Order QTY: 1
Item must be ordered in multiples of 1
Item must be ordered in multiples of 1
The Fluke 4977519 offers digital insulation testing up to 10 kV, making it ideal for testing high voltage equipment including switchgear, motors, generators and cables.
Fluke 4977519 Features:- Automatic calculation of Dielectric Absorption (DAR) and Polarization Index (PI) with no additional setup
- Guard system eliminates the effect of surface leakage current on high-resistance measurements
- Selectable test voltages in 50 V steps from 250 V to 1000 V, and 100 V steps above 1000 V
- CAT III 1000 V, CAT IV 600 V safety rating
- Brand: Fluke
- Product Type: Multimeter Test Kits
- Display: 75 mm x 105 mm
- Power: 12 V lead-acid rechargeable battery, Yuasa NP2.8-12
- Charger Input (AC): 85 V ac 50/60 Hz 20 VA
- Dimensions: 269 x 277 x 160 mm (10.6 x 10.9 x 6.3 in)
- Humidity: 80 % to 31 °C decreasing linearly to 50 % at 50 °C
- Altitude: 2000 m
- Enclosure sealing: IP40
- Input overload protection: 1000 V ac
- Bar graph range: 0 to 1 TΩ (1550C) - 0 to 2 TΩ (1555)
Product Description
Technical Information
SDS/TDS
Back to top
Product Description
The Fluke 4977519 offers digital insulation testing up to 10 kV, making it ideal for testing high voltage equipment including switchgear, motors, generators and cables.
Fluke 4977519 Features:- Automatic calculation of Dielectric Absorption (DAR) and Polarization Index (PI) with no additional setup
- Guard system eliminates the effect of surface leakage current on high-resistance measurements
- Selectable test voltages in 50 V steps from 250 V to 1000 V, and 100 V steps above 1000 V
- CAT III 1000 V, CAT IV 600 V safety rating
- Brand: Fluke
- Product Type: Multimeter Test Kits
- Display: 75 mm x 105 mm
- Power: 12 V lead-acid rechargeable battery, Yuasa NP2.8-12
- Charger Input (AC): 85 V ac 50/60 Hz 20 VA
- Dimensions: 269 x 277 x 160 mm (10.6 x 10.9 x 6.3 in)
- Humidity: 80 % to 31 °C decreasing linearly to 50 % at 50 °C
- Altitude: 2000 m
- Enclosure sealing: IP40
- Input overload protection: 1000 V ac
- Bar graph range: 0 to 1 TΩ (1550C) - 0 to 2 TΩ (1555)
Technical Information
Brand: Fluke
