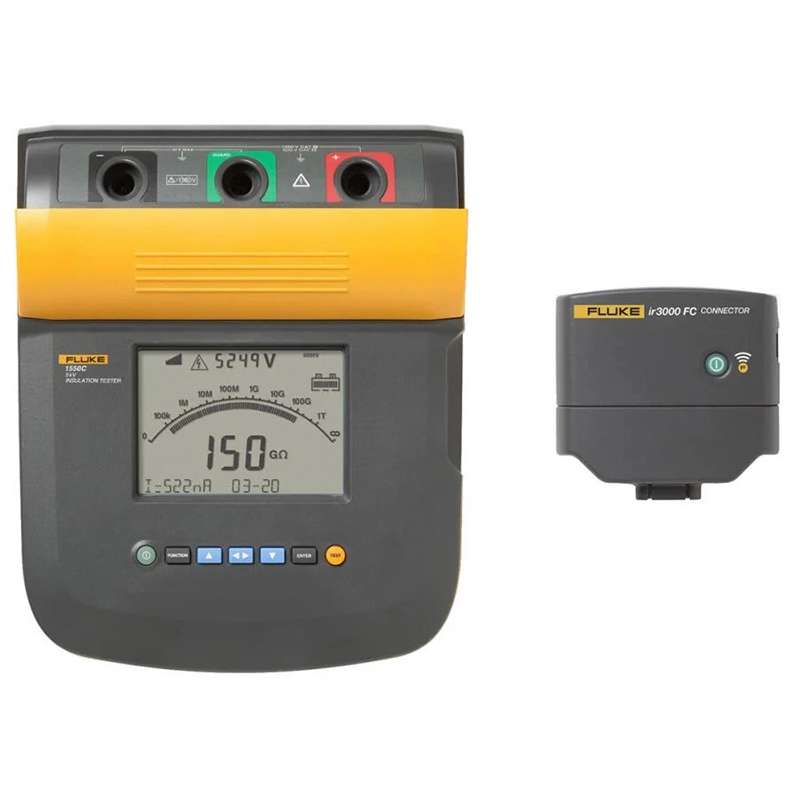

5KV Insulation Tester with IR 3000FC 1550 Connector
Hisco #:4977402-19816
MFG #:4977402
$
Manufacturer Estimated Lead Time When Not In Stock: 14 days
Minimum Order QTY: 1
Item must be ordered in multiples of 1
Item must be ordered in multiples of 1
The Fluke 4977402 performs digital insulation testing up to 5 kV, and makes data collection easy through the Fluke Connect™ wireless app. Remote operation lets you spend as little time as possible in potentially hazardous zones. Real-time trending shows a live graph on your phone, rather than a hard-to-read set of changing values.
Fluke 4977402 Features:- Automatic calculation of Dielectric Absorption (DAR) and Polarization Index (PI) with no additional setup
- Guard system eliminates the effect of surface leakage current on high-resistance measurements
- Selectable test voltages in 50 V steps from 250 V to 1000 V, and 100 V steps above 1000 V
- CAT III 1000 V, CAT IV 600 V safety rating
- Brand: Fluke
- Product Type: Multimeter Test Kits
- Display: 75 x 105 mm
- Power: 12 V lead-acid rechargeable battery, Yuasa NP2.8-12
- Charger Input (AC): 85 V to 250 V AC 50/60 Hz 20 VA
- Dimensions: 269 x 277 x 160 mm (10.6 x 10.9 x 6.3 in)
- Humidity:
- Humidity: 80% to 31°C decreasing linearly to 50% at 50°C
- Altitude: 2000 m
- Enclosure sealing: IP40
Product Description
Technical Information
SDS/TDS
Back to top
Product Description
The Fluke 4977402 performs digital insulation testing up to 5 kV, and makes data collection easy through the Fluke Connect™ wireless app. Remote operation lets you spend as little time as possible in potentially hazardous zones. Real-time trending shows a live graph on your phone, rather than a hard-to-read set of changing values.
Fluke 4977402 Features:- Automatic calculation of Dielectric Absorption (DAR) and Polarization Index (PI) with no additional setup
- Guard system eliminates the effect of surface leakage current on high-resistance measurements
- Selectable test voltages in 50 V steps from 250 V to 1000 V, and 100 V steps above 1000 V
- CAT III 1000 V, CAT IV 600 V safety rating
- Brand: Fluke
- Product Type: Multimeter Test Kits
- Display: 75 x 105 mm
- Power: 12 V lead-acid rechargeable battery, Yuasa NP2.8-12
- Charger Input (AC): 85 V to 250 V AC 50/60 Hz 20 VA
- Dimensions: 269 x 277 x 160 mm (10.6 x 10.9 x 6.3 in)
- Humidity:
- Humidity: 80% to 31°C decreasing linearly to 50% at 50°C
- Altitude: 2000 m
- Enclosure sealing: IP40
Technical Information
Brand: Fluke
