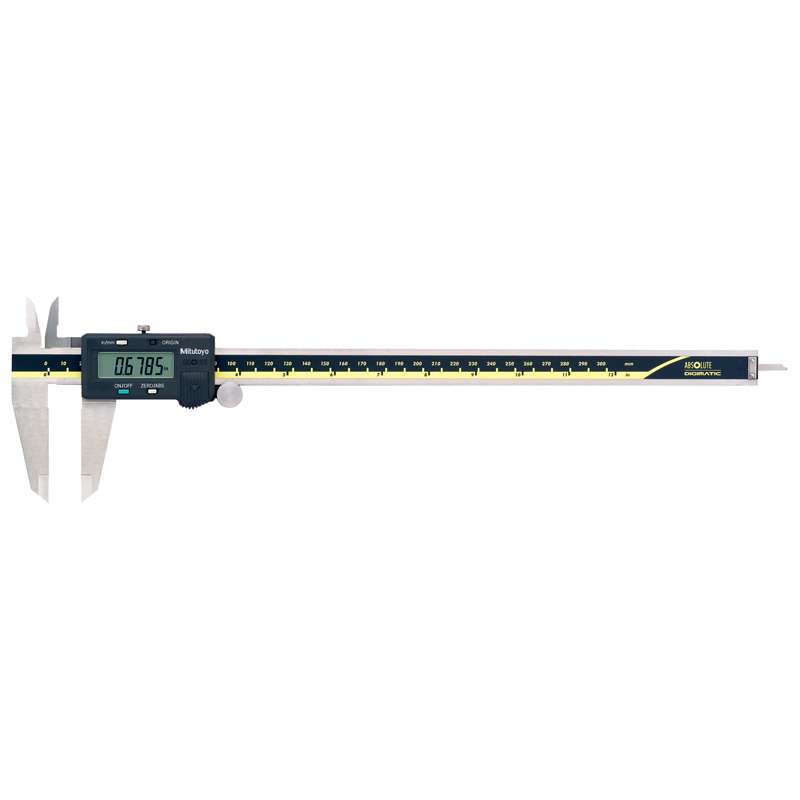

Series 500 Digimatic Caliper with ABSOLUTE Encode Technology and SPC Output, 0-12" Range
Hisco #:500-173-65737
MFG #:500-173-30
$
Manufacturer Estimated Lead Time When Not In Stock: 9 days
Minimum Order QTY: 1
Item must be ordered in multiples of 1
Item must be ordered in multiples of 1
The Mitutoyo 500-173-30 is a Series 500 digital caliper with a accuracy of ±0.0015 in ±0.03 mm.
The Mitutoyo 500-173-30 Features:- The ZERO/ABS button allows the display to be Zero-Set at any slider position along the scale for comparison measurements. This button also allows return to the absolute mode for displaying the true position from the origin
- Data Hold Unit is optional
- Brand: Absolute™
- Series: 500
- Product Type: Digital Caliper
- Imperial or Metric: Imperial Metric
- Maximum Measurement: 12 in 300 mm
- Minimum Measurement: 0 in 0 mm
- Resolution: 0.0005 in 0.01 mm
- Accuracy: ±0.0015 in ±0.03 mm
- Repeatability: 0.01mm
- SPC Output (Yes/No): Yes
- Material: Stainless Steel
- Material Category: Metal
- Display Type: LCD
- Power Source: Battery
- Battery Type: SR44 Battery
- Includes: Thumb Roller, Plastic Case
Product Description
Technical Information
Parts & Accessories
Back to top
Product Description
The Mitutoyo 500-173-30 is a Series 500 digital caliper with a accuracy of ±0.0015 in ±0.03 mm.
The Mitutoyo 500-173-30 Features:- The ZERO/ABS button allows the display to be Zero-Set at any slider position along the scale for comparison measurements. This button also allows return to the absolute mode for displaying the true position from the origin
- Data Hold Unit is optional
- Brand: Absolute™
- Series: 500
- Product Type: Digital Caliper
- Imperial or Metric: Imperial Metric
- Maximum Measurement: 12 in 300 mm
- Minimum Measurement: 0 in 0 mm
- Resolution: 0.0005 in 0.01 mm
- Accuracy: ±0.0015 in ±0.03 mm
- Repeatability: 0.01mm
- SPC Output (Yes/No): Yes
- Material: Stainless Steel
- Material Category: Metal
- Display Type: LCD
- Power Source: Battery
- Battery Type: SR44 Battery
- Includes: Thumb Roller, Plastic Case
Technical Information
Brand: Mitutoyo
Availability: In Stock
Weight: 2
Country Of Origin: JP
Harmonized Code: 9017.30.4000
UPC Code: 4946368728391
$
