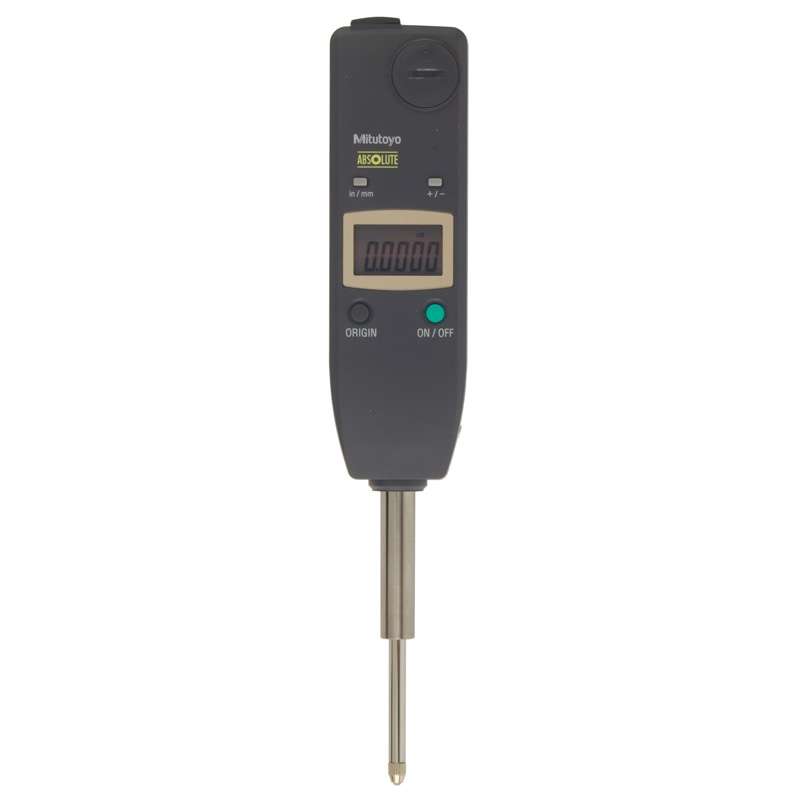

Series 575 ID-U Digimatic Indicator with ABSOLUTE Encode Technology, 0-1"/25.4mm Range
Hisco #:575-123-65737
MFG #:575-123
$
Manufacturer Estimated Lead Time When Not In Stock: 5 days
Minimum Order QTY: 1
Item must be ordered in multiples of 1
Item must be ordered in multiples of 1
The Mitutoyo 575-123 is a Series 575 digimatic indicator .
The Mitutoyo 575-123 Features:- Slim type digital indicator with low price
- Large LCD and simple key operation
- After the initial origin setting, the ID no longer needs absolute positioning over the entire battery life the origin is remembered even after power-off
- Ideal for installation into measuring devices because of it’s compact design and long battery life
- Employing the ABSOLUTE linear encoder the ID-U always displays the spindle Absolute Position from the origin at power-on. Also unlimited response speed eliminates over-speed errors
- Flat back type only no option for backs
- SPC data output
- Series: 575
- Product Type: Digimatic Indicator
- Maximum Measurement: 1 in 25.4 mm
- Accuracy: 0.0008in
- Resolution: 0.0005 in 0.01 mm
- Stem Size: 3/8in
- Measuring Force: ≤1.8N
- Imperial or Metric: Imperial Metric
- Thread Type: 4-48 UNF
Product Description
Technical Information
Parts & Accessories
Back to top
Product Description
The Mitutoyo 575-123 is a Series 575 digimatic indicator .
The Mitutoyo 575-123 Features:- Slim type digital indicator with low price
- Large LCD and simple key operation
- After the initial origin setting, the ID no longer needs absolute positioning over the entire battery life the origin is remembered even after power-off
- Ideal for installation into measuring devices because of it’s compact design and long battery life
- Employing the ABSOLUTE linear encoder the ID-U always displays the spindle Absolute Position from the origin at power-on. Also unlimited response speed eliminates over-speed errors
- Flat back type only no option for backs
- SPC data output
- Series: 575
- Product Type: Digimatic Indicator
- Maximum Measurement: 1 in 25.4 mm
- Accuracy: 0.0008in
- Resolution: 0.0005 in 0.01 mm
- Stem Size: 3/8in
- Measuring Force: ≤1.8N
- Imperial or Metric: Imperial Metric
- Thread Type: 4-48 UNF
Technical Information
Brand: Mitutoyo
Weight: 0.5
Country Of Origin: JP
Harmonized Code: 9031.80.8085
UPC Code: 4946368131290
$
