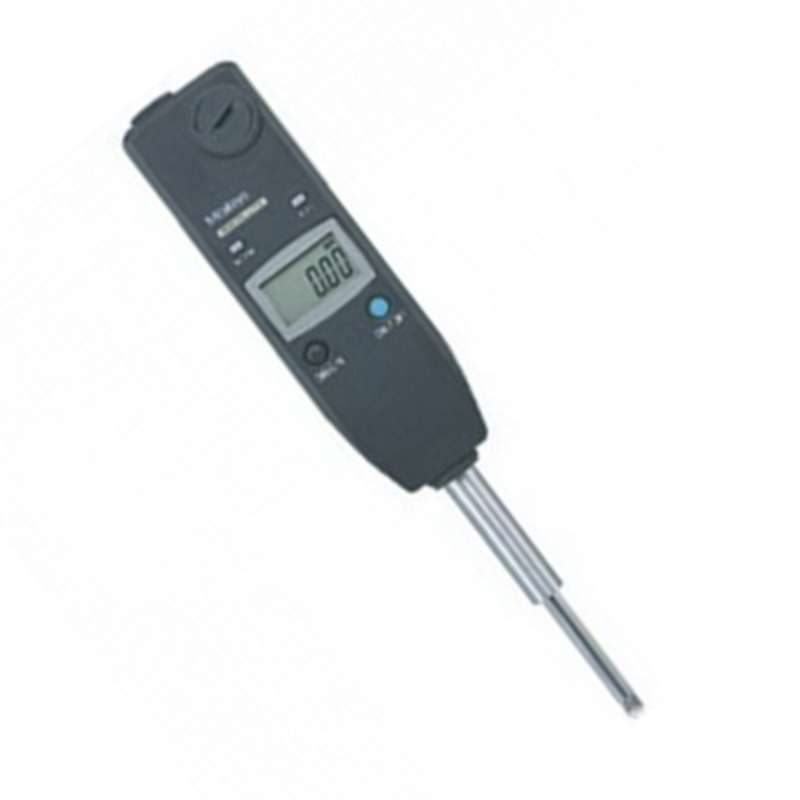

Mitutoyo® 575 Digital LCD® Digimatic Indicator, 3/8 in, 0.0008 in, 1.8 N
Hisco #:504-575-123-37238
MFG #:504-575-123
$
Manufacturer Estimated Lead Time When Not In Stock: 7 days
Minimum Order QTY: 1
Item must be ordered in multiples of 1
Item must be ordered in multiples of 1
The Mitutoyo 504-575-123 is a Series 575 digimatic indicator .
The Mitutoyo 504-575-123 Features:- Slim type digital indicator with low price
- Large LCD and simple key operation
- After the initial origin setting, the ID-U no longer needs absolute positioning over the entire battery life the origin is remembered even after power-off
- Ideal for installation into measuring devices because of it’s compact design and long battery life
- Employing the ABSOLUTE linear encoder, the ID-U always displays the spindle Absolute Position from the origin at power-on. Also unlimited response speed eliminates over-speed errors
- Flat back type only no option for backs
- SPC data output
- Series: 575
- Product Type: Digimatic Indicator
- Maximum Measurement: 1 in 25.4 mm
- Accuracy: 0.0008in
- Resolution: 0.0005 in 0.01 mm
- Stem Size: 3/8in
- Measuring Force: ≤1.8N
- Imperial or Metric: Imperial Metric
- Thread Type: 4-48 UNF
Product Description
Technical Information
Back to top
Product Description
The Mitutoyo 504-575-123 is a Series 575 digimatic indicator .
The Mitutoyo 504-575-123 Features:- Slim type digital indicator with low price
- Large LCD and simple key operation
- After the initial origin setting, the ID-U no longer needs absolute positioning over the entire battery life the origin is remembered even after power-off
- Ideal for installation into measuring devices because of it’s compact design and long battery life
- Employing the ABSOLUTE linear encoder, the ID-U always displays the spindle Absolute Position from the origin at power-on. Also unlimited response speed eliminates over-speed errors
- Flat back type only no option for backs
- SPC data output
- Series: 575
- Product Type: Digimatic Indicator
- Maximum Measurement: 1 in 25.4 mm
- Accuracy: 0.0008in
- Resolution: 0.0005 in 0.01 mm
- Stem Size: 3/8in
- Measuring Force: ≤1.8N
- Imperial or Metric: Imperial Metric
- Thread Type: 4-48 UNF
Technical Information
Brand: Mitutoyo
Weight: 0.582
Country Of Origin: JP
$
