10:1 Voltage Probe Set, Grey, 200 mhz, 1.2M
Hisco #:3086247-19816
MFG #:3086247
$
Manufacturer Estimated Lead Time When Not In Stock: 14 days
Minimum Order QTY: 1
Item must be ordered in multiples of 1
Item must be ordered in multiples of 1

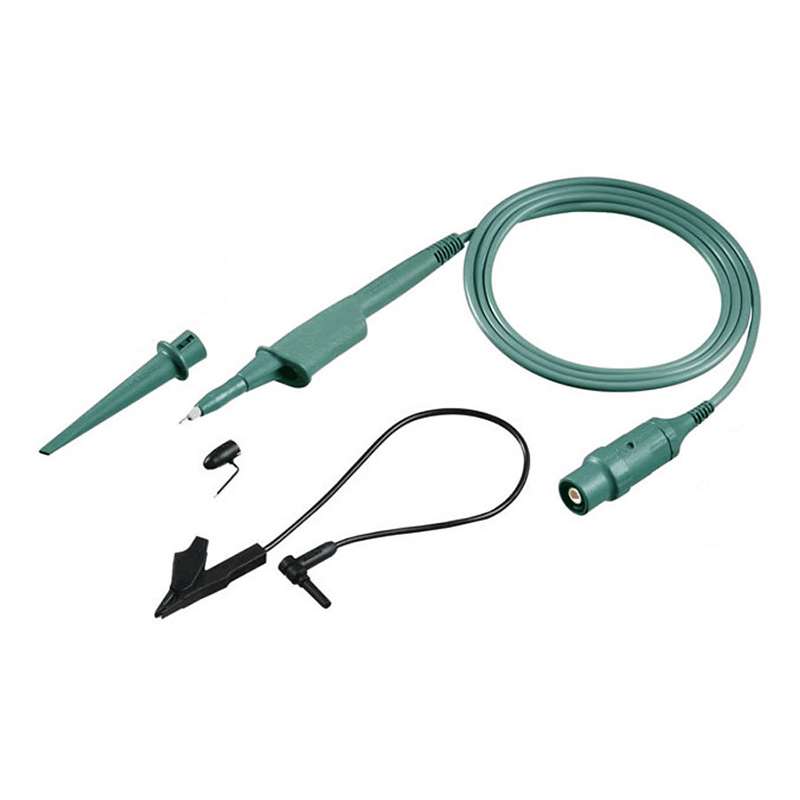

The Fluke 3086247 VPS210-G voltage probe set is the double insulated voltage probe for scopemeter 190 series.
Fluke 3086247 Features:- 600 V CAT III / 1000 V CAT II rated 10:1 Voltage Probe
- Hook Clip for Probe Tip
- Ground Lead with Mini Alligator
- Insulation Sleeve
- 30 V CAT II rated Ground Spring for Probe Tip
- Brand: Fluke
- Product Type: Tone & Probe Testers & Kits
- Attenuation: 10x
- Bandwidth: 200 MHz
- Max. Input Voltage: 1000 V CAT II or 600 V CAT III
- Max. Voltage to ground: 1000 V CAT II or 600 V CAT III per IEC / EN61010-031
- Input Resistance: 10 M?
- Input Capacitance: 12 pF
- Compensation range: 10 to 22 pF
- Cable Length: 1.2 m
Product Description
Technical Information
SDS/TDS
Back to top
Product Description
The Fluke 3086247 VPS210-G voltage probe set is the double insulated voltage probe for scopemeter 190 series.
Fluke 3086247 Features:- 600 V CAT III / 1000 V CAT II rated 10:1 Voltage Probe
- Hook Clip for Probe Tip
- Ground Lead with Mini Alligator
- Insulation Sleeve
- 30 V CAT II rated Ground Spring for Probe Tip
- Brand: Fluke
- Product Type: Tone & Probe Testers & Kits
- Attenuation: 10x
- Bandwidth: 200 MHz
- Max. Input Voltage: 1000 V CAT II or 600 V CAT III
- Max. Voltage to ground: 1000 V CAT II or 600 V CAT III per IEC / EN61010-031
- Input Resistance: 10 M?
- Input Capacitance: 12 pF
- Compensation range: 10 to 22 pF
- Cable Length: 1.2 m
Technical Information
Brand: Fluke
