Jonard Tools

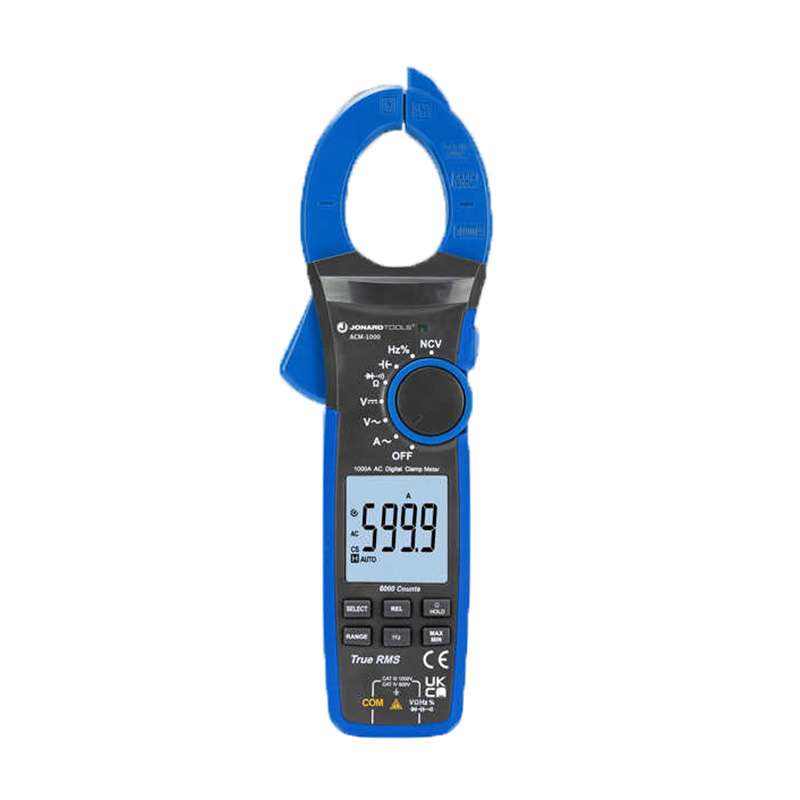

1000A Digital Clamp Meter
Hisco #:ACM-1000-27552
MFG #:ACM-1000
$
Manufacturer Estimated Lead Time When Not In Stock: 14 days
Minimum Order QTY: 1
Item must be ordered in multiples of 1
Item must be ordered in multiples of 1
The Jonard Tools ACM-1000 is a digital clamp meter which features automatically ranging true root mean squared (TRMS) technology for increased accuracy.
Jonard Tools ACM-1000 Features:- Tests leads measure AC/DC voltage, resistance, continuity, frequency and capacitance and tests diodes
- Safety rated for CAT IV 600V, CAT III 1000V, Class 2, Double insulation
- Opens up to 45mm for a wide range of applications
- Designed with grooved housing for superior grip
- Non-contact voltage tester integrated into the clamp
- Includes (3) AAA batteries required for operation
- AC Current Measurement Resolution: 1000A
- AC Voltage Measurement Resolution: 1000V
- Battery Type: AAA x 3
- Brand Name: Jonard
- Capacitance Resolution: 40mF
- Clamp Meter Type: Digital
- Dimensions: 12.25 in x 5.55 in x 2.48 in (31.12 cm x 14.08 cm x 6.29 cm)
- Display Type: Digital
- Functions Measured: AC/DC voltage, resistance, continuity, frequency and capacitance and tests diodes
- Jaw Capacity: 45 mm
- Maximum Operating Temperature: 1832
- Minimum Operating Temperature: -40
- Product Type: Clamp Meter
- Resistance Measurement Resolution: 40MO
- Safety Category: CAT IV 600V, CAT III 1000V, Class 2, Double insulation safety rating
- Weight: 1.7 lbs
Product Description
Technical Information
SDS/TDS
Back to top
Product Description
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
The Jonard Tools ACM-1000 is a digital clamp meter which features automatically ranging true root mean squared (TRMS) technology for increased accuracy.
Jonard Tools ACM-1000 Features:- Tests leads measure AC/DC voltage, resistance, continuity, frequency and capacitance and tests diodes
- Safety rated for CAT IV 600V, CAT III 1000V, Class 2, Double insulation
- Opens up to 45mm for a wide range of applications
- Designed with grooved housing for superior grip
- Non-contact voltage tester integrated into the clamp
- Includes (3) AAA batteries required for operation
- AC Current Measurement Resolution: 1000A
- AC Voltage Measurement Resolution: 1000V
- Battery Type: AAA x 3
- Brand Name: Jonard
- Capacitance Resolution: 40mF
- Clamp Meter Type: Digital
- Dimensions: 12.25 in x 5.55 in x 2.48 in (31.12 cm x 14.08 cm x 6.29 cm)
- Display Type: Digital
- Functions Measured: AC/DC voltage, resistance, continuity, frequency and capacitance and tests diodes
- Jaw Capacity: 45 mm
- Maximum Operating Temperature: 1832
- Minimum Operating Temperature: -40
- Product Type: Clamp Meter
- Resistance Measurement Resolution: 40MO
- Safety Category: CAT IV 600V, CAT III 1000V, Class 2, Double insulation safety rating
- Weight: 1.7 lbs
Technical Information
Brand: Jonard Tools
Weight: 1.906
Country Of Origin: CN
Harmonized Code: 9013.80.9100
UPC Code: 00810053359518
