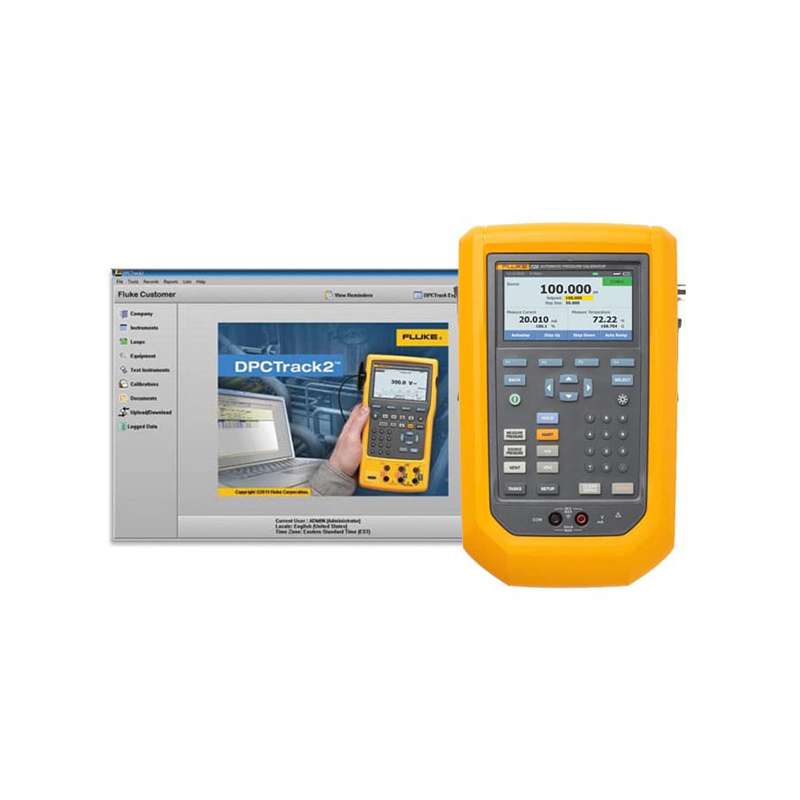

729 Automatic Pressure Calibrator and DPC/TRACK2, Software Bundle
Hisco #:4972518-19816
MFG #:4972518
$
Manufacturer Estimated Lead Time When Not In Stock: 14 days
Minimum Order QTY: 1
Item must be ordered in multiples of 1
Item must be ordered in multiples of 1
The Fluke 4972518 is designed to simplify the pressure calibration process and provide faster, more accurate test results. Combined with the best in class calibration management software DPCTrack2 creates a complete documenting pressure calibration solution for field applications.
Fluke 4972518 Features:- Automatic pressure generation and regulation to 300 psi
- Easily document the process using onboard test templates
- Automatic internal fine-pressure adjustment
- Measure, source and simulate 4 to 20 mA signals
- Brand: Fluke
- Product Type: Pressure Calibrators
- Ranges: 0 mA to 24 mA / 0 V dc to 30 V dc
- Accuracy: 0.01 % ±2 LSD all ranges (at 23°C ±5°C)
- Resolution: 1 µA / 1 mV
- Loop Supply Range: 24 V dc @ 20 mA
- Size: 7.0 cm x 27.9 cm x 17.3 cm (2.75 in x 11.0 in x 6.8 in)
- Control Specification: 0.005 % full scale minimum
Product Description
Technical Information
SDS/TDS
Back to top
Product Description
The Fluke 4972518 is designed to simplify the pressure calibration process and provide faster, more accurate test results. Combined with the best in class calibration management software DPCTrack2 creates a complete documenting pressure calibration solution for field applications.
Fluke 4972518 Features:- Automatic pressure generation and regulation to 300 psi
- Easily document the process using onboard test templates
- Automatic internal fine-pressure adjustment
- Measure, source and simulate 4 to 20 mA signals
- Brand: Fluke
- Product Type: Pressure Calibrators
- Ranges: 0 mA to 24 mA / 0 V dc to 30 V dc
- Accuracy: 0.01 % ±2 LSD all ranges (at 23°C ±5°C)
- Resolution: 1 µA / 1 mV
- Loop Supply Range: 24 V dc @ 20 mA
- Size: 7.0 cm x 27.9 cm x 17.3 cm (2.75 in x 11.0 in x 6.8 in)
- Control Specification: 0.005 % full scale minimum
Technical Information
Brand: Fluke
