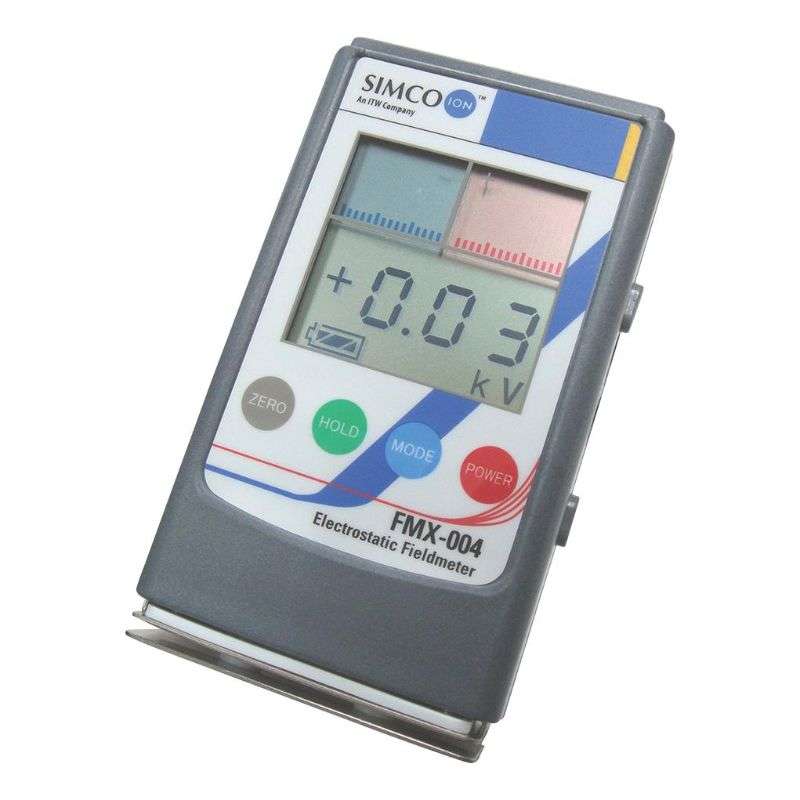

FMX-004™ Electrostatic FieldMeter with Extended Range and Charge Plate

The Simco-Ion 91-FMX-004 is a compact electrostatic Fieldmeter with extended range and charge plate. Designed to be used in applications where there's a need to locate and measure static charges. With it's compact design and four-button operation, the FMX-004 is extremely easy to operate and use in hard to reach areas. The FMX-004 Fieldmeter offers the special feature of measuring both positive and negative polarity charges up to ±30 kV (30,000V) at a distance of 1”. For optimal performance, the measuring device should be calibrated once a year.

• Digital display with color coded bar graphs
• Lightweight, compact design
• Distance ranging lights
• Audible Alarm Feature
• Battery powered with auto shut-off feature
• Analog Output for feeding signals to chart recorder or other external device


• Voltage Rating: 9V
• Power Source: Battery
• Accuracy: ±10%
• Battery Type: 9 V Battery
• Range: 0 to ±1.49 kV (low range); ±1.0 kV to ±30 kV (high range)
• Balance: 0 to ±300V
• Applications: Locating, Measuring Static Charges
