Chip Quik

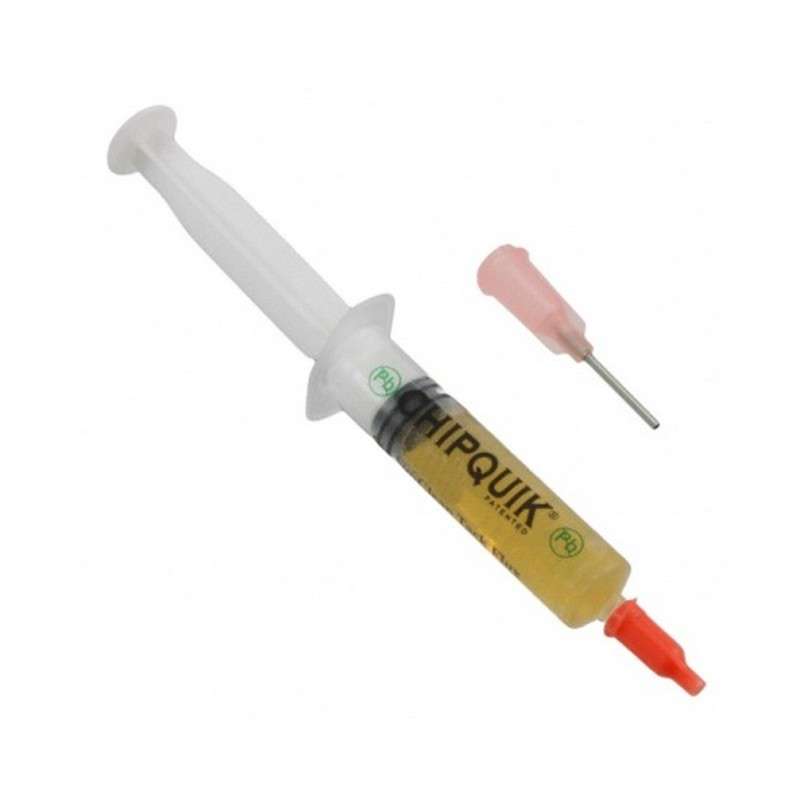

SMD Tack Flux No-Clean 5cc (for Lead-Free Applications) with Plunger and Tip

Hisco #:SMD291NL-11702

MFG #:SMD291NL

$
Manufacturer Estimated Lead Time When Not In Stock: 18 days
Minimum Order QTY: 1
Item must be ordered in multiples of 1
SMD Tack Flux No-Clean 5cc (for Lead-Free Applications) with Plunger and Tip

Click to enlarge
The Chip Quik SMD291NL is a lead free tack flux no clean 5cc syringe used for rework, BGA sphere attachment and soldering flip chip components. Low viscosity synthetic paste flux with a pleasant odor. Chip Quik SMD291NL Specifications:
  • Flux Type: Synthetic No-Clean (for lead free applications)
  • Flux Classification: REL0
  • Packaging: 5cc/5g Syringe
  • Shelf Life (Refrigerated/Unrefrigerated): >24 Months
  • Stencil Life (>8 hours): at 20-50% RH 22-28C (72-82F)
  • Stencil Life (>4 hours): at 50-70% RH 22-28C (72-82F)
  • Stencil Cleaning: Automated stencil cleaning system for both the stencil and misprinted boards. Manual cleaning use isopropyl alcohol (IPA).
  • Storage and Handling: Store refrigerated or at room temperature 3-25C (37-77F). Allow 4 hours for flux to reach an operating temperature of 20-25C (68-77F) before use. DO NOT FREEZE.
  • Includes: 5cc Flux Syringe, Plunger, and Syringe Tip

Product Description

The Chip Quik SMD291NL is a lead free tack flux no clean 5cc syringe used for rework, BGA sphere attachment and soldering flip chip components. Low viscosity synthetic paste flux with a pleasant odor. Chip Quik SMD291NL Specifications:
  • Flux Type: Synthetic No-Clean (for lead free applications)
  • Flux Classification: REL0
  • Packaging: 5cc/5g Syringe
  • Shelf Life (Refrigerated/Unrefrigerated): >24 Months
  • Stencil Life (>8 hours): at 20-50% RH 22-28C (72-82F)
  • Stencil Life (>4 hours): at 50-70% RH 22-28C (72-82F)
  • Stencil Cleaning: Automated stencil cleaning system for both the stencil and misprinted boards. Manual cleaning use isopropyl alcohol (IPA).
  • Storage and Handling: Store refrigerated or at room temperature 3-25C (37-77F). Allow 4 hours for flux to reach an operating temperature of 20-25C (68-77F) before use. DO NOT FREEZE.
  • Includes: 5cc Flux Syringe, Plunger, and Syringe Tip

Technical Information

Brand: Chip Quik
Availability: In Stock
Weight: 0.045
Country Of Origin: CA
Harmonized Code: 3810.90.0000

Additional Resources

Safety Data Sheet
Technical Data Sheet
$
