Konform™ SR Silicone Coating, 1 Gallon
Hisco #:CTSR-1-9700
MFG #:CTSR-1
Manufacturer Estimated Lead Time When Not In Stock: 23 days
Item must be ordered in multiples of 1
This item is hazardous and may be subject to an additional handling fee.

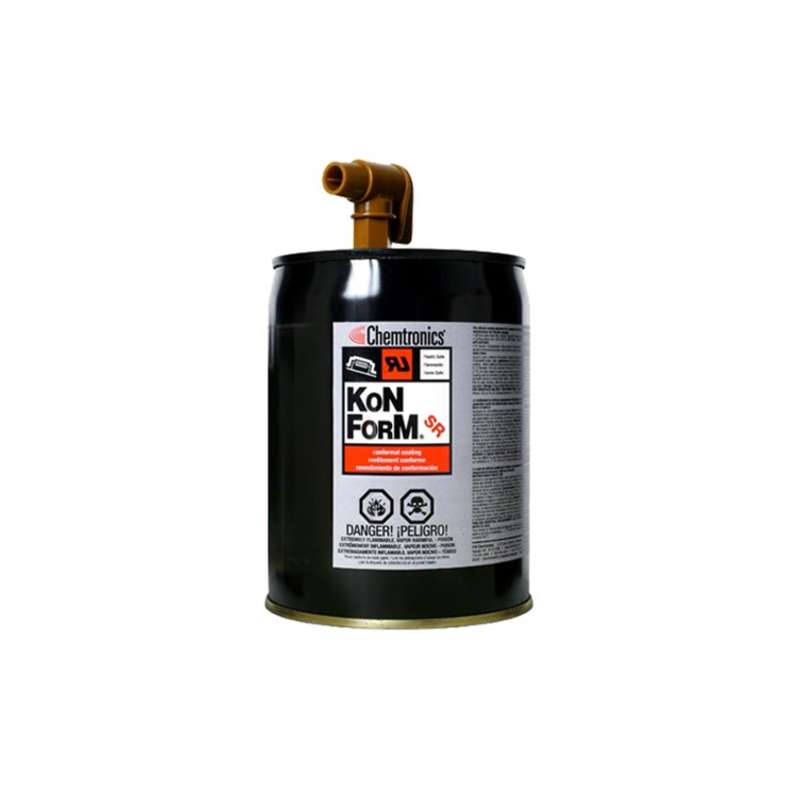

The Chemtronics CTSR-1 is a Konform® SR provides maximum flexibility for extreme temperatures. This transparent coating provides ideal protection for both rigid and flexible printed circuit boards. Cured coatings are hydrolytically stable and retain their physical electrical properties after high temperature and humidity exposure. Konform® SR will not stress delicate circuit components.
The Chemtronics CTSR-1 Features:- Engineered for applications where flexibility and high temperature resistance are required
- Silicone coating stable from -85 degree farad/-64 degree Celsius to 390 degree farad/199 degree Celsius
- High dielectric strength of 1100 volts/mil
- Easily removed with electro-wash® two step or circuitworks® conformal coating remover pen
- Meets mil-i-46058c, type SR
- Compliant to IPC-CC-830a
- RoHS compliant
- UL recognized, file e76307
- Contains a UV indicator for quality control inspection using medium intensity light at 265-335 nm
- Brand: Konform®
- Product Type: Silicone Coating
- Shelf Life: 1yr
- Viscosity: 40± 5 @ 77°FcPs
- VOCs Content: 88%
- Minimum Operating Temperature: -85°F
- Maximum Operating Temperature: +390°F
- Standards Met: MIL-I-46058C Type SR, IPC-CC-830A, UL Recognized File E76307, RoHS Compliant, ANSI, GHS
Product Description
This item is hazardous and may be subject to an additional handling fee.
The Chemtronics CTSR-1 is a Konform® SR provides maximum flexibility for extreme temperatures. This transparent coating provides ideal protection for both rigid and flexible printed circuit boards. Cured coatings are hydrolytically stable and retain their physical electrical properties after high temperature and humidity exposure. Konform® SR will not stress delicate circuit components.
The Chemtronics CTSR-1 Features:- Engineered for applications where flexibility and high temperature resistance are required
- Silicone coating stable from -85 degree farad/-64 degree Celsius to 390 degree farad/199 degree Celsius
- High dielectric strength of 1100 volts/mil
- Easily removed with electro-wash® two step or circuitworks® conformal coating remover pen
- Meets mil-i-46058c, type SR
- Compliant to IPC-CC-830a
- RoHS compliant
- UL recognized, file e76307
- Contains a UV indicator for quality control inspection using medium intensity light at 265-335 nm
- Brand: Konform®
- Product Type: Silicone Coating
- Shelf Life: 1yr
- Viscosity: 40± 5 @ 77°FcPs
- VOCs Content: 88%
- Minimum Operating Temperature: -85°F
- Maximum Operating Temperature: +390°F
- Standards Met: MIL-I-46058C Type SR, IPC-CC-830A, UL Recognized File E76307, RoHS Compliant, ANSI, GHS
