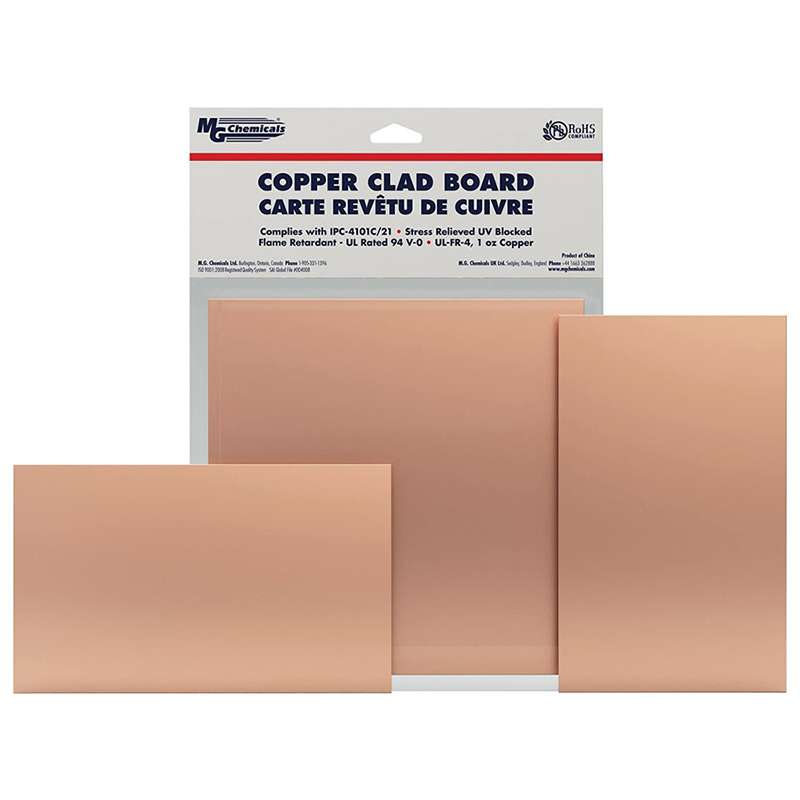

Copper Clad Board, Single-Side, 1/32", 0.5 oz Copper 6" x 9", 500 Series
Hisco #:588-33018
MFG #:588
Item must be ordered in multiples of 5
The MG Chemicals 588 are 500 Series Copper Clad Boards for printed circuit board design are made of a laminate comprising continuous woven glass cloth impregnated with epoxy resin. The material is FR4, which is a flame retardant version of G-10 material.These boards are an ideal material for circuit board design and fabrication, whether for prototyping or small production runs. They are used by PCB manufacturers, design engineers, hobbyists, and student
MG Chemicals 588 Features:- Comply with UL (file number E214381) and IPC-4101C/21
- DICY (dicyandiamide) Cured System
- Easy to cut, with no specialized equipment required
- UV blocking
- Available in 1 oz (1.37 mil, 35 µm) and ½ oz (0.67 mil, 17 µm) copper cladding
- Available in 1/16″ (1.60 mm) and 1/32″ (0.80 mm) laminate thicknesses
- Brand: MG Chemicalsli>
- Series: 500 Series
Product Description
The MG Chemicals 588 are 500 Series Copper Clad Boards for printed circuit board design are made of a laminate comprising continuous woven glass cloth impregnated with epoxy resin. The material is FR4, which is a flame retardant version of G-10 material.These boards are an ideal material for circuit board design and fabrication, whether for prototyping or small production runs. They are used by PCB manufacturers, design engineers, hobbyists, and student
MG Chemicals 588 Features:- Comply with UL (file number E214381) and IPC-4101C/21
- DICY (dicyandiamide) Cured System
- Easy to cut, with no specialized equipment required
- UV blocking
- Available in 1 oz (1.37 mil, 35 µm) and ½ oz (0.67 mil, 17 µm) copper cladding
- Available in 1/16″ (1.60 mm) and 1/32″ (0.80 mm) laminate thicknesses
- Brand: MG Chemicalsli>
- Series: 500 Series
Technical Information
Item must be ordered in multiples of 5
