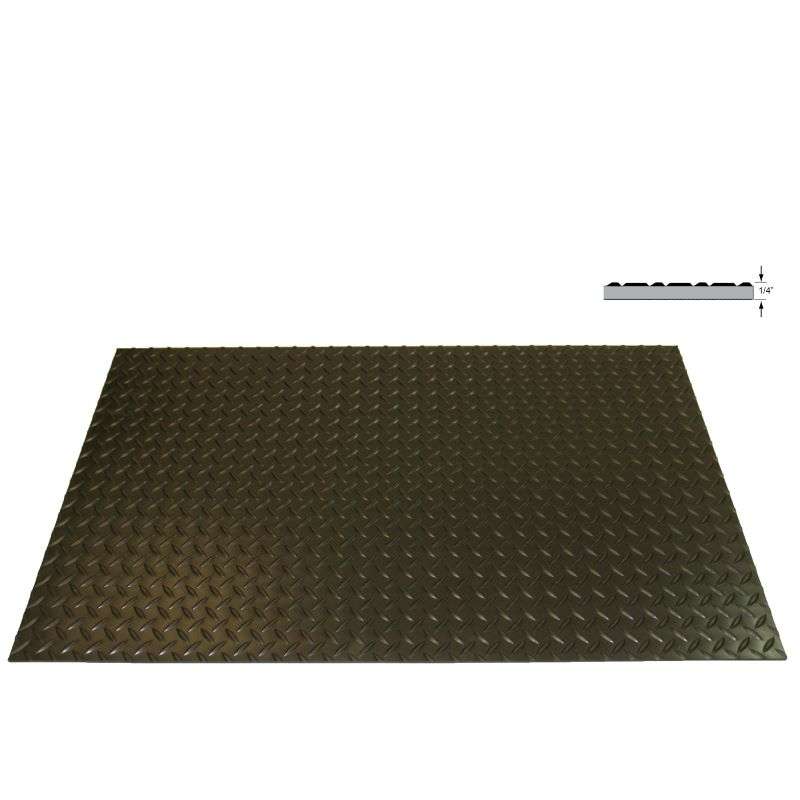

Class 2, Specially Compounded Switchboard Matting, Non-Conductive, Diamond Pattern, 4' wide x 75' long x 1/4" Thick
Hisco #:SBD448X75-41325
MFG #:SB448DX75
Item must be ordered in multiples of 1
The Rhino Mats SB448DX75 is a specially compounded switchboard matting. This non-conductive diamond pattern matting is designed to help prevent electric shock around high voltage electrical equipment, such as fuse boxes, and control panels. Switchboard mats now meet all optional requirements for Ozone Resistance, Flame Resistance, and Oil Resistance. Each switchboard matting is tested to ASTM D178/ANSI J6.7. Certification is engraved on the back of the matting.
Rhino Mats SB448DX75 Features:- Dielectric Test Voltage 30,000 VAC
- Proof Tested over entire surface at 20,000 VAC
- Recommended Maximum Use Voltage 17,000 VAC
- Tensile Strength: 700 psi
- Elongation: 250%
- Moisture Absorption: .08%
- Accelerated Aging: 90% of Original
- Oil Resistance: .5% Volume Increase
Product Description
The Rhino Mats SB448DX75 is a specially compounded switchboard matting. This non-conductive diamond pattern matting is designed to help prevent electric shock around high voltage electrical equipment, such as fuse boxes, and control panels. Switchboard mats now meet all optional requirements for Ozone Resistance, Flame Resistance, and Oil Resistance. Each switchboard matting is tested to ASTM D178/ANSI J6.7. Certification is engraved on the back of the matting.
Rhino Mats SB448DX75 Features:- Dielectric Test Voltage 30,000 VAC
- Proof Tested over entire surface at 20,000 VAC
- Recommended Maximum Use Voltage 17,000 VAC
- Tensile Strength: 700 psi
- Elongation: 250%
- Moisture Absorption: .08%
- Accelerated Aging: 90% of Original
- Oil Resistance: .5% Volume Increase
Technical Information
Item must be ordered in multiples of 1
