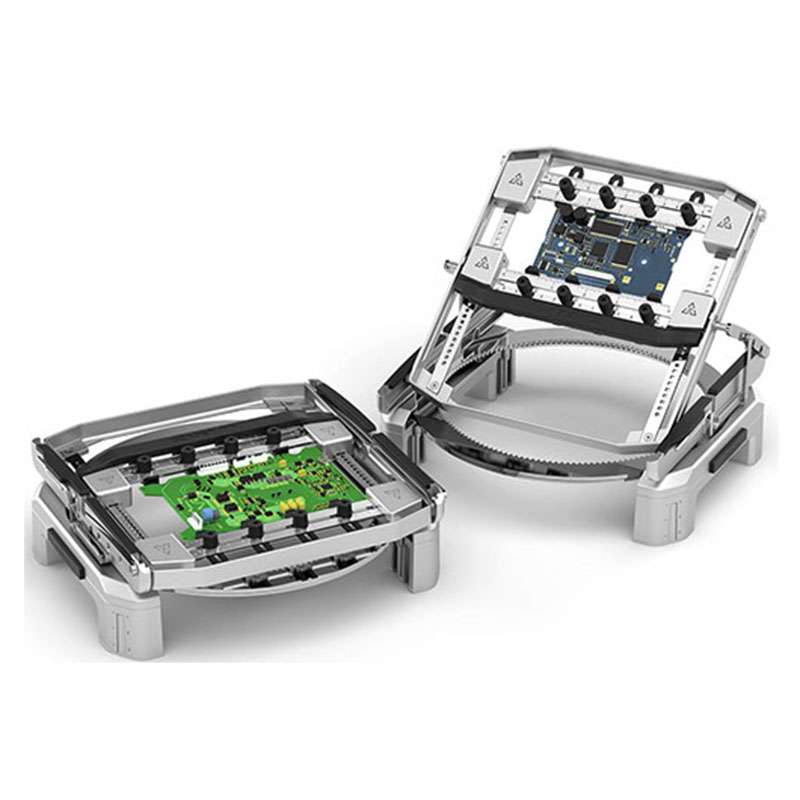

Multiaxis Rotative for PCBs up to 5in x 5in
Hisco #:PSS-A-30348
MFG #:PSS-A
Item must be ordered in multiples of 1
The JBC PSS-A is designed to save time and optimize workflow by enabling quick and precise PCB changes, ensuring proper positioning for repetitive soldering tasks. This versatile support system is fully adaptable to any type of PCB up to 130 x 130 mm (5 x 5 in) through its numerous adjustable elements..
Key features include a horizontal-axis swivel that allows the PCB holder to rotate 180º upside down, with four angular positions available at 25º, 35º, 45º, and 55º. Additionally, the vertical-axis swivel permits positioning the PCB at any desired angle, with the ability to rotate in both horizontal and inclined positions. The PSS also offers three different height settings for added flexibility.
When used in combination with the PHSE Preheater, the PSS's built-in slots ensure precise alignment between the board and the preheater, allowing you to consistently heat the same area for optimal results..
Product Description
The JBC PSS-A is designed to save time and optimize workflow by enabling quick and precise PCB changes, ensuring proper positioning for repetitive soldering tasks. This versatile support system is fully adaptable to any type of PCB up to 130 x 130 mm (5 x 5 in) through its numerous adjustable elements..
Key features include a horizontal-axis swivel that allows the PCB holder to rotate 180º upside down, with four angular positions available at 25º, 35º, 45º, and 55º. Additionally, the vertical-axis swivel permits positioning the PCB at any desired angle, with the ability to rotate in both horizontal and inclined positions. The PSS also offers three different height settings for added flexibility.
When used in combination with the PHSE Preheater, the PSS's built-in slots ensure precise alignment between the board and the preheater, allowing you to consistently heat the same area for optimal results..
