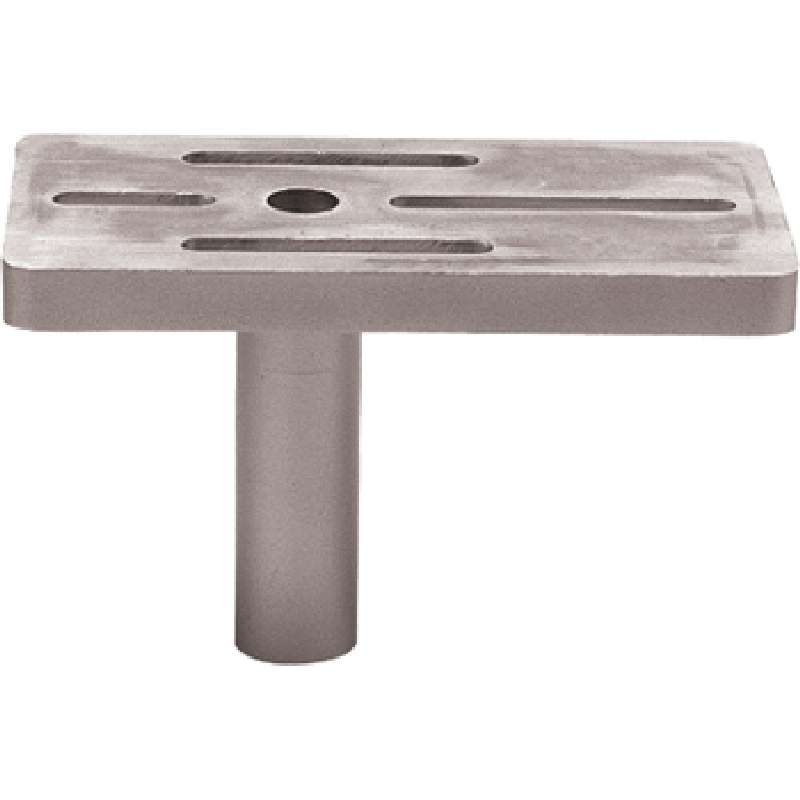

Heavy Duty Head, Recommended for Use with 400 Base
Hisco #:437-38135
MFG #:437
$
Manufacturer Estimated Lead Time When Not In Stock: 13 days
Minimum Order QTY: 1
Item must be ordered in multiples of 1
Item must be ordered in multiples of 1
The PanaVise 437 is a heavy duty fixturing head .
The PanaVise 437 Features:- Recommended For Use With The 400 Heavy Duty Base
- Four "Universal" Slots 0.29" 7.37mm Wide For Attaching Forms, Parts, Etc
- Flat Head is 3" X 6" 76.2mm X 152.4mm
- Shaft is 1" 25.4mm in Diameter and 3.25" 82.5mm Long. Shaft is Drilled and Tapped 1/4-20 Screw Included For Permanently Securing To Base
- Height Bottom Of Shaft To Top Of Head: 4" 101.6mm, Weight: 0.86 Lbs. 0.4kg.
- Product Type: Heavy Duty Fixturing Head
- Base Attachment Type: Screw
- Height: 4in
Product Description
Technical Information
Back to top
Product Description
The PanaVise 437 is a heavy duty fixturing head .
The PanaVise 437 Features:- Recommended For Use With The 400 Heavy Duty Base
- Four "Universal" Slots 0.29" 7.37mm Wide For Attaching Forms, Parts, Etc
- Flat Head is 3" X 6" 76.2mm X 152.4mm
- Shaft is 1" 25.4mm in Diameter and 3.25" 82.5mm Long. Shaft is Drilled and Tapped 1/4-20 Screw Included For Permanently Securing To Base
- Height Bottom Of Shaft To Top Of Head: 4" 101.6mm, Weight: 0.86 Lbs. 0.4kg.
- Product Type: Heavy Duty Fixturing Head
- Base Attachment Type: Screw
- Height: 4in
Technical Information
Brand: PanaVise
Weight: 0.85
Country Of Origin: US
Harmonized Code: 8205.70.0010
UPC Code: 729315437003
$
