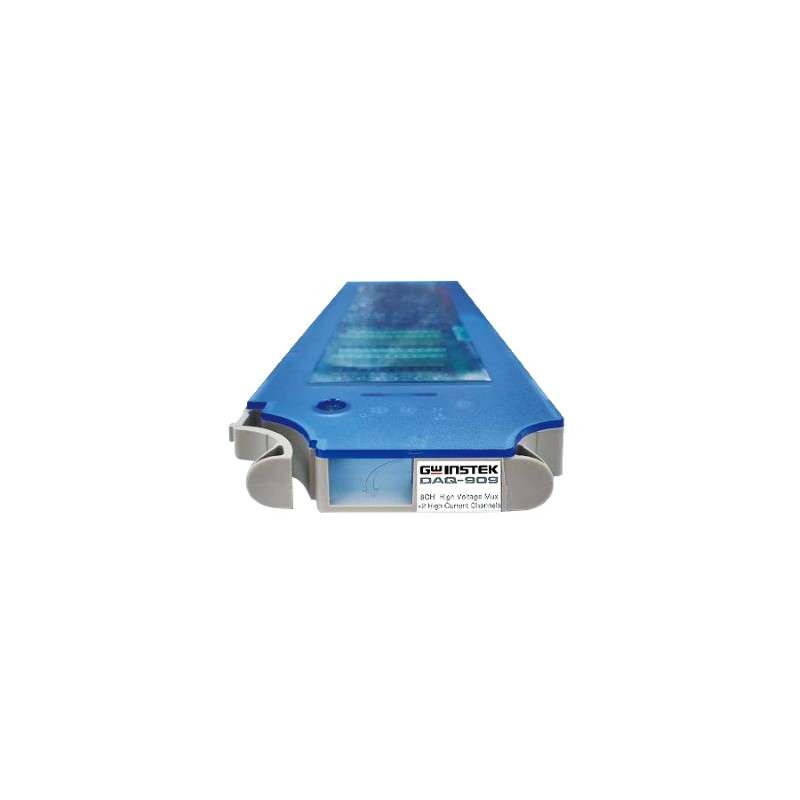

8+2 Channel High Voltage (DC 600V) High Current (2A) Multiplexer
Hisco #:DAQ-909-50297
MFG #:DAQ-909
Item must be ordered in multiples of 1
Instek DAQ-909 Multiplexer Module 8+2 Channels
Features and Specifications
- 3ms switching speed
- DC voltage 600V, current 2A
- 2-wire and 4-wire scanning
- Additional 2 channels can directly measure current (2A/per channel)
The DAQ-909 module is a multiplexer specially designed for high voltage, providing 8 channels for DC 600V / AC 400Vrms voltage measurement. The additional 2 current input channels can be used for AC and DC current measurement, external shunt resistors are not required (maximum 2A / per channel).
The built-in digital multimeters of DAQ-9600 data acquisition system mainframe can be connected and used via DAQ-900, DAQ-901, DAQ-903 and DAQ-909 multiplexers (all except DAQ-904).
DAQ-909 DMM Functions Supported
- AC/DC voltage
- AC/DC current
- Frequency/Period
- 2 and 4 wire resistance
- Thermocouple
- 2 and 4 wire RTD
- Transistor
Product Description
Instek DAQ-909 Multiplexer Module 8+2 Channels
Features and Specifications
- 3ms switching speed
- DC voltage 600V, current 2A
- 2-wire and 4-wire scanning
- Additional 2 channels can directly measure current (2A/per channel)
The DAQ-909 module is a multiplexer specially designed for high voltage, providing 8 channels for DC 600V / AC 400Vrms voltage measurement. The additional 2 current input channels can be used for AC and DC current measurement, external shunt resistors are not required (maximum 2A / per channel).
The built-in digital multimeters of DAQ-9600 data acquisition system mainframe can be connected and used via DAQ-900, DAQ-901, DAQ-903 and DAQ-909 multiplexers (all except DAQ-904).
DAQ-909 DMM Functions Supported
- AC/DC voltage
- AC/DC current
- Frequency/Period
- 2 and 4 wire resistance
- Thermocouple
- 2 and 4 wire RTD
- Transistor
