4X8 TWO-WIRE MATRIX MODULE
Hisco #:DAQ-904-50297
MFG #:DAQ-904
Item must be ordered in multiples of 1

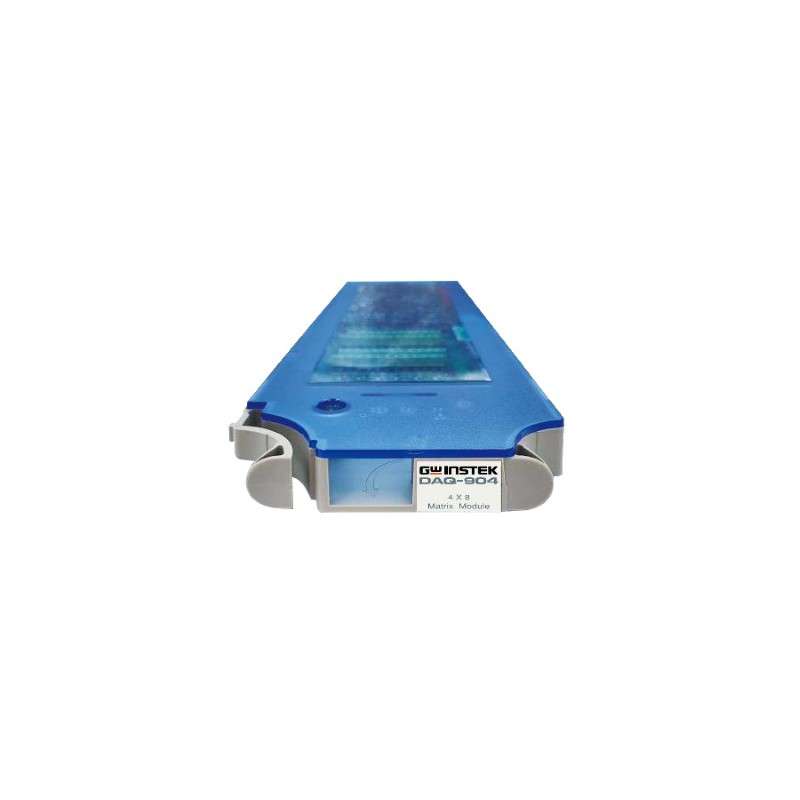

Instek DAQ-904 Two-Wire 4X8 Matrix Module
Features and Specifications
- The switching speed 3ms
- 32 2-wire intersections
- 300 V, 1 A switching
- Up to 96 crosspoints (3 slots)
DAQ-904 module can provide the most flexible connection path between your DUT and the test system, allowing different test instruments to be connected to multiple points on the DUT at the same time. DAQ-904 can connect the rows and columns of multiple modules to build larger matrices, such as 8 x 8, 4 x 16...etc. Up to 96 crosspoints can be built in a single instrument.
Product Description
Instek DAQ-904 Two-Wire 4X8 Matrix Module
Features and Specifications
- The switching speed 3ms
- 32 2-wire intersections
- 300 V, 1 A switching
- Up to 96 crosspoints (3 slots)
DAQ-904 module can provide the most flexible connection path between your DUT and the test system, allowing different test instruments to be connected to multiple points on the DUT at the same time. DAQ-904 can connect the rows and columns of multiple modules to build larger matrices, such as 8 x 8, 4 x 16...etc. Up to 96 crosspoints can be built in a single instrument.
