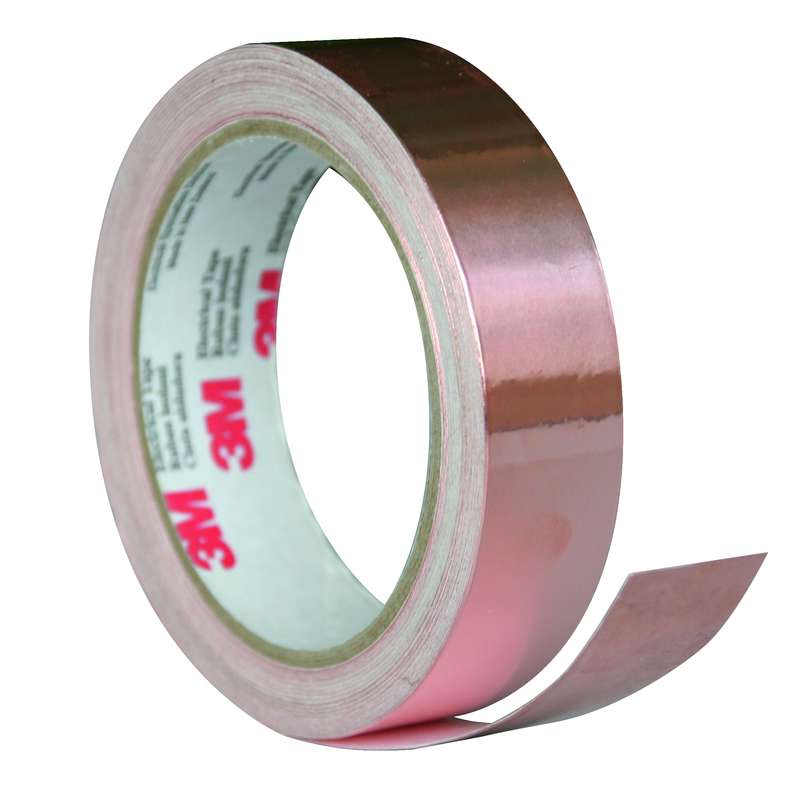

3M™ EMI Copper Foil Shielding Tape 1181, 3/4 in x 18 yd (19,05 mm x 16,5 m), 12 per case
Hisco #:00054007274698-31185
MFG #:7100084399
Manufacturer Estimated Lead Time When Not In Stock: 53 days
Item must be ordered in multiples of 1
3M™ Copper Foil EMI Shielding Tape 1181 is a conductive adhesive shielding tape that is designed for applications that require reliable, point to point electrical contact. It comes on a removable liner for easy die cutting and handling. The tape is rated for 600V dry applications.
3M™ EMI Shielding Tape 1181 has a deadsoft, copper foil backing with a pressure sensitive, electrically conductive, acrylic adhesive that ensures firm adherence. The copper foil backing of the tape offers excellent resistance against oxidation and discoloration. The conductive particles in the adhesive offer low resistance between the substrate and the backing. This flame retardant tape is designed for grounding and EMI shielding in equipment, components and shielded rooms. UL Listed and RoHS 2011/65/EU Compliant.
3M 7100084399 Features:- Unique adhesive creates secure contact with the application surface
- Suitable for EMI shielding, grounding and static charge draining
- Flame-retardant
- Rated for 600V applications
- UL Listed and RoHS 2011/65/EU Compliant
- Backing Material: Foil, Copper, Flat
- Material: Copper Foil
- Package Quantity: 12 RLS
- Part Number: 1181-3/4"X18YD
- Specifications: UL Recognized, RoHS 2011/65/EUN/A
- Width: 0.75 in
Product Description
3M™ Copper Foil EMI Shielding Tape 1181 is a conductive adhesive shielding tape that is designed for applications that require reliable, point to point electrical contact. It comes on a removable liner for easy die cutting and handling. The tape is rated for 600V dry applications.
3M™ EMI Shielding Tape 1181 has a deadsoft, copper foil backing with a pressure sensitive, electrically conductive, acrylic adhesive that ensures firm adherence. The copper foil backing of the tape offers excellent resistance against oxidation and discoloration. The conductive particles in the adhesive offer low resistance between the substrate and the backing. This flame retardant tape is designed for grounding and EMI shielding in equipment, components and shielded rooms. UL Listed and RoHS 2011/65/EU Compliant.
3M 7100084399 Features:- Unique adhesive creates secure contact with the application surface
- Suitable for EMI shielding, grounding and static charge draining
- Flame-retardant
- Rated for 600V applications
- UL Listed and RoHS 2011/65/EU Compliant
- Backing Material: Foil, Copper, Flat
- Material: Copper Foil
- Package Quantity: 12 RLS
- Part Number: 1181-3/4"X18YD
- Specifications: UL Recognized, RoHS 2011/65/EUN/A
- Width: 0.75 in
Technical Information
Item must be ordered in multiples of 1
