Nitto
Permacel® P-224 Polyamide Film Electrical Tape, 1 in x 36 yd x 2.8 mil, Amber
Hisco #:P224-1-33301
MFG #:P224-1
$
Manufacturer Estimated Lead Time When Not In Stock: 19 days
Minimum Order QTY: 1
Item must be ordered in multiples of 1
Item must be ordered in multiples of 1

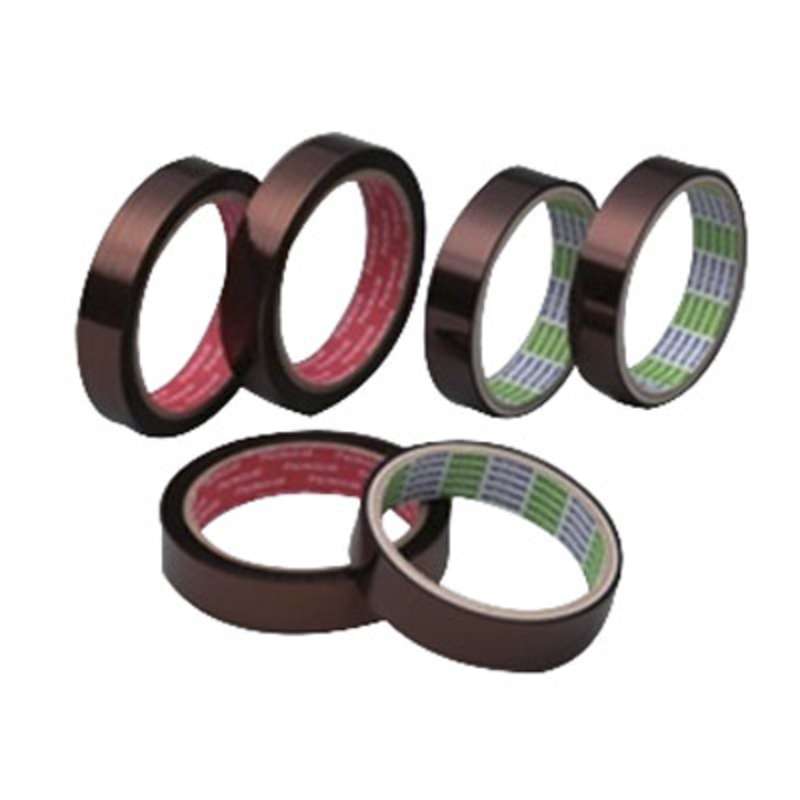

The Nitto P224-1 is a 0.074 mm thick, 1" wide, amber film tape that comes on a 36 yd roll. The conformable tape is puncture, tear and abrasion resistant and great for electrical insulating and wave soldering applications.
Nitto P224-1 Features:- Brand: Kapton®
- Series: P-224
- Product Type: Film Tape
- Backing Material: Polyimide Film
- Adhesive Material: Acrylic
- Material Category: Plastic
- Color: Amber
- Primary Color: Amber
- Width: 1in
- Length: 100ft
- Thickness: 0.074mm
- Adhesion Strength: 4N/10 mm
- Tensile Strength: 63N/10 mm
- Elongation at Break: 85%
- Resistance Properties: Heat Resistant, Freon Resistant, Bake Resistant, Degradation Resistant, Flame Resistant, High Temperature Resistant, Solvent Resistant, Insulation Resistant, Electrical Resistant
- Applications: High Temperature Insulation
- Maximum Operating Temperature: +155°C
Product Description
Technical Information
SDS/TDS
Back to top
Product Description
The Nitto P224-1 is a 0.074 mm thick, 1" wide, amber film tape that comes on a 36 yd roll. The conformable tape is puncture, tear and abrasion resistant and great for electrical insulating and wave soldering applications.
Nitto P224-1 Features:- Brand: Kapton®
- Series: P-224
- Product Type: Film Tape
- Backing Material: Polyimide Film
- Adhesive Material: Acrylic
- Material Category: Plastic
- Color: Amber
- Primary Color: Amber
- Width: 1in
- Length: 100ft
- Thickness: 0.074mm
- Adhesion Strength: 4N/10 mm
- Tensile Strength: 63N/10 mm
- Elongation at Break: 85%
- Resistance Properties: Heat Resistant, Freon Resistant, Bake Resistant, Degradation Resistant, Flame Resistant, High Temperature Resistant, Solvent Resistant, Insulation Resistant, Electrical Resistant
- Applications: High Temperature Insulation
- Maximum Operating Temperature: +155°C
Technical Information
Brand: Nitto
Weight: 0.625
