LOCTITE® Chipbonder® 3563™ Snap Cure, Capillary Flow Epoxy Underfill, 10 mL Syringe

Hisco #:144828-V73-34899

MFG #:144828

This item has a required storage/handling temperature range outside of ambient. Please review the TDS for more information.
This item is a hazardous material and MAY be subjected to extra shipping charges/fees. If the product requires extra charges, ground hazmat items will be charged a $30.00 fee per carton and air hazmat items will be charged a $60 fee per carton.
Made in the USA
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
No Cancel, No Returns. Orders placed for this product are non-refundable and cannot be cancelled.
$
Manufacturer Estimated Lead Time When Not In Stock: 98 days
Minimum Order QTY: 10
Item must be ordered in multiples of 10

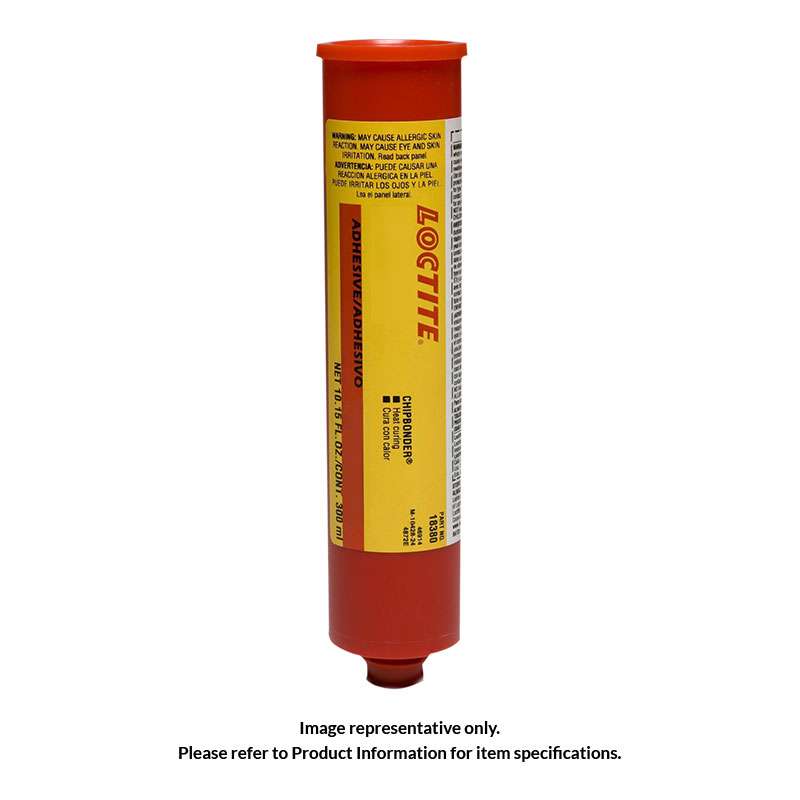

Loctite Chipbonder

Click to enlarge

HazardousThis item is hazardous and may be subject to an additional handling fee.

The Loctite 144828 is a Series 3563 epoxy adhesive .

The Loctite 144828 Specifications:
  • Series: 3563
  • Product Type: Epoxy Adhesive
  • Hardness: 88Shore D
  • Color: White
  • Primary Color: White
  • Physical Form: Liquid
  • Cure Time: >5min
  • Viscosity Measurement: 5000 to 12000mPa/s
  • Chemical Composition: Epoxy Resin, Silica, Epoxy Resin Modifier, 2-Propyl-1h-Imidazole, Imidazole
  • Specific Gravity: 1.52
  • VOCs Content: 8.27g/L
  • Odor: Odorless
  • Cure Type: Heat Cure
  • Dielectric Strength: 33.5kV/mm
  • Elongation at Break: 3%
  • Gel Time: 12h
  • Tensile Strength‎: 10000psi
  • Container Capacity: 10ml
  • Applications: Underfill for Flip Chip Devices

Product Description

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

HazardousThis item is hazardous and may be subject to an additional handling fee.

The Loctite 144828 is a Series 3563 epoxy adhesive .

The Loctite 144828 Specifications:
  • Series: 3563
  • Product Type: Epoxy Adhesive
  • Hardness: 88Shore D
  • Color: White
  • Primary Color: White
  • Physical Form: Liquid
  • Cure Time: >5min
  • Viscosity Measurement: 5000 to 12000mPa/s
  • Chemical Composition: Epoxy Resin, Silica, Epoxy Resin Modifier, 2-Propyl-1h-Imidazole, Imidazole
  • Specific Gravity: 1.52
  • VOCs Content: 8.27g/L
  • Odor: Odorless
  • Cure Type: Heat Cure
  • Dielectric Strength: 33.5kV/mm
  • Elongation at Break: 3%
  • Gel Time: 12h
  • Tensile Strength‎: 10000psi
  • Container Capacity: 10ml
  • Applications: Underfill for Flip Chip Devices

Technical Information

Brand: Loctite
Weight: 0.629
Country Of Origin: US

Additional Resources

Safety Data Sheet
$

Minimum Order QTY: 10
Item must be ordered in multiples of 10
