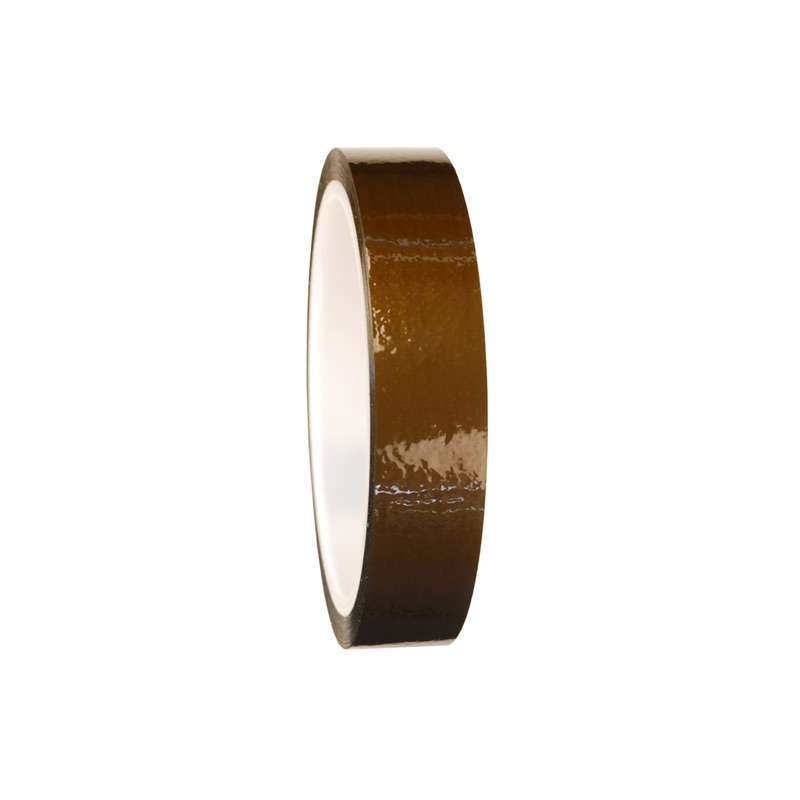

Wescorp Antistatic Polyimide Tape, 3/4 in x 36 yd, 3 in Core
Hisco #:81272-15062
MFG #:81272
$
Manufacturer Estimated Lead Time When Not In Stock: 7 days
Minimum Order QTY: 1
Item must be ordered in multiples of 1
Item must be ordered in multiples of 1
The Wescorp 81272 is an esd high temp polyimide tape .
The Wescorp 81272 Features:- Tape is wound on a plastic core
- ESD protective symbol is marked on the product (located on the core of the roll) per ANSI/ESD S541
- Marked with manufacture information per ANSI/ESD S541 for quality control purposes
- Removal leaves little or no residue
- Static charge generation during unwind and peel off stainless steel plate application is 5 volts @ 50% RH
- 1.0 mil thick (0.001" or 0.0254 mm) Polyimide film (DuPont Kapton® or equivalent)
- 1.4 mil thick (0.0014" or 0.0356 mm) conductive polysiloxide adhesive
- Adhesive surface resistance 1 x 102 to < 1 x 105 ohms per ANSI/ESD STM11.11
- Max Temperature 260°C (500°F)
- For best results, apply to board using a rubber roller
- Brand: Wescorp
- Product Type: Anti-Static Tape
- Printed (Yes/No): No
- Adhesive Material: Polysiloxide
- Backing Material: Polyimide Film
- Material Category: Plastic
- Length: 36yd
- Width: 0.75in
- Thickness: 2.4mil
- Surface Resistance: 1 x 10^8 to <1 x 10^11Ω
- Applications: Masking PCB Gold Features for Wave Soldering and IR Reflow Ovens
- Package Quantity: 1EA
- Maximum Operating Temperature: +500°F
- Special Features: Anti-Static, ESD
- Standards Met: ANSI/ESD S541 ANSI/ESD STM11.11
Product Description
Technical Information
SDS/TDS
Back to top
Product Description
The Wescorp 81272 is an esd high temp polyimide tape .
The Wescorp 81272 Features:- Tape is wound on a plastic core
- ESD protective symbol is marked on the product (located on the core of the roll) per ANSI/ESD S541
- Marked with manufacture information per ANSI/ESD S541 for quality control purposes
- Removal leaves little or no residue
- Static charge generation during unwind and peel off stainless steel plate application is 5 volts @ 50% RH
- 1.0 mil thick (0.001" or 0.0254 mm) Polyimide film (DuPont Kapton® or equivalent)
- 1.4 mil thick (0.0014" or 0.0356 mm) conductive polysiloxide adhesive
- Adhesive surface resistance 1 x 102 to < 1 x 105 ohms per ANSI/ESD STM11.11
- Max Temperature 260°C (500°F)
- For best results, apply to board using a rubber roller
- Brand: Wescorp
- Product Type: Anti-Static Tape
- Printed (Yes/No): No
- Adhesive Material: Polysiloxide
- Backing Material: Polyimide Film
- Material Category: Plastic
- Length: 36yd
- Width: 0.75in
- Thickness: 2.4mil
- Surface Resistance: 1 x 10^8 to <1 x 10^11Ω
- Applications: Masking PCB Gold Features for Wave Soldering and IR Reflow Ovens
- Package Quantity: 1EA
- Maximum Operating Temperature: +500°F
- Special Features: Anti-Static, ESD
- Standards Met: ANSI/ESD S541 ANSI/ESD STM11.11
Technical Information
Brand: Wescorp
Availability: In Stock
Weight: 0.129
Country Of Origin: IE
Harmonized Code: 3919.10.2055
UPC Code: No UPC
