ESD Table Mat Ground Kit, CP2522 Cord, 1 Snap
Hisco #:GK1000-52162
MFG #:GK1000
Item must be ordered in multiples of 1

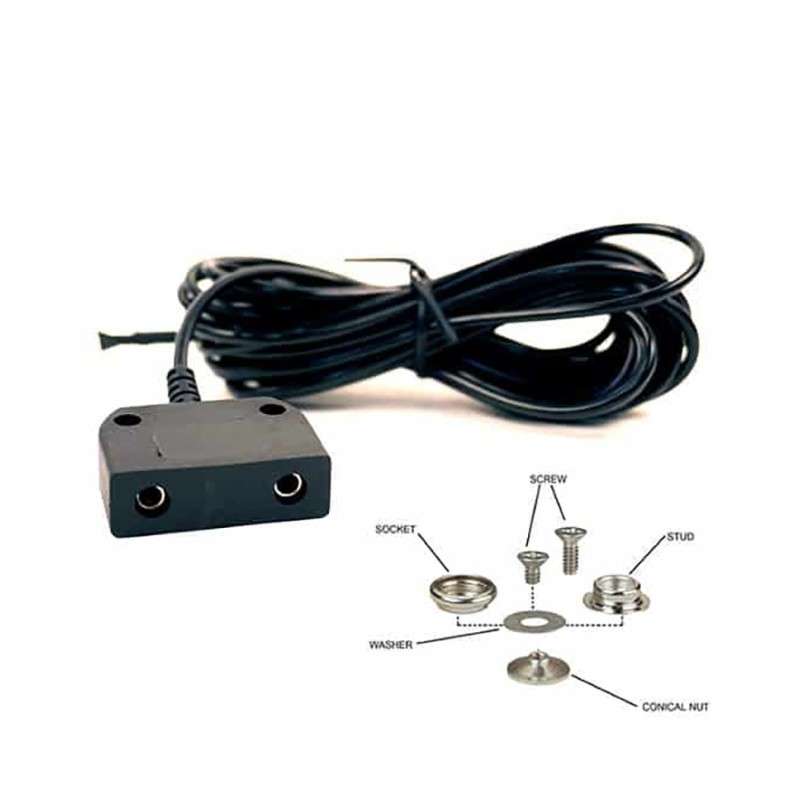

The Transforming Technologies GK1000is an easy to install kit to ground ESD table matting and up to two ESD wrist straps. It offers the hardware required by ANSI/ESD S-6.1 and ANSI/ESD-S20.20 to ground an ESD table mat
The CP2522 is a low profile common point ground with two banana jacks which allow two workers the ability to plug into onto one ground point. The molded connection point houses a 1 meg Ohm 1/4 watt resistor and attaches to table mats via the CS1090 universal snap kit.
Meets or exceeds requirements of ANSI ESD-S20.20 and ANSI/ESD S-6.1.ESD Standards require 1 ground point per mat or every 10ft of ESD matting.
- Includes 15ft low profile ground cord, and a universal snap
- Can be installed with a Philips head screw driver.
- Snap includes two screw lengths for thick or thin material.
Product Description
The Transforming Technologies GK1000is an easy to install kit to ground ESD table matting and up to two ESD wrist straps. It offers the hardware required by ANSI/ESD S-6.1 and ANSI/ESD-S20.20 to ground an ESD table mat
The CP2522 is a low profile common point ground with two banana jacks which allow two workers the ability to plug into onto one ground point. The molded connection point houses a 1 meg Ohm 1/4 watt resistor and attaches to table mats via the CS1090 universal snap kit.
Meets or exceeds requirements of ANSI ESD-S20.20 and ANSI/ESD S-6.1.ESD Standards require 1 ground point per mat or every 10ft of ESD matting.
- Includes 15ft low profile ground cord, and a universal snap
- Can be installed with a Philips head screw driver.
- Snap includes two screw lengths for thick or thin material.
