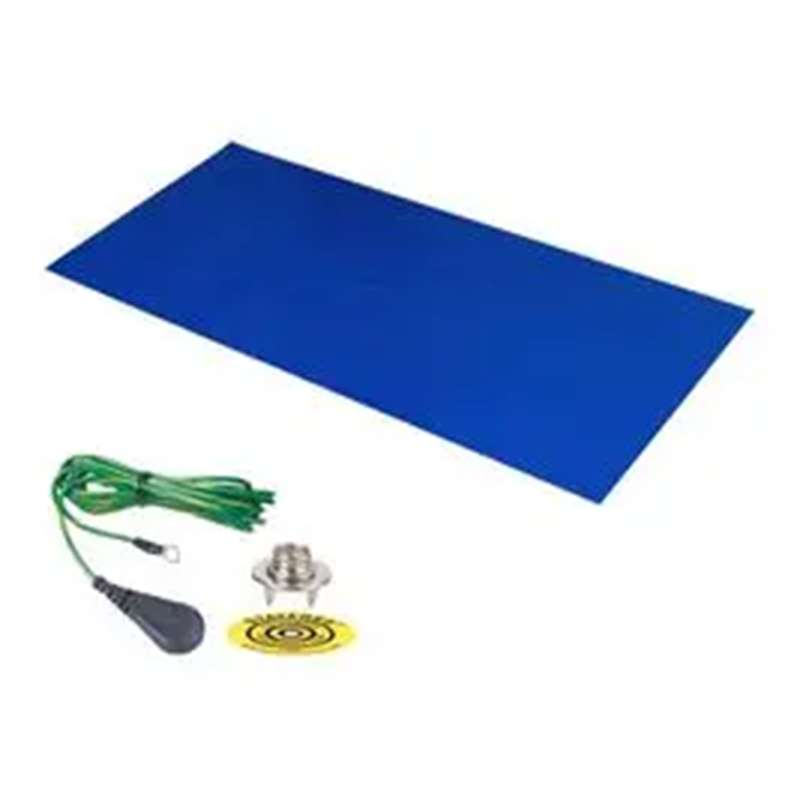

Mat Kit, Rubber, R1 Series, Blue, 24in x 48in x .08in, Smooth
Hisco #:770202-15078
MFG #:770202
$
Manufacturer Estimated Lead Time When Not In Stock: 3 days
Minimum Order QTY: 1
Item must be ordered in multiples of 1
Item must be ordered in multiples of 1
The SCS 770202 is a Dual layer rubber mat kit containing the dual layer rubber mat roll, ground cord and snap kit. May be used in soldering applications with flux and other chemicals. The mat is available in rolls, tray liners, and mat kits.
SCS 770202 Features:- The provided worksurface does not generate a static charge
- Regardless of ambient humidity consistent electrical performance is provided
- Kit includes 1 Table Mat, 1 “LPCGC151M” ground cord, and 2 “3049” Snap Kits
- The dedicated conductive layer reduces the resistance to ground
- Brand: Desco
- Product Type: Rubber Matting
- ESD Safe: Yes
- Surface: Smooth
- Color: Blue
- Dimensions: 24in x 48’
- Thickness: .08in
- Resistivity RTG: < 1 x 109 ohms
- Resistivity RTT: < 1 x 109 ohms
- Decay Time: 0.05s
- Hardness: 60 ± 5 Shore “A”
- Tensile Strength: 500 PSI
- Elongation @ Break: 300%
- Standards Met: ANSI/ESD S20.20 per ANSI/ESD STM4.1-2017 and ESD TR53
- Kit Includes: LPCGC151M ground cord & 3049 snap kits
Product Description
Technical Information
SDS/TDS
Back to top
Product Description
The SCS 770202 is a Dual layer rubber mat kit containing the dual layer rubber mat roll, ground cord and snap kit. May be used in soldering applications with flux and other chemicals. The mat is available in rolls, tray liners, and mat kits.
SCS 770202 Features:- The provided worksurface does not generate a static charge
- Regardless of ambient humidity consistent electrical performance is provided
- Kit includes 1 Table Mat, 1 “LPCGC151M” ground cord, and 2 “3049” Snap Kits
- The dedicated conductive layer reduces the resistance to ground
- Brand: Desco
- Product Type: Rubber Matting
- ESD Safe: Yes
- Surface: Smooth
- Color: Blue
- Dimensions: 24in x 48’
- Thickness: .08in
- Resistivity RTG: < 1 x 109 ohms
- Resistivity RTT: < 1 x 109 ohms
- Decay Time: 0.05s
- Hardness: 60 ± 5 Shore “A”
- Tensile Strength: 500 PSI
- Elongation @ Break: 300%
- Standards Met: ANSI/ESD S20.20 per ANSI/ESD STM4.1-2017 and ESD TR53
- Kit Includes: LPCGC151M ground cord & 3049 snap kits
Technical Information
Brand: SCS
Weight: 4.8
Country Of Origin: CN
Harmonized Code: 4008.11.0000
