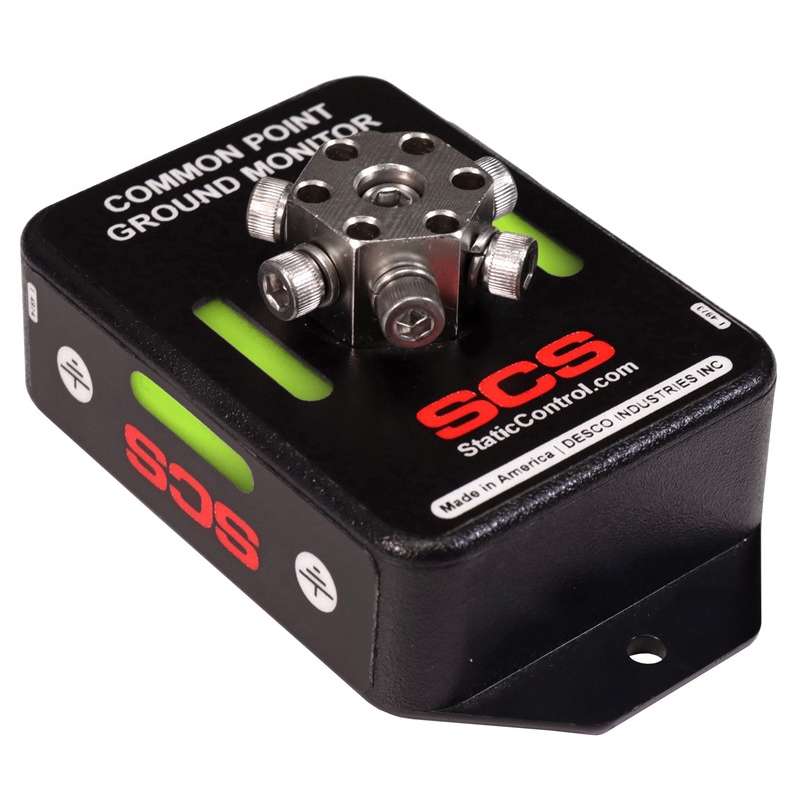

Common Point Ground Monitor, with North American Power Cord
Hisco #:770048-15078
MFG #:770048
$
Manufacturer Estimated Lead Time When Not In Stock: 11 days
Minimum Order QTY: 1
Item must be ordered in multiples of 1
Item must be ordered in multiples of 1
The SCS 770048 confirms the integrity of the resistance path from the common ground point to electrical ground. It is designed in accordance with ESD TR 12-01 to "monitoring equipment ground connections".
SCS 770048 Features:- Monitors the path-to-ground integrity of the outlet
- Identifies a properly wired AC outlet that may be used for grounding purposes of an ESD control plan
- Alarms instantly when failure occurs to alert operators and supervisors of problem
- Provides numerous groundable points
- Brand Name: SCS
- Product Type: Ground Monitor
- Weight: 0.35lbs
- Power Input: 100-240 VAC, 50/60 Hz
- Dimensions: 4.38" L x 2.47" W x 1.00" H
- Operating Temperature: 50 to 95° F (10 to 35° C)
Product Description
Technical Information
SDS/TDS
Back to top
Product Description
The SCS 770048 confirms the integrity of the resistance path from the common ground point to electrical ground. It is designed in accordance with ESD TR 12-01 to "monitoring equipment ground connections".
SCS 770048 Features:- Monitors the path-to-ground integrity of the outlet
- Identifies a properly wired AC outlet that may be used for grounding purposes of an ESD control plan
- Alarms instantly when failure occurs to alert operators and supervisors of problem
- Provides numerous groundable points
- Brand Name: SCS
- Product Type: Ground Monitor
- Weight: 0.35lbs
- Power Input: 100-240 VAC, 50/60 Hz
- Dimensions: 4.38" L x 2.47" W x 1.00" H
- Operating Temperature: 50 to 95° F (10 to 35° C)
Technical Information
Brand: SCS
Weight: 1
Country Of Origin: US
Harmonized Code: 9030.33.0080
