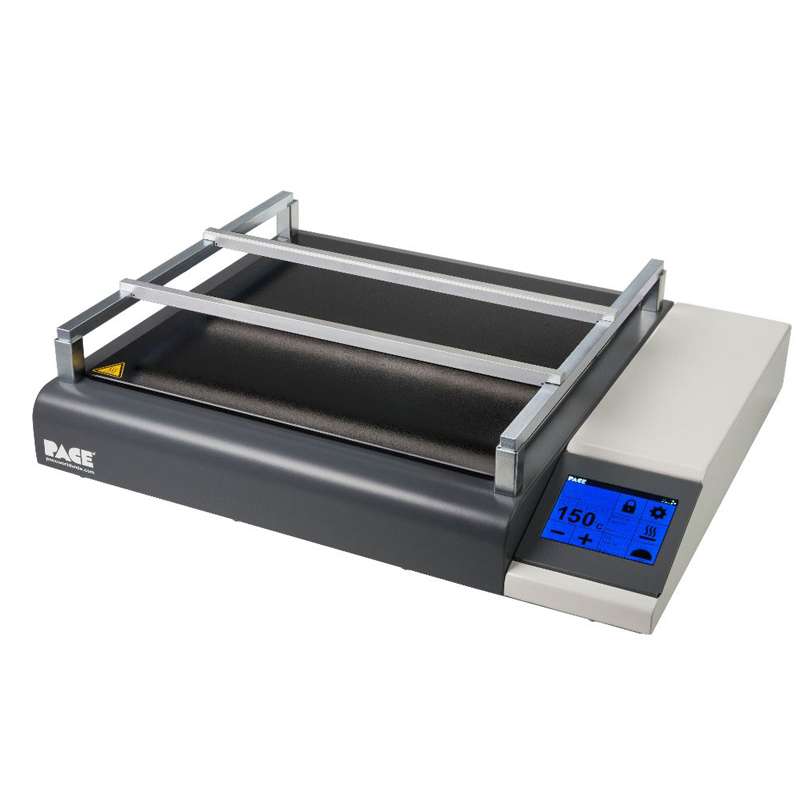

PH100E Low Profile Infrared PCB Preheater, 230V

The Pace 8007-0573 is a high powered non-contact infrared underheating system with an ergonomic, low profile design which permits operators to safely preheat PCB's for fast, efficient soldering.  Pace 8007-0573 Features:

• Promotes rapid solder reflow while preventing heat damage and thermal stress
• Ensures homogenous temperatures across PCB's
• Decreases warping and maintains planarity of the rework site
• Reduces top-side temperature and dwell-time requirements
• Increases soldering iron tip life by allowing lower tip temperatures
• Glass ceramic surface re-emits heat in a uniform manner, providing fast preheating with minimal shadowing
• Large 11.8" x 11.8" heating area provides full board preheat
• Magnetic PCB holder is easily adjusted to a variety of heights and size combinations
• Front and back heating zone temperatures can be independently controlled
• Auto-Off safety system automatically powers down heaters
• Set temperature range: 20° - 200°C (68° - 392°F)

Pace 8007-0573 Specifications:

• Power Requirements:  230 VAC, 50-60Hz
• Weight: 17.6 lbs
• Dimensions: 14" x 17" x 2.4" without board holders
• Heating Elements: 400 Watt Medium Wave IR Emitters (4 Total)
• Thermocouple Inputs: K-Type Thermocouple Inputs (2 Total)
• Independent Temperatures: Offset adjustment of heating zones +/- 50°C (90°F)
