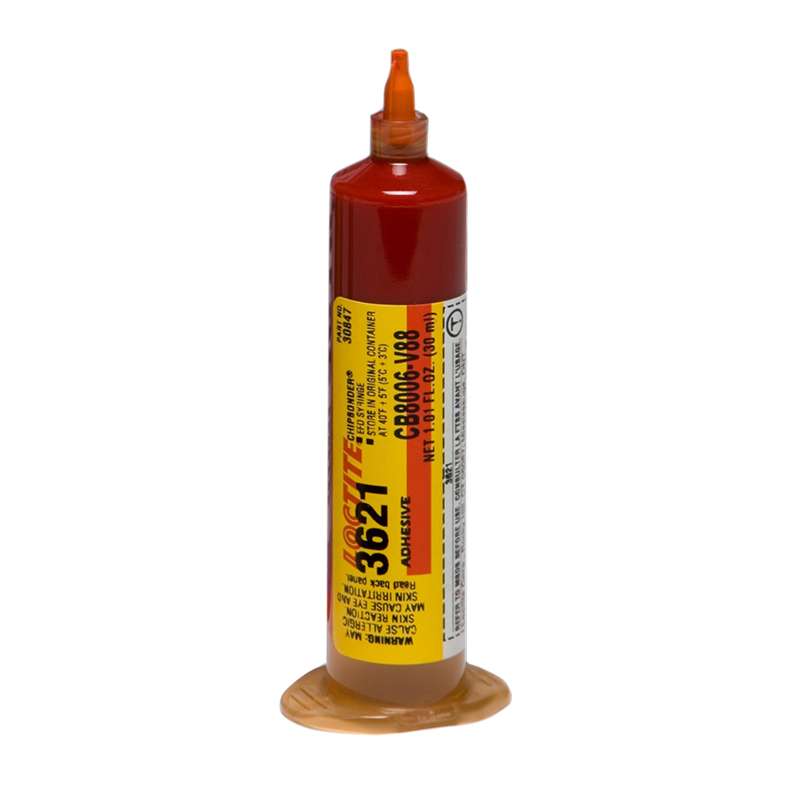

3621 One-Part Chipbonder® Epoxy Adhesive, 30 mL Syringe, Red,
Hisco #:235132-34899
MFG #:235132
$
Manufacturer Estimated Lead Time When Not In Stock: 19 days
Minimum Order QTY: 1
Item must be ordered in multiples of 1
Item must be ordered in multiples of 1
This item is hazardous and may be subject to an additional handling fee.
The Loctite 235132 is a red epoxy adhesive that comes in a 30 ml syringe. It is designed for the bonding of surface mounted devices to printed circuit boards prior to wave soldering.
Loctite 235132 Specifications:- Brand: Chipbonder®
- Series: 3621
- Product Type: Epoxy Adhesive
- Color: Red
- Primary Color: Red
- Physical Form: Paste
- Cure Time: 90 to 120s
- Viscosity Measurement: 0.5 to 3Pa/s
- Shelf Life: 10month
- Chemical Composition: Phenol Polymer With Formaldehyde,Glycidyl Ether, Epichlorohydrin-4,4'-Isopropylidene Diphenol Resin, Amine Adduct, 2,3-Epoxypropyl Neodecanoate, Treated Fumed Silica
- Specific Gravity: 0.95
- VOCs Content: 54.67g/L
- Odor: Epoxy
- Cure Type: Heat Cure
- Dielectric Strength: 40kV/mm
- Maximum Operating Temperature: +150°C
- Minimum Operating Temperature: +90°C
- Container Capacity: 30ml
- Container Type: Syringe
- Applications: Surface Mount Adhesive. Small Parts Bonding
Product Description
Technical Information
SDS/TDS
Back to top
Product Description
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
This item is hazardous and may be subject to an additional handling fee.
The Loctite 235132 is a red epoxy adhesive that comes in a 30 ml syringe. It is designed for the bonding of surface mounted devices to printed circuit boards prior to wave soldering.
Loctite 235132 Specifications:- Brand: Chipbonder®
- Series: 3621
- Product Type: Epoxy Adhesive
- Color: Red
- Primary Color: Red
- Physical Form: Paste
- Cure Time: 90 to 120s
- Viscosity Measurement: 0.5 to 3Pa/s
- Shelf Life: 10month
- Chemical Composition: Phenol Polymer With Formaldehyde,Glycidyl Ether, Epichlorohydrin-4,4'-Isopropylidene Diphenol Resin, Amine Adduct, 2,3-Epoxypropyl Neodecanoate, Treated Fumed Silica
- Specific Gravity: 0.95
- VOCs Content: 54.67g/L
- Odor: Epoxy
- Cure Type: Heat Cure
- Dielectric Strength: 40kV/mm
- Maximum Operating Temperature: +150°C
- Minimum Operating Temperature: +90°C
- Container Capacity: 30ml
- Container Type: Syringe
- Applications: Surface Mount Adhesive. Small Parts Bonding
Technical Information
Brand: Loctite
Weight: 0.115
Country Of Origin: IE
Harmonized Code: 3506.10.9901
UPC Code: No UPC
