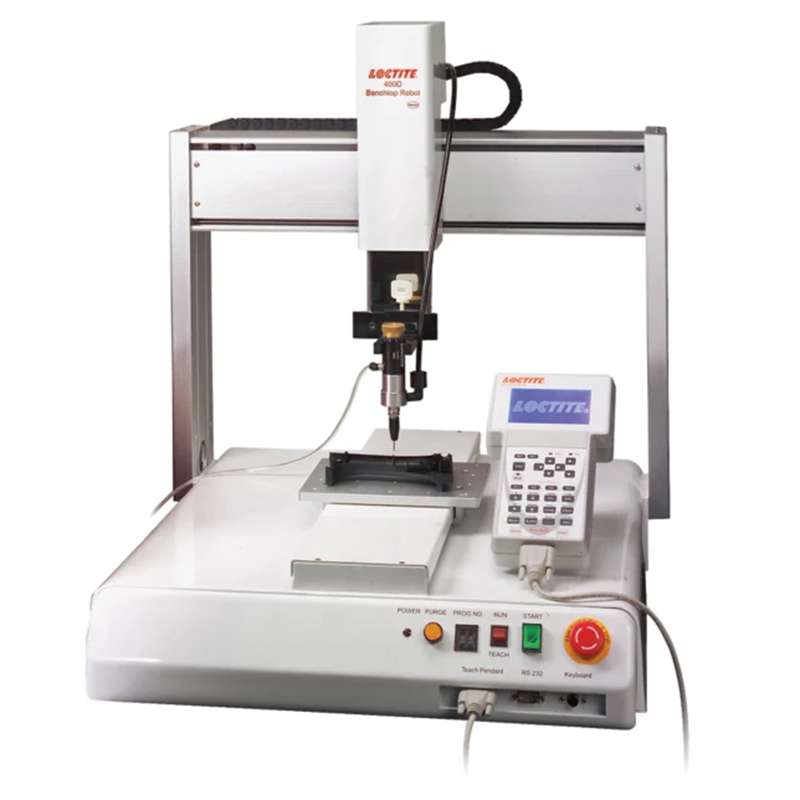

EQ RB40 400 D-Series Metered Benchtop Dispensing Robot

The Loctite 2104795

The LOCTITE® RB40 400 D-Series Benchtop Dispensing Robot stands out for its speed, precision, repeatability, and quality. With a 400 x 400 x 100mm range of operation (X,Y,Z), it seamlessly integrates with various LOCTITE® dispensers, curing systems, and other equipment. Programming is made easy with the simple-to-use Teach Pendant, requiring no prior programming experience!

• High accuracy, speed, and precision
• Integrated solution with plug and play accessories
• No programming experience required
• Wide variety of mounting hardware available
• Included in the box: (1) RB40 400D Robot; (1) syringe holder, 30-55 ml, fixed; (1) external control shorted connector; (1) dispensing cable; (1) mounting screw for syringe holder; (1) power cord; USB memory stick; (1) operating manual

• Key characteristics: Axis: 3 axis
• Maximum speed PTP - X,Y: 600.0 mm/s
• Maximum speed PTP - Z: 320.0 mm/s
• Operating type: Robotic
• Portable weight limitations - tool light source: 5.0 kg
• Portable weight limitations - work surface: 10.0 kg
• Range of operation - X axis: 400.0 mm
• Range of operation - Y axis: 400.0 mm
• Range of operation - Z axis: 100.0 mm
• Used to dispense: Adhesives-all
