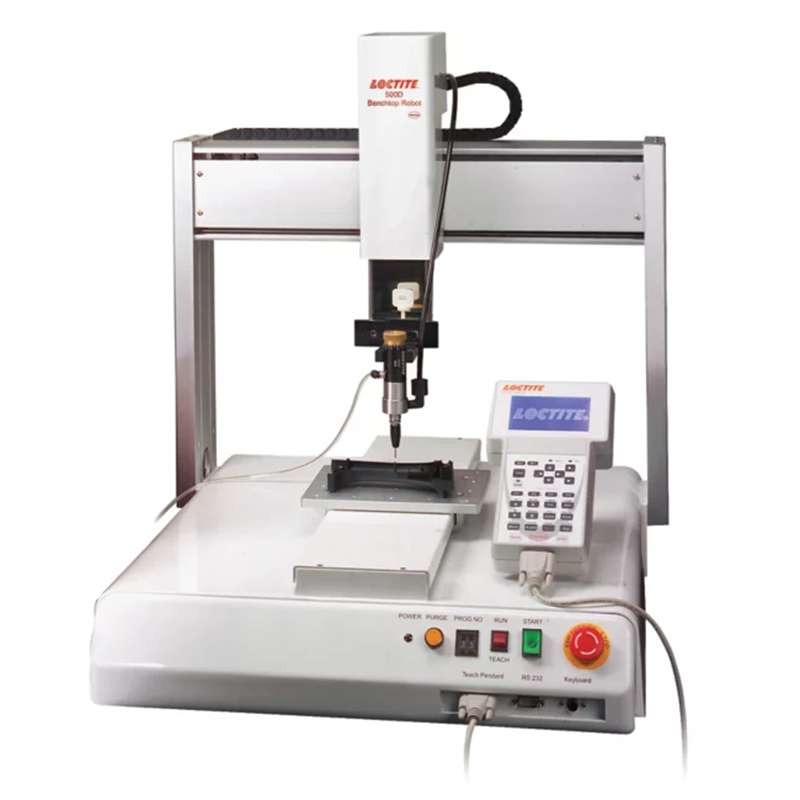

EQ RB40 500D Benchtop Robot

The Loctite 2103369

The LOCTITE® RB40 500 D-Series Benchtop Dispensing Robot stands out for its speed, precision, repeatability, and quality. With a 500 x 500 x 100mm range of operation (X,Y,Z), it seamlessly integrates with various LOCTITE® dispensers, curing systems, and other equipment. Programming is made easy with the simple-to-use Teach Pendant, requiring no prior programming experience!

• High accuracy, speed, and precision
• Integrated solution with plug and play accessories
• No programming experience required
• Wide variety of mounting hardware available
• Included in the box: (1) RB40 500D Benchtop Dispensing Robot, (1) power cord, (1) dispense cable, (1) external interlock bypass connector, (1) Teach Pendant cable, (1) 30–55 ml syringe bracket and mounting screws, (1) CD-ROM operating manual

• Key characteristics: Axis: 3-4 axis
• Maximum speed PTP - X,Y: 600.0 mm/s
• Maximum speed PTP - Z: 320.0 mm/s
• Operating type: Robotic
• Portable weight limitations - tool light source: 5.0 kg
• Portable weight limitations - work surface: 10.0 kg
• Range of operation - X axis: 500.0 mm
• Range of operation - Y axis: 500.0 mm
• Range of operation - Z axis: 100.0 mm
• Used to dispense: Adhesives-all
