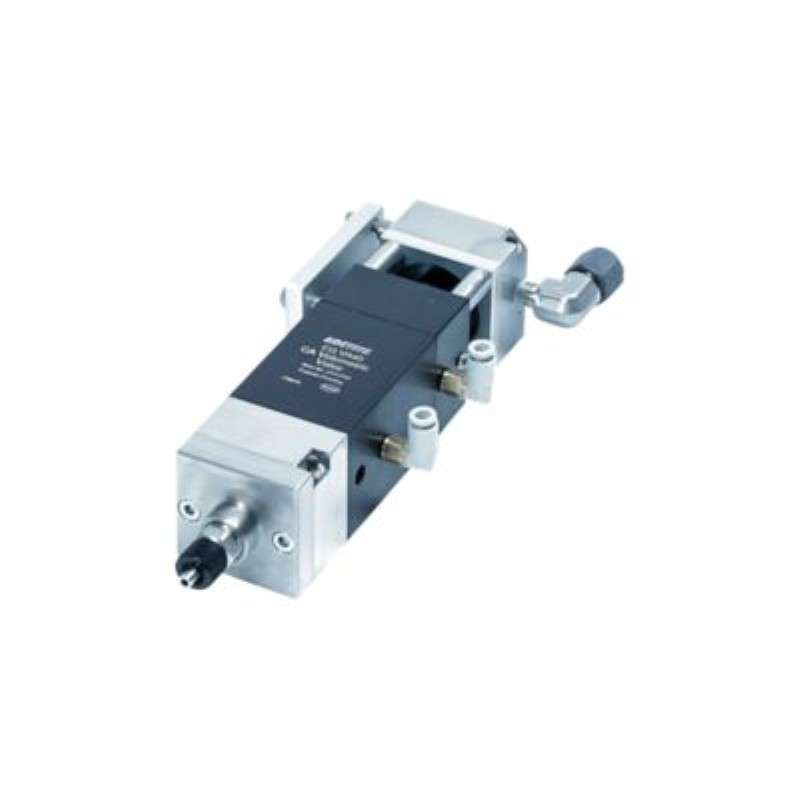

EQ VA40 CA VOLUMETRIC VALVE Standard Dispensing Equipment
Hisco #:2333708-30769
MFG #:2333708
Item must be ordered in multiples of 1
The Loctite 2333708
The LOCTITE® VA40 CA Volumetric Valve is engineered for dispensing precise drops of cyanoacrylate (ranging from 1.5 to 6 microliters) at a maximum cycle rate of 120 per minute. It features a check valve design, enhancing priming speed and reliability. Additionally, its innovative displacement rod and sealing system ensure an extended dispensing lifespan before requiring maintenance.
Loctite 2333708 Features:- Designed for precision, volumetric drop dispensing of LOCTITE cyanoacrylate (CA) adhesives
- Long life seal design (> 1 million cycles) minimizes maintenance requirements
- Quick and reliable priming
- Easily fed from a syringe or pressure reservoir
- Included in the box: (1) VA40 CA Dispense Valve, (1) PTFE lined tubing, 6.4mm OD, 2 m long, (1) air line, 4mm OD, blue, 2 m, (1) air line, 4mm OD, yellow, 2 m, (1) needle sample kit, (1) operating manual
- Air input pressure: 60.0 psi - 100.0 psi
- Applications: Dispensing adhesives
- Dispense patterns: Dots,Drops
- Fluid pressure, Recommended: 30.0 psi - 70.0 psi
- Key characteristics: Stroke adjustment
- Operating type: High Precision,Positive displacement,Volumetric
- Used to dispense: Cyanoacrylates,Light cure acrylics
- Viscosity: 1.0 mPa·s - 10000.0 mPa·s
Product Description
The Loctite 2333708
The LOCTITE® VA40 CA Volumetric Valve is engineered for dispensing precise drops of cyanoacrylate (ranging from 1.5 to 6 microliters) at a maximum cycle rate of 120 per minute. It features a check valve design, enhancing priming speed and reliability. Additionally, its innovative displacement rod and sealing system ensure an extended dispensing lifespan before requiring maintenance.
Loctite 2333708 Features:- Designed for precision, volumetric drop dispensing of LOCTITE cyanoacrylate (CA) adhesives
- Long life seal design (> 1 million cycles) minimizes maintenance requirements
- Quick and reliable priming
- Easily fed from a syringe or pressure reservoir
- Included in the box: (1) VA40 CA Dispense Valve, (1) PTFE lined tubing, 6.4mm OD, 2 m long, (1) air line, 4mm OD, blue, 2 m, (1) air line, 4mm OD, yellow, 2 m, (1) needle sample kit, (1) operating manual
- Air input pressure: 60.0 psi - 100.0 psi
- Applications: Dispensing adhesives
- Dispense patterns: Dots,Drops
- Fluid pressure, Recommended: 30.0 psi - 70.0 psi
- Key characteristics: Stroke adjustment
- Operating type: High Precision,Positive displacement,Volumetric
- Used to dispense: Cyanoacrylates,Light cure acrylics
- Viscosity: 1.0 mPa·s - 10000.0 mPa·s
Technical Information
