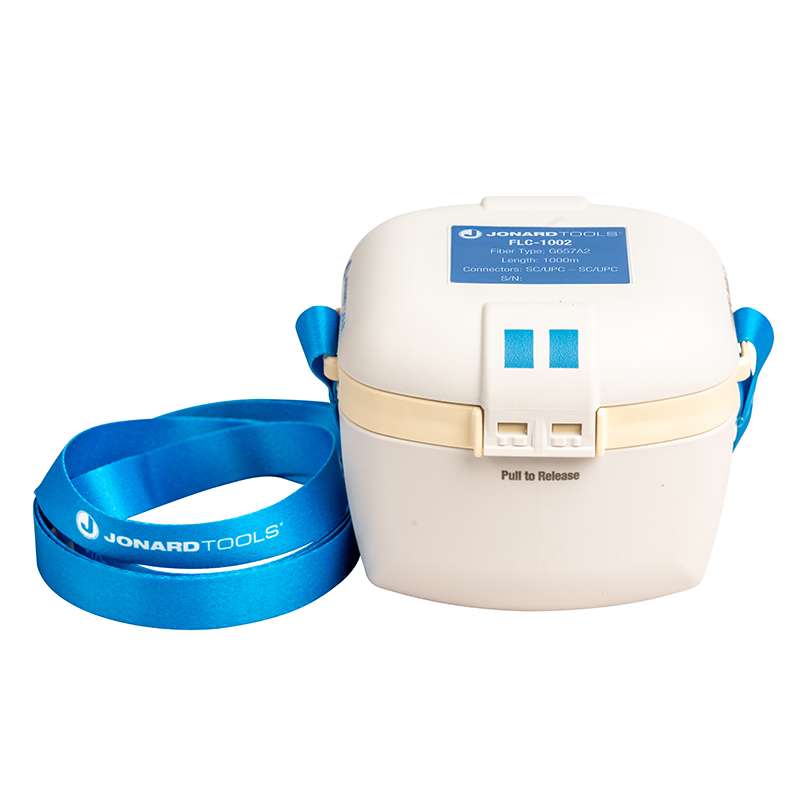

Singlemode Fiber Optic Launch Box, 1000 m, SC/UPC-SC/UPC

The Jonard Tools FLC-1002 launch cable is perfect for eliminating dead zones in reflectometric tests using an OTDR. Designed with unique compact housing and 1000 meters of fiber.

• Compact housing and shoulder strap make this perfect for on-the-go use
• 6.56 ft (2 m) long pigtails are terminated with an SC/UPC connector on one side and an SC/UPC connector on the other side
• Steel, interlocked armor under the fiber jacket protects the fiber from accidental damage
• Polishing types are color coded for quick and easy identification of the launch cable
• Convenient magnet on bottom of housing allows for quick and easy mounting to fiber racks
• 3281 ft (1000 m) length of fiber is perfect for most OTDR testing applications

• Input/Output Length: 4.9 ft (1.5 m)
• Max Insertion Loss @ 1310 nm: ≤ 0.35 dB/km
• Max Insertion Loss @ 1550 nm: ≤ 0.22 dB/km
• Max Insertion Loss @ 800 nm: ≤ 2.50 dB/km
• Max Insertion Loss @ 1300 nm: ≤ 0.70 dB/km
• SM Connector Insertion Loss: ≤ 0.1 dB
• MM Connector Insertion Loss: ≤ 0.15 dB
• Return Loss: RL ≥ 65 dB (APC); RL ≥ 55 dB (UPC)
• Fiber Type: G657A2
