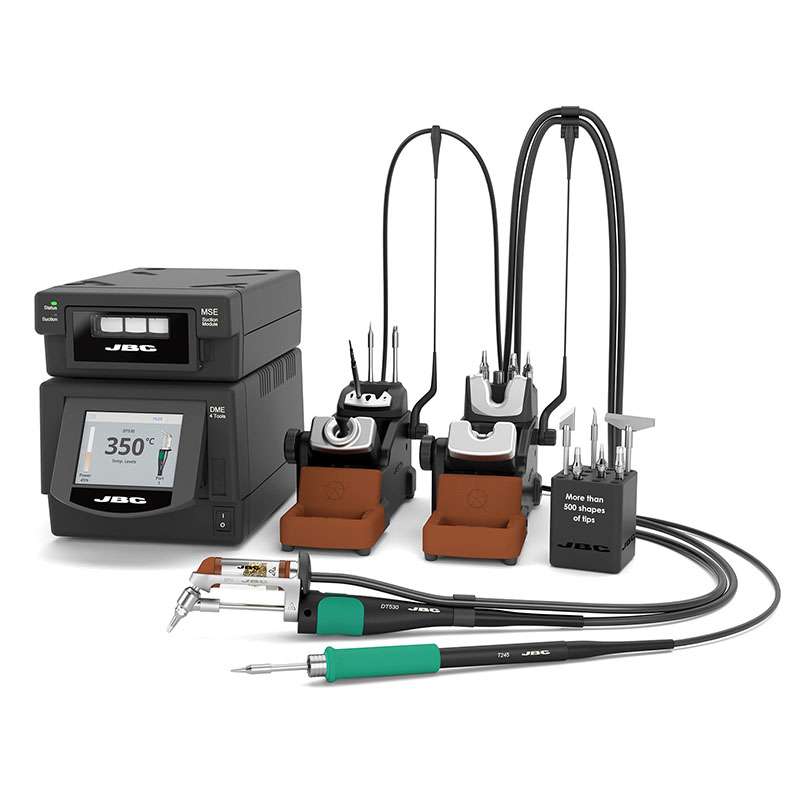

DMSD Station, 2 Tool Rework with DT530, 120V
Hisco #:DMSD-1QA-30348
MFG #:DMSD-1QA
$
Manufacturer Estimated Lead Time When Not In Stock: 9 days
Minimum Order QTY: 1
Item must be ordered in multiples of 1
Item must be ordered in multiples of 1
The JBC DMSD-1QA is a four channel rework system. The DMSD-1QA includes the T245-A general-purpose iron (tips sold separately), DT530-A angled desoldering iron (with D530003 nozzle, 1mm), as well as the MSE-B electric desoldering module.
Please note: This system has an electric pump, the DMSD-1QA does NOT require an external source of compressed air.
JBC DMSD-1QA Features:- Four channel rework system
- Soldering and vacuum functionality
- Includes DME four tool control unit
- Includes T245 general purpose iron (tips sold separately)
- Includes DT530 desoldering iron (includes D530003 nozzle)
- Includes MSE-B electric desoldering module
- Desoldering module does NOT require external source of compressed air
- Compatible with a wide variety of tools and peripherals
- Peak power: 150 W per tool
- Selectable temperature: 90 to 450 ºC / 190 to 840 ºF
- Idle temp. stability (still air): ±1.5ºC / ±3ºF
Meets and exceed IPC J-STD-001F - Temperature accuracy: ±3% using reference cartridge
- Temp. adjustment: ±50ºC / ±90ºF Through station settings menu
- Vacuum: 85 % / 640 mmHg / 25.4 inHg
- Flow rate: 35 SLPM
- Tip-to-ground resistance: <2 ohms
- Tip-to-ground voltage: <2 mV RMS
Product Description
Technical Information
Back to top
Product Description
The JBC DMSD-1QA is a four channel rework system. The DMSD-1QA includes the T245-A general-purpose iron (tips sold separately), DT530-A angled desoldering iron (with D530003 nozzle, 1mm), as well as the MSE-B electric desoldering module.
Please note: This system has an electric pump, the DMSD-1QA does NOT require an external source of compressed air.
JBC DMSD-1QA Features:- Four channel rework system
- Soldering and vacuum functionality
- Includes DME four tool control unit
- Includes T245 general purpose iron (tips sold separately)
- Includes DT530 desoldering iron (includes D530003 nozzle)
- Includes MSE-B electric desoldering module
- Desoldering module does NOT require external source of compressed air
- Compatible with a wide variety of tools and peripherals
- Peak power: 150 W per tool
- Selectable temperature: 90 to 450 ºC / 190 to 840 ºF
- Idle temp. stability (still air): ±1.5ºC / ±3ºF
Meets and exceed IPC J-STD-001F - Temperature accuracy: ±3% using reference cartridge
- Temp. adjustment: ±50ºC / ±90ºF Through station settings menu
- Vacuum: 85 % / 640 mmHg / 25.4 inHg
- Flow rate: 35 SLPM
- Tip-to-ground resistance: <2 ohms
- Tip-to-ground voltage: <2 mV RMS
Technical Information
Brand: JBC
Weight: 28.086
Country Of Origin: ES
Harmonized Code: 8515.11.0000
UPC Code: 8427327658202
$
