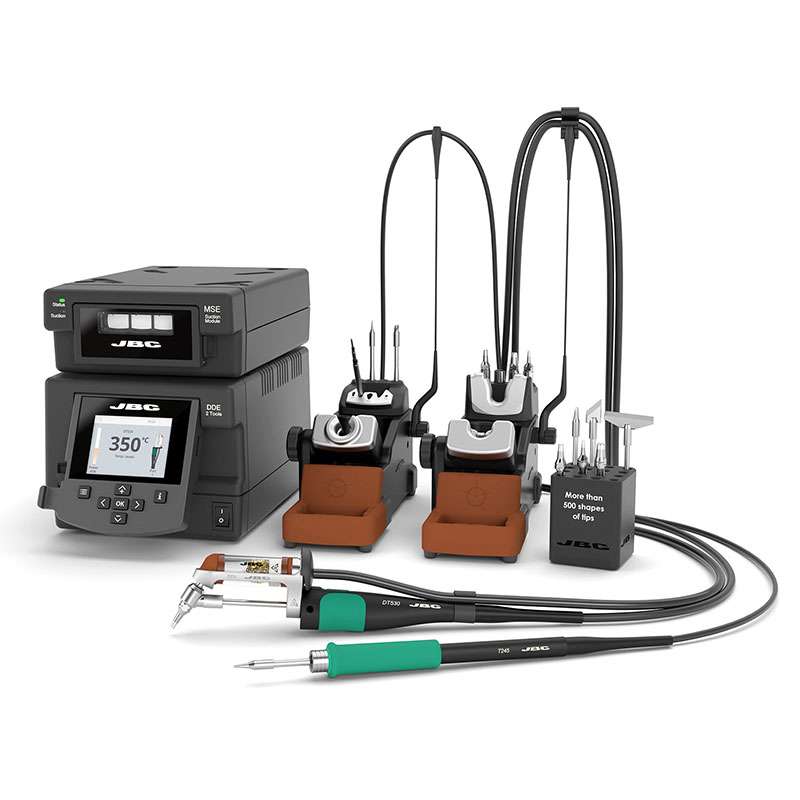

DDSD Station, 2 Tool Rework with DT530, 120V
Hisco #:DDSD-1QA-30348
MFG #:DDSD-1QA
Item must be ordered in multiples of 1
The JBC DDSD-1QA provides a versatile solution for SMD and high-power applications, excelling in desoldering through-hole components and removing excess solder after SMD removal. It is ideal for delivering clean, precise results across various soldering tasks.
It provides the best rework quality thanks to JBC Most Efficient Soldering System, with Intelligent Heat Management to extend tip life and reduce energy consumption.
JBC DDSD-1QA Features:- Two channel rework system
- Soldering and vacuum functionality
- Includes DDE two tool control unit
- Includes T245 general purpose iron (tips sold separately)
- Includes DT530 desoldering iron (includes D530003 nozzle)
- Includes MSE-B electric desoldering module
- Desoldering module does NOT require external source of compressed air
- Compatible with a wide variety of tools and peripherals
- Nominal power: 370W
- Peak power: 150 W per tool
- Selectable temperature: 90 to 450 ºC / 190 to 840 ºF
- Idle temp. stability (still air): ±1.5ºC / ±3ºF Meets and exceeds IPC J-STD-001F
- Vacuum: 85 % / 640 mmHg / 25.4 inHg
- Flow rate: 35 SLPM
- Temperature accuracy: ±3% (using reference cartridge)
- Temp. adjustment: ±50ºC / ±90ºF Through station menu setting
- Tip-to-ground resistance: <2 ohms
- Tip-to-ground voltage: <2 mV RMS
Product Description
The JBC DDSD-1QA provides a versatile solution for SMD and high-power applications, excelling in desoldering through-hole components and removing excess solder after SMD removal. It is ideal for delivering clean, precise results across various soldering tasks.
It provides the best rework quality thanks to JBC Most Efficient Soldering System, with Intelligent Heat Management to extend tip life and reduce energy consumption.
JBC DDSD-1QA Features:- Two channel rework system
- Soldering and vacuum functionality
- Includes DDE two tool control unit
- Includes T245 general purpose iron (tips sold separately)
- Includes DT530 desoldering iron (includes D530003 nozzle)
- Includes MSE-B electric desoldering module
- Desoldering module does NOT require external source of compressed air
- Compatible with a wide variety of tools and peripherals
- Nominal power: 370W
- Peak power: 150 W per tool
- Selectable temperature: 90 to 450 ºC / 190 to 840 ºF
- Idle temp. stability (still air): ±1.5ºC / ±3ºF Meets and exceeds IPC J-STD-001F
- Vacuum: 85 % / 640 mmHg / 25.4 inHg
- Flow rate: 35 SLPM
- Temperature accuracy: ±3% (using reference cartridge)
- Temp. adjustment: ±50ºC / ±90ºF Through station menu setting
- Tip-to-ground resistance: <2 ohms
- Tip-to-ground voltage: <2 mV RMS
