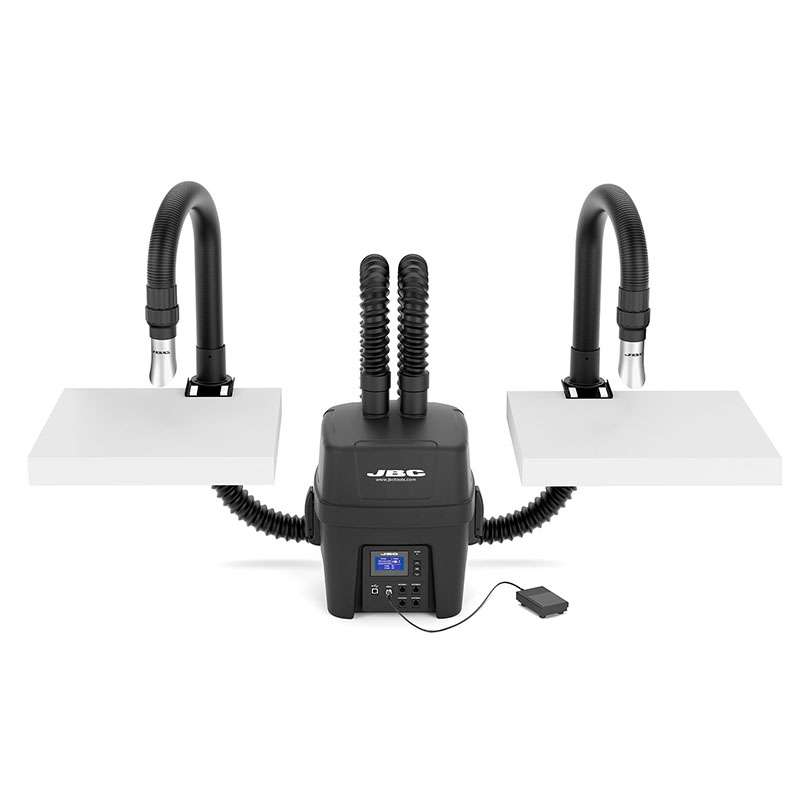

Fume Extractor Kit for 2 Workbenches

TheJBC FAE1-1K2C is the most effective solution to avoid exposure to solder fumes. Fume extraction starts up when the tool is lifted from the stand, operating only when soldering. This function saves power and extends filter life. Each arm offers 80 m³/h aspiration, optimizing fume extraction for two workbenches. It surpasses industry standards, ensuring higher air quality and compliance.

• Includes FAE1110 Pre-filter and FAE1100 Filter (HEPA H13 + Carbon). This three-layered system achieves a certified efficiency of 99.95% in filtering soldering fumes, meeting EN 1822 standards.
• Includes FAE010 (x2) - a flexible extraction hose which connects FAE1 to FAE020 or FAE070 Flexible Arm.
• Includes FAE070 (x2) - a completely flexible arm to be fixed to your workbench by a clamp.
• Includes P405 allowing you to activate the vacuum system without connection to a JBC Station.

• Blower type: Brushless
• Max. flow rate: 180m3/h (106 CFM)
• Max. vacuum: 3.2 KPa (0.46 psi)
• Work areas: 1 or 2
• Noise Level: 55 dB @ 1m
• ESD safe: Meet ANSI/ESD S20.20-2014
• Pre-filter: Medium dust filter M5 (EN 779)
• Compact filters: HEPA filter H13 (EN 1822) Carbon filter
• USB-B: PC communications
• Pedal connector Connections: Station connectors (4x)
• Output peak power: 95W. Fuse 2A (100 V); 110W. Fuse 2A (120 V); 110W. Fuse 1.25A (230 V)
