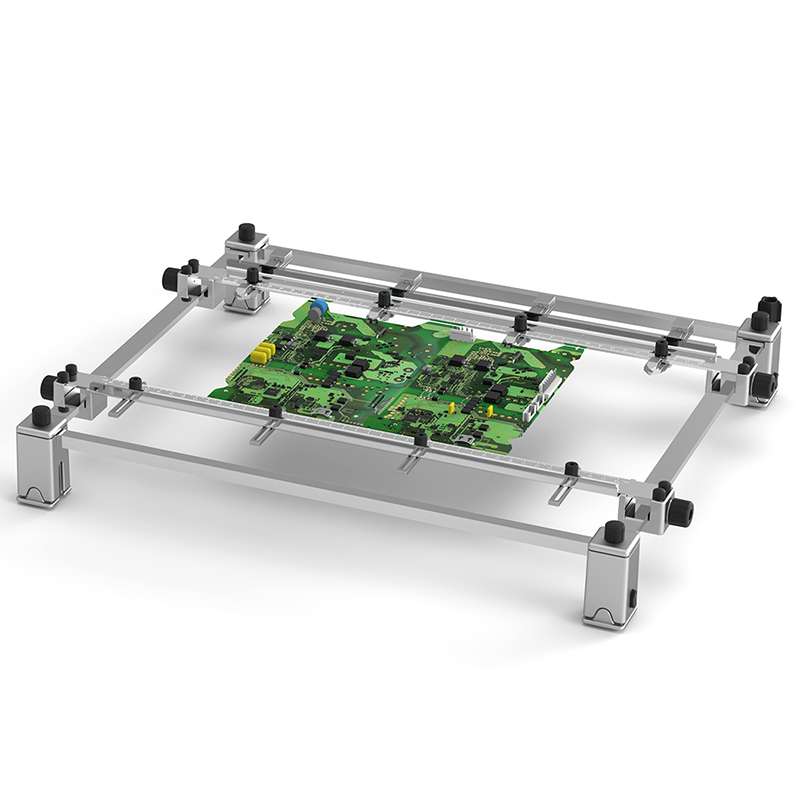

PHBS Large PCB Support, 432 x 514 x 78 mm
Hisco #:PHB-SA-30348
MFG #:PHB-SA
$
Manufacturer Estimated Lead Time When Not In Stock: 7 days
Minimum Order QTY: 1
Item must be ordered in multiples of 1
Item must be ordered in multiples of 1
The JBC PHB-SA allows fast, easy and precise PCB changing, guaranteeing a proper positioning, and is ideal for repetitive soldering jobs. This PCB Support is perfectly adapted to any type of medium / large PCB up to 360 x 277 mm / 14.2 x 10.9 in. by means of its many adjustable elements. Provide up to 3 height sizes.
JBC PHB-SA Specifications:- Series: PHB
- Product Type: PCB Support, Large
- Dimensions: 432 x 514 x 78 mm (17 x 20.2 x 3.1 in)
- Max PCB Size Support: 360 x 277 mm (14.2 x 10.9 in)
- Max PCB Thickness Support: 6 mm (0.236 in)
- High Position: 432 x 514 x 98 mm (17 x 20.2 x 3.9 in)
- Low Position: 432 x 514 x 78 mm (17 x 20.2 x 3.1 in)
- Net Weight: 2.81 kg (6.19 lb)
Product Description
Technical Information
Back to top
Product Description
The JBC PHB-SA allows fast, easy and precise PCB changing, guaranteeing a proper positioning, and is ideal for repetitive soldering jobs. This PCB Support is perfectly adapted to any type of medium / large PCB up to 360 x 277 mm / 14.2 x 10.9 in. by means of its many adjustable elements. Provide up to 3 height sizes.
JBC PHB-SA Specifications:- Series: PHB
- Product Type: PCB Support, Large
- Dimensions: 432 x 514 x 78 mm (17 x 20.2 x 3.1 in)
- Max PCB Size Support: 360 x 277 mm (14.2 x 10.9 in)
- Max PCB Thickness Support: 6 mm (0.236 in)
- High Position: 432 x 514 x 98 mm (17 x 20.2 x 3.9 in)
- Low Position: 432 x 514 x 78 mm (17 x 20.2 x 3.1 in)
- Net Weight: 2.81 kg (6.19 lb)
Technical Information
Brand: JBC
Weight: 10.582
Country Of Origin: ES
Harmonized Code: 8419.89.9585
UPC Code: 8427327405301
$
