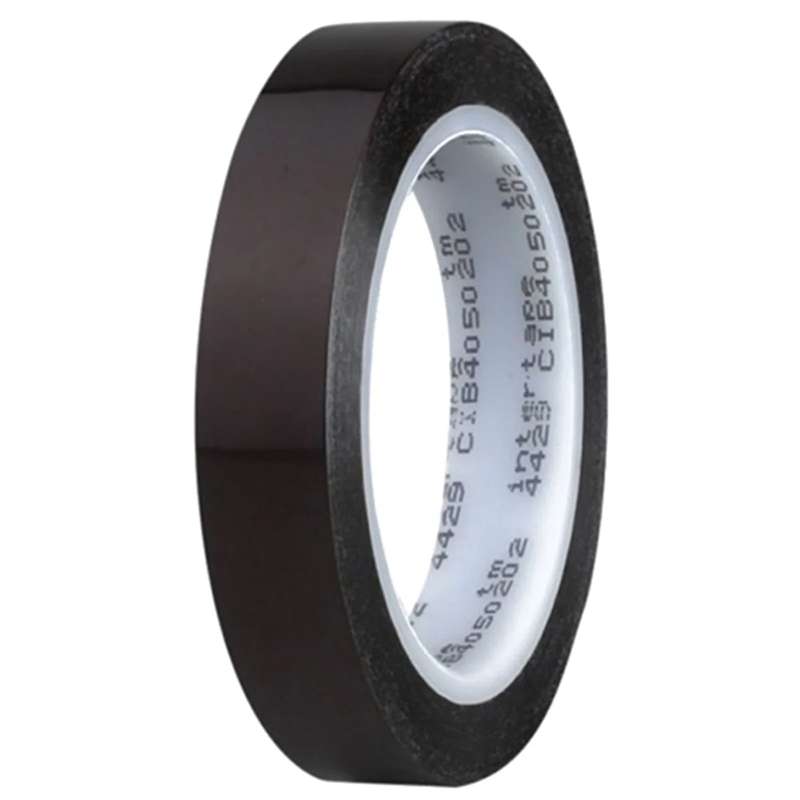

IPG™ 4429 Electrical Tape with Extra Strength Polyimide Backing and Silicone Adhesive, 3/4 in x 36 yd, 2 mil, Amber
Hisco #:4429750
MFG #:04429-00002-00
$
Manufacturer Estimated Lead Time When Not In Stock: 35 days
Minimum Order QTY: 240
Item must be ordered in multiples of 240
Item must be ordered in multiples of 240
The IPG 04429-00002-00 is an extra strength electrical tape with polyimide backing and silicone adhesive offers outstanding thermal resistance and excellent electrical insulating properties. This tape is used where toughness, puncture resistance, extreme resistance to heat, and flame retardance are required.
The IPG 04429-00002-00 Specifications:- Series: 4429
- Product Type: Electrical Tape
- Backing Material: Polyimide Film
- Adhesive Material: Thermosetting Silicone
- Material Category: Plastic
- Color: Amber
- Primary Color: Amber
- Width: 3/4in
- Length: 36yd
- Thickness: 3.5mil
- Adhesion Strength: 30oz/in
- Tensile Strength: 65lb/in
- Elongation at Break: 60%
- Resistance Properties: Thermal Resistant Puncture Resistant Heat Resistant Insulation Resistant Solvent Resistant Moisture Resistant
- Applications: Gold Fingers for Protection in Wave Soldering, Ground Barrier and Phase Insulation in High Performance Torroidal Coils, Outer Wrap on Small Bobbin Wound Coils and on Form Wound Coils for Traction Motors
- Maximum Operating Temperature: +180°C
Product Description
Technical Information
Back to top
Product Description
The IPG 04429-00002-00 is an extra strength electrical tape with polyimide backing and silicone adhesive offers outstanding thermal resistance and excellent electrical insulating properties. This tape is used where toughness, puncture resistance, extreme resistance to heat, and flame retardance are required.
The IPG 04429-00002-00 Specifications:- Series: 4429
- Product Type: Electrical Tape
- Backing Material: Polyimide Film
- Adhesive Material: Thermosetting Silicone
- Material Category: Plastic
- Color: Amber
- Primary Color: Amber
- Width: 3/4in
- Length: 36yd
- Thickness: 3.5mil
- Adhesion Strength: 30oz/in
- Tensile Strength: 65lb/in
- Elongation at Break: 60%
- Resistance Properties: Thermal Resistant Puncture Resistant Heat Resistant Insulation Resistant Solvent Resistant Moisture Resistant
- Applications: Gold Fingers for Protection in Wave Soldering, Ground Barrier and Phase Insulation in High Performance Torroidal Coils, Outer Wrap on Small Bobbin Wound Coils and on Form Wound Coils for Traction Motors
- Maximum Operating Temperature: +180°C
Technical Information
Brand: IPG
Weight: 0.7
Country Of Origin: US
Harmonized Code: 3919.10.2055
$
