HumiSeal® Conformal Coating 1B31, 1 Liter, 6LT/CA

Hisco #:1B31-1L-24944

MFG #:1B31-1L

Made in the USA
No Cancel, No Returns. Orders placed for this product are non-refundable and cannot be cancelled.
$
Manufacturer Estimated Lead Time When Not In Stock: 11 days
Minimum Order QTY: 1
Item must be ordered in multiples of 1

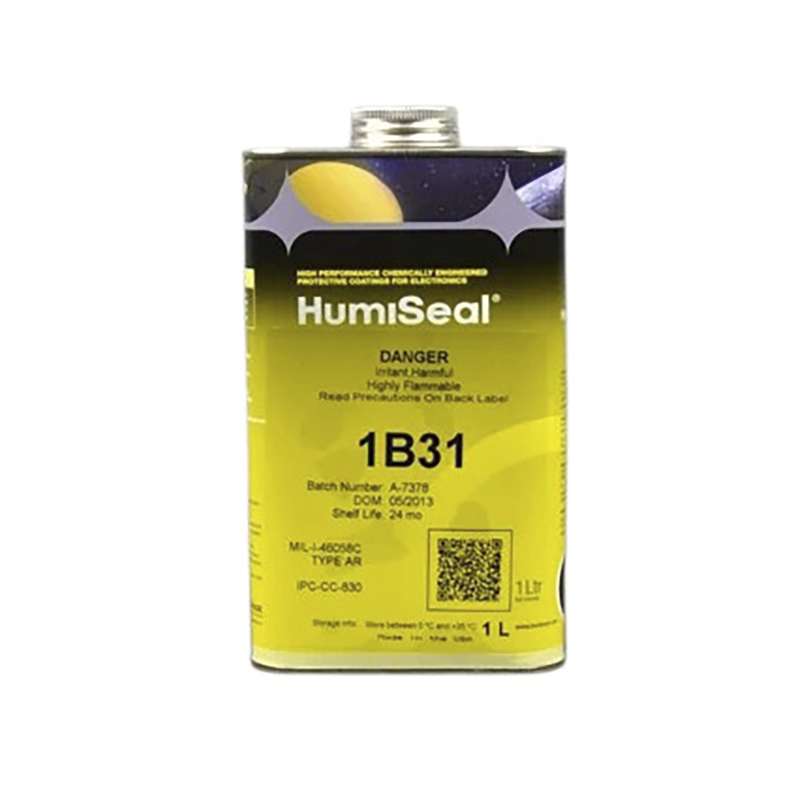

HumiSeal® Conformal Coating 1B31, 1 Liter, 6LT/CA

Click to enlarge

The Humiseal 1B31-1L is a fast drying, single component, acrylic conformal coating that provides excellent moisture and environmental protection for printed circuit assemblies.

Humiseal 1B31-1L Features:
  • Excellent flexibility
  • Fluoresces under UV light for ease of inspection
  • Easily repaired
Humiseal 1B31-1L Specifications:
  • Brand: HumiSeal
  • Container Type: 1 Liter
  • VOC: 592 grams/litre
  • Drying Time to Handle, per Fed-Std-141, Meth. 4061: 10 minutes
  • Recommended Coating Thickness: 25 - 75 microns
  • Recommended Curing Conditions: 24 hrs @ RT or 30 min @ 76°C
  • Time Required to Reach Optimum Properties: 7 days
  • Recommended Thinner (dipping & brushing): HumiSeal Thinner 503
  • Recommended Thinner (spraying): HumiSeal Thinner 521, 521EU
  • Recommened Stripper: HumiSeal Stripper 1080, 1080EU
  • Shelf Life at Room Temperature, DOM: 24 months

Product Description

The Humiseal 1B31-1L is a fast drying, single component, acrylic conformal coating that provides excellent moisture and environmental protection for printed circuit assemblies.

Humiseal 1B31-1L Features:
  • Excellent flexibility
  • Fluoresces under UV light for ease of inspection
  • Easily repaired
Humiseal 1B31-1L Specifications:
  • Brand: HumiSeal
  • Container Type: 1 Liter
  • VOC: 592 grams/litre
  • Drying Time to Handle, per Fed-Std-141, Meth. 4061: 10 minutes
  • Recommended Coating Thickness: 25 - 75 microns
  • Recommended Curing Conditions: 24 hrs @ RT or 30 min @ 76°C
  • Time Required to Reach Optimum Properties: 7 days
  • Recommended Thinner (dipping & brushing): HumiSeal Thinner 503
  • Recommended Thinner (spraying): HumiSeal Thinner 521, 521EU
  • Recommened Stripper: HumiSeal Stripper 1080, 1080EU
  • Shelf Life at Room Temperature, DOM: 24 months

Technical Information

Brand: Humiseal
Weight: 5
Country Of Origin: US
$

Minimum Order QTY: 1
Item must be ordered in multiples of 1
