HumiSeal® 1B73 Protective Acrylic Conformal Coating, 5 L Pail, Clear

Hisco #:1B73-5L-24944

MFG #:1B73-5L

This item is a hazardous material and MAY be subjected to extra shipping charges/fees. If the product requires extra charges, ground hazmat items will be charged a $30.00 fee per carton and air hazmat items will be charged a $60 fee per carton.
Made in the USA
Non-cancellable. Orders for this product cannot be cancelled after the order is placed. But once received, the items may be returned pending prior approval from Hisco customer service.
No Cancel, No Returns. Orders placed for this product are non-refundable and cannot be cancelled.
$
Manufacturer Estimated Lead Time When Not In Stock: 56 days
Minimum Order QTY: 1
Item must be ordered in multiples of 1

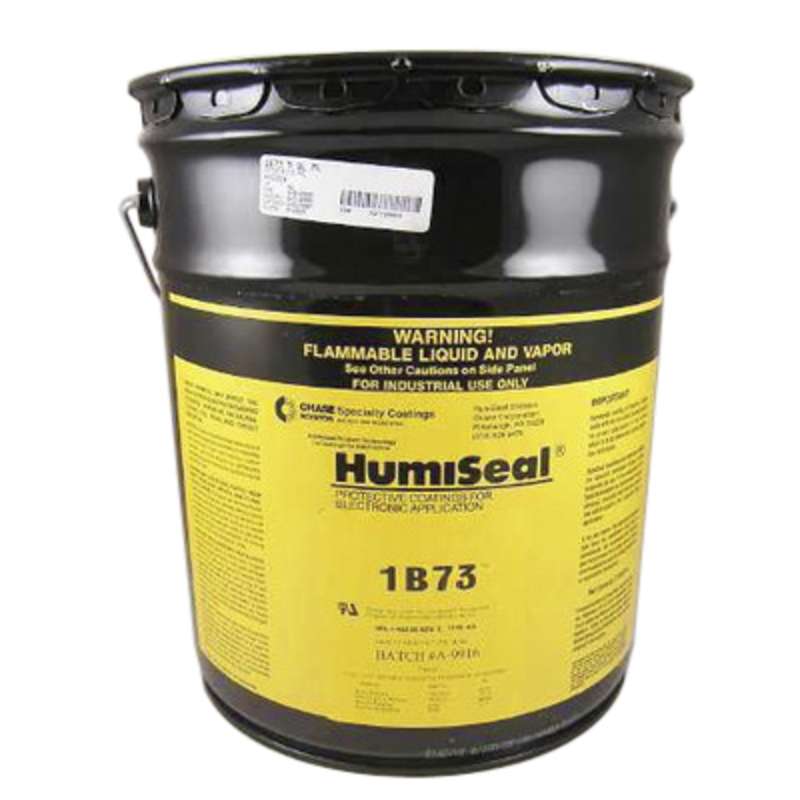

Chase Corporation 1B73-5L

Click to enlarge

HazardousThis item is hazardous and may be subject to an additional handling fee.

The Humiseal 1B73-5L is a single component, fast drying, acrylic coating intended for the use on printed circuit assemblies. HumiSeal 1B73 coating is MIL-I-46058C qualified, IPC-CC-830 and RoHS Directive 2011/65/EU compliant, and recognized under UL File Number E105698.

The Humiseal 1B73-5L Specifications:
  • Product Type: Acrylic Conformal Coating
  • Density: 0.92 ± 0.02g/cm³
  • Shelf Life: 24month
  • Viscosity: 250 ± 20cPs
  • Maximum Solid Content: 29.5 ± 2%
  • Recommended Coating Thickness: 25 to 75μm
  • VOCs Content: 661g/L
  • Minimum Operating Temperature: -65°C
  • Maximum Operating Temperature: +125°C
  • Standards Met: MIL-I-46058C Qualified, IPC-CC-830, RoHS Directive 2002/95/EC Compliant, UL Listed File No. E105698, ASTM D149, ASTM D150-98, ASTM G21, ASTM D1475

Product Description

HazardousThis item is hazardous and may be subject to an additional handling fee.

The Humiseal 1B73-5L is a single component, fast drying, acrylic coating intended for the use on printed circuit assemblies. HumiSeal 1B73 coating is MIL-I-46058C qualified, IPC-CC-830 and RoHS Directive 2011/65/EU compliant, and recognized under UL File Number E105698.

The Humiseal 1B73-5L Specifications:
  • Product Type: Acrylic Conformal Coating
  • Density: 0.92 ± 0.02g/cm³
  • Shelf Life: 24month
  • Viscosity: 250 ± 20cPs
  • Maximum Solid Content: 29.5 ± 2%
  • Recommended Coating Thickness: 25 to 75μm
  • VOCs Content: 661g/L
  • Minimum Operating Temperature: -65°C
  • Maximum Operating Temperature: +125°C
  • Standards Met: MIL-I-46058C Qualified, IPC-CC-830, RoHS Directive 2002/95/EC Compliant, UL Listed File No. E105698, ASTM D149, ASTM D150-98, ASTM G21, ASTM D1475

Technical Information

Brand: Humiseal
Availability: In Stock
Country Of Origin: US
Harmonized Code: 3208.20.0000

Additional Resources

Safety Data Sheet
$
