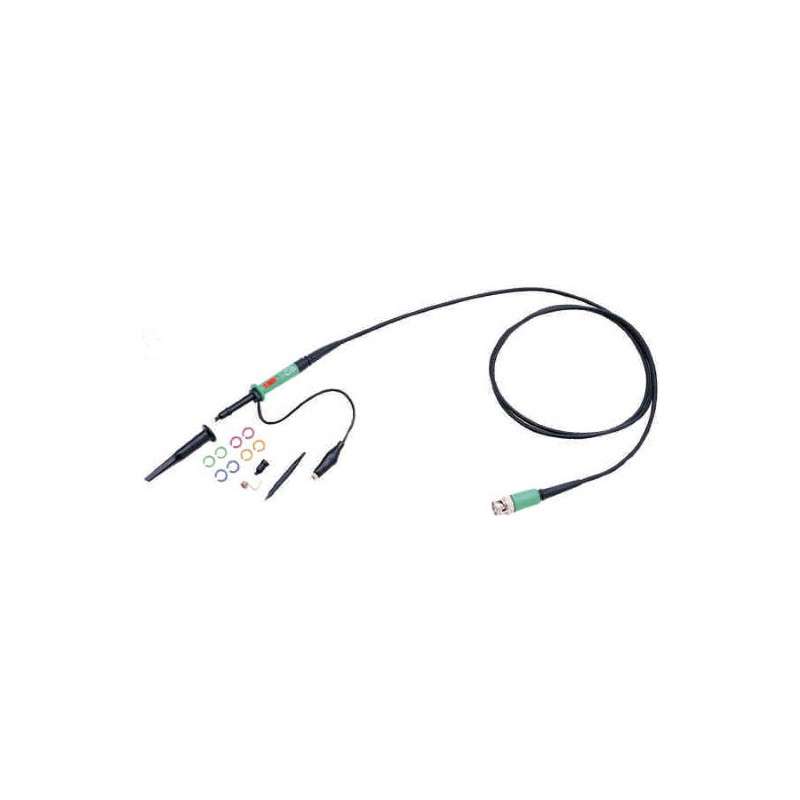

Instek GTP-250A-2 1:1/10:1 250 MHz Passive Oscilloscope Probe
Features and Specifications- Attenuation: 10:1 / 1:1 Switchable
- Bandwidth: DC ~ 250 MHz / DC ~ 6 MHz
- Max. Input Voltage: 500 V CAT I, 300 CAT II / 300 V CAT I, 150 V CAT II
- Includes: Channel identifier clip, Hook, Ground lead, lnsulating tip, IC tip, Adjusting tool, Earth tip
The GTP-250A-2 is a passive high impendence oscilloscope probe designed and calibrated for use on instrument having an input impedance of 1 MW shunted by 20pF. However, it may be compensated for use with instruments having an input capacitance of 10 ~ 35pF.
What's in the Box- Channel identifier clip
- Hook
- Ground lead
- lnsulating tip
- lC tip
- Adjusting tool
- Earth tip
Product Description
Technical Information
SDS/TDS
Back to top
Product Description
Instek GTP-250A-2 1:1/10:1 250 MHz Passive Oscilloscope Probe
Features and Specifications- Attenuation: 10:1 / 1:1 Switchable
- Bandwidth: DC ~ 250 MHz / DC ~ 6 MHz
- Max. Input Voltage: 500 V CAT I, 300 CAT II / 300 V CAT I, 150 V CAT II
- Includes: Channel identifier clip, Hook, Ground lead, lnsulating tip, IC tip, Adjusting tool, Earth tip
The GTP-250A-2 is a passive high impendence oscilloscope probe designed and calibrated for use on instrument having an input impedance of 1 MW shunted by 20pF. However, it may be compensated for use with instruments having an input capacitance of 10 ~ 35pF.
What's in the Box- Channel identifier clip
- Hook
- Ground lead
- lnsulating tip
- lC tip
- Adjusting tool
- Earth tip
Technical Information
Brand: GW Instek
Country Of Origin: TW
Harmonized Code: 9030908010
