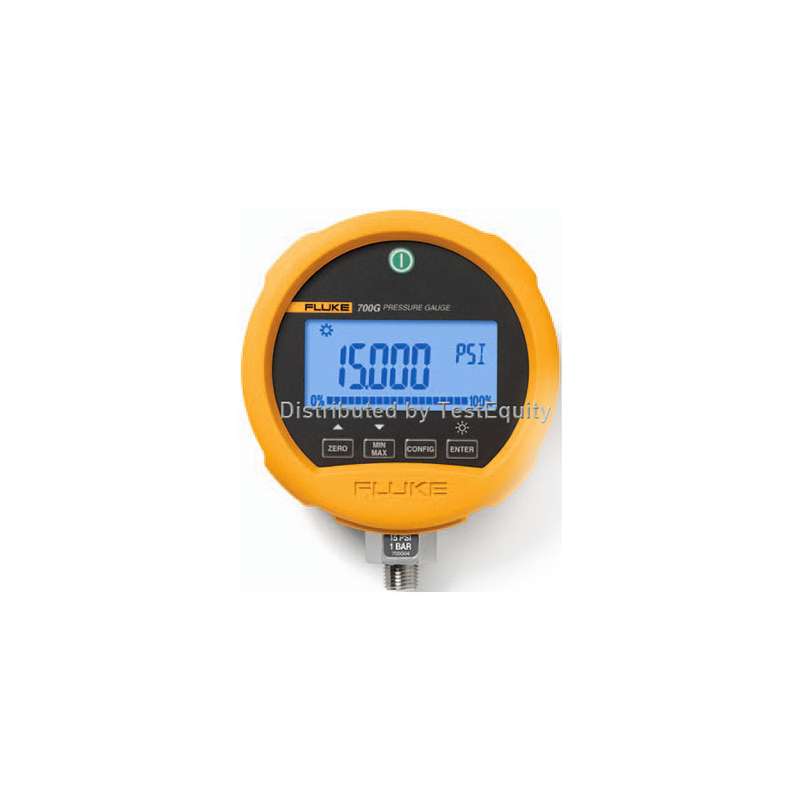

Pressure Gauge, 15 PSIG
Hisco #:4096972-19816
MFG #:4096972
$
Manufacturer Estimated Lead Time When Not In Stock: 14 days
Minimum Order QTY: 1
Item must be ordered in multiples of 1
Item must be ordered in multiples of 1
The Fluke 4096972 700G04 Pressure Gauge is designed for field pressure calibration.
Fluke 4096972 Features:- Precision pressure measurement from ±10 inH2O to 10,000 psi (20 to 690 bar)
- Absolute pressure measurement ranges 15, 30, 100, 300 psia
- Accuracy to 0.05% of full scale
- Reference class gauge accuracies to 0.04% of reading
- Easy to use, rugged construction for reliable performance
- Brand: Fluke
- Product Type: Pressure Gauges
- Range: -14 to 15 psi (-0.97 to 1 bar)
- Resolution: 0.001 psi (0.0001 bar)
- Accuracy: Positive pressure: ±0.05% FS, Vacuum: ±0.1% FS
- Burst Pressure: 60 psi (4 bar)
- Pressure Connection: ¼" NPT male
- Display: 5½ digits, 16.53 mm (0.65 in) high 20-segment bar graph, 0 to 100 %
- Power: 3 x AA alkaline batteries
- Battery Life: 1500 hours without backlight (continuous on), 2000 hours at slow sample rate
- Dimensions: 5 x 4.5 x 1.5" (12.7 x 11.4 x 3.7 cm)
Product Description
Technical Information
SDS/TDS
Back to top
Product Description
The Fluke 4096972 700G04 Pressure Gauge is designed for field pressure calibration.
Fluke 4096972 Features:- Precision pressure measurement from ±10 inH2O to 10,000 psi (20 to 690 bar)
- Absolute pressure measurement ranges 15, 30, 100, 300 psia
- Accuracy to 0.05% of full scale
- Reference class gauge accuracies to 0.04% of reading
- Easy to use, rugged construction for reliable performance
- Brand: Fluke
- Product Type: Pressure Gauges
- Range: -14 to 15 psi (-0.97 to 1 bar)
- Resolution: 0.001 psi (0.0001 bar)
- Accuracy: Positive pressure: ±0.05% FS, Vacuum: ±0.1% FS
- Burst Pressure: 60 psi (4 bar)
- Pressure Connection: ¼" NPT male
- Display: 5½ digits, 16.53 mm (0.65 in) high 20-segment bar graph, 0 to 100 %
- Power: 3 x AA alkaline batteries
- Battery Life: 1500 hours without backlight (continuous on), 2000 hours at slow sample rate
- Dimensions: 5 x 4.5 x 1.5" (12.7 x 11.4 x 3.7 cm)
Technical Information
Brand: Fluke
Availability: In Stock
