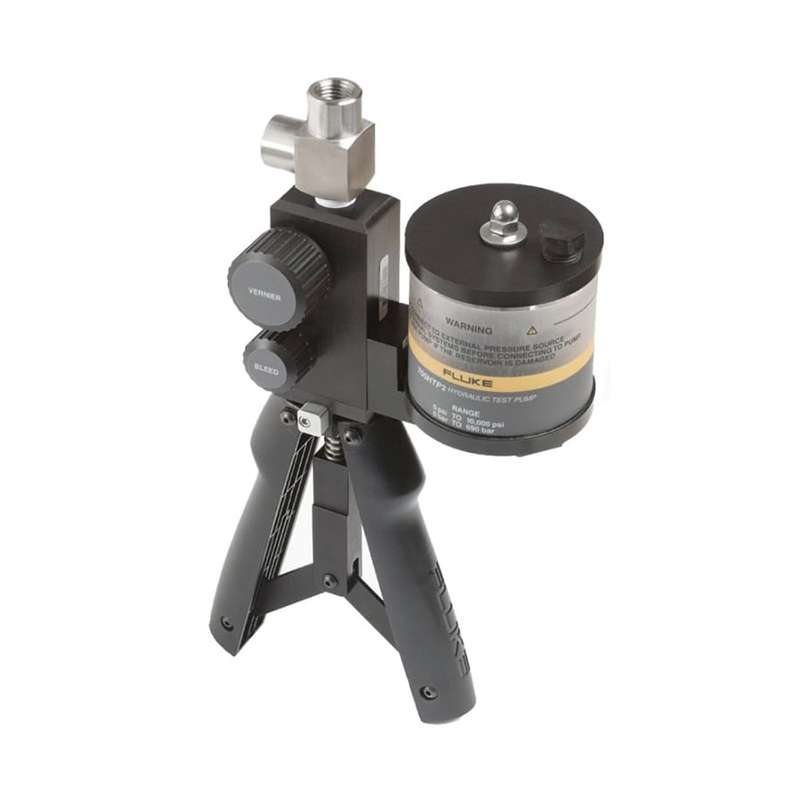

Hydraulic Test Pump, 10,000 PSI/690 BAR
Hisco #:4096855-19816
MFG #:4096855
$
Manufacturer Estimated Lead Time When Not In Stock: 14 days
Minimum Order QTY: 1
Item must be ordered in multiples of 1
Item must be ordered in multiples of 1
The Fluke 4096855 designed to generate calibration pressures up to 10,000 psi/690 bar. Designed for use with Fluke-700 series high pressure modules.
Fluke 4096855 Features:- Variable size stroke adjustment, allows the user to vary the volume and pressure per stroke
- Integral pressure adjustment vernier knob for fine pressure adjustment
- Directly connection to pressure modules consolidates two separate pieces into one when performing pressure calibration and testing
- Two 3/4 inch NPT pressure ports, one for reference (pressure module or gauge), one for UUT
- Brand: Fluke
- Product Type: Pressure Gauges
- Maximum Pressure: 10,000 psi (690 bar)
- Hydraulic Media: Distilled water, mineral based hydraulic oil, or up to hydraulic oil 100 (30 W)
- Wetted Materials: 303 stainless steel, aluminum, polyurethane, PTFE, nitrile, and nylon
- Dimensions: length 9.5 in (241 mm), width 6.1 in (155 mm), depth 2.6 in (66 mm)
Product Description
Technical Information
SDS/TDS
Back to top
Product Description
The Fluke 4096855 designed to generate calibration pressures up to 10,000 psi/690 bar. Designed for use with Fluke-700 series high pressure modules.
Fluke 4096855 Features:- Variable size stroke adjustment, allows the user to vary the volume and pressure per stroke
- Integral pressure adjustment vernier knob for fine pressure adjustment
- Directly connection to pressure modules consolidates two separate pieces into one when performing pressure calibration and testing
- Two 3/4 inch NPT pressure ports, one for reference (pressure module or gauge), one for UUT
- Brand: Fluke
- Product Type: Pressure Gauges
- Maximum Pressure: 10,000 psi (690 bar)
- Hydraulic Media: Distilled water, mineral based hydraulic oil, or up to hydraulic oil 100 (30 W)
- Wetted Materials: 303 stainless steel, aluminum, polyurethane, PTFE, nitrile, and nylon
- Dimensions: length 9.5 in (241 mm), width 6.1 in (155 mm), depth 2.6 in (66 mm)
Technical Information
Brand: Fluke
Availability: In Stock
