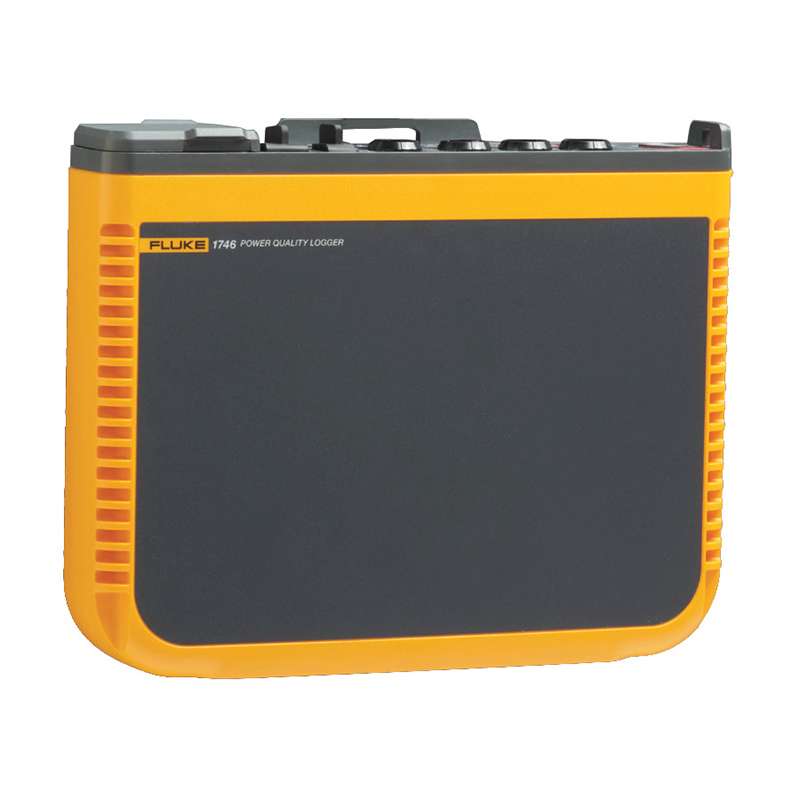

Power Quality Logger with 24in/60cm 3,000A IFLEX, EUS Version

The Fluke 4920651 is designed for troubleshooting, quantifying energy usage, and analyzing power distribution systems, this three-phase logger gives you fast access to the data you need to make critical power quality and energy decisions in real-time. Rugged and reliable, this logger features an optimized user interface and a 3000 A iFlex probe.

• Measure key power quality parameters: Measures harmonics and interharmonics for voltage and current, also includes unbalance, flicker and rapid voltage changes
• Measure with premium accuracy: Meets the rigorous IEC 61000-4-30 Class A Edition 3 standard for 'Testing and measurement techniques–Power quality measurement methods'
• One-touch reporting: Create standardized reports according to commonly used standards like EN 50160, IEEE 519, GOST 33073 or export data in PQDIF or NeQual compatible format for use with third party software using the included Fluke Energy Analyze Plus Software
• "In-workshop" or "in-the-field" setup and download through PC application software: simple download using USB memory stick, WiFi download, wired ethernet connection or via USB cable
• Energy Analyze plus application software: download and analyze every measured detail of energy consumption and power quality state-of-health with automated reporting

• Brand: Fluke
• Product Type: Data Logging Devices
• Voltage Range: 100 V to 500 V using safety plug input when powering from the measurement circuit
• Power Consumption: Maximum 50 VA (Max. 15 VA When Powered Using MA-C8 Adapter)
• Efficiency: ≥ 68.2 % (In Accordance with Energy Efficiency Regulations)
• Maximum No-Load Consumption: <0.3 W Only When Powered Using IEC 60320 Input
• Mains Power Frequency: 50/60 Hz ± 15 %
• Battery: Li-ion 3.7 V, 9.2 Wh, Customer-Replaceable
• On-Battery Run Time: Typically 4 hours
