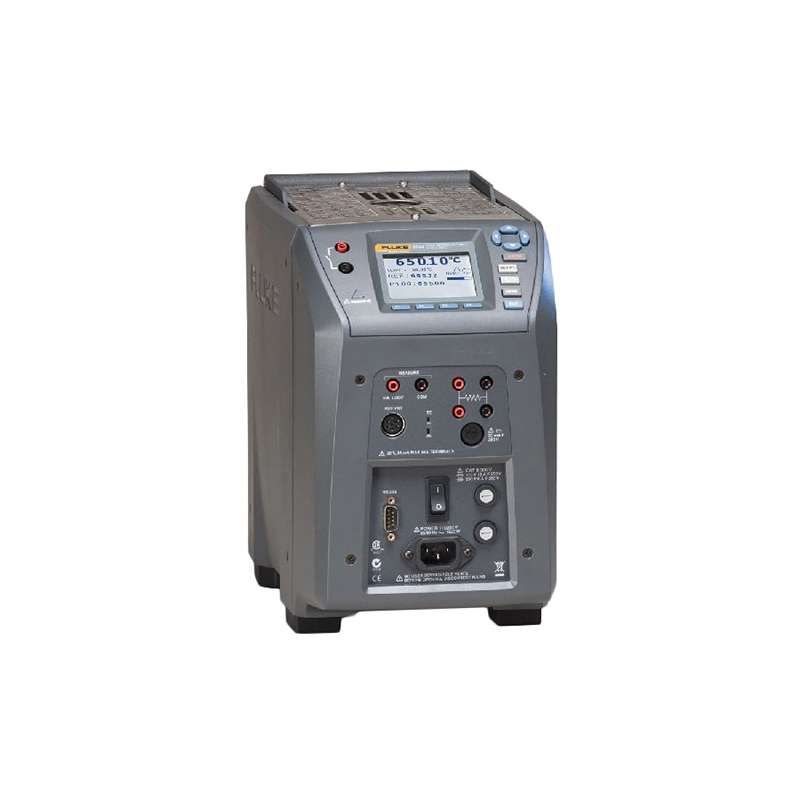

Field Metrology Well (No Insert) with Process Electronics, 50 to 660°C
Hisco #:3055145-19816
MFG #:3055145
$
Manufacturer Estimated Lead Time When Not In Stock: 14 days
Minimum Order QTY: 1
Item must be ordered in multiples of 1
Item must be ordered in multiples of 1
The Fluke 3055145 is designed to be lightweight, portable and fast, this field metrology well comes without an insert and has process electronics. The metrology well is made for a variety of field applications, such as transmitter loop calibrations, comparison calibrations and thermocouple sensor checks.
Fluke 3055145 Features:- Lightweight, portable, and fast
- On-board automation and documentation
- Built-in two-channel readout for PRT, RTD, thermocouple, 4-20 mA current
- True reference thermometry with accuracy to ±0.01°C
- Brand: Fluke
- Product Type: Current Loop Calibrator Accessories
- Resolution: 0.01°
- Display: LCD, °C or °F (user-selectable)
- Power Requirements: 100 to 115 V (±10%), 50/60 Hz, 1400 W 230 V (±10%), 50/60 Hz, 1800 W
- Computer Interface: RS-232 (9930 Interface-it control software included)
- Size: 11.4 x 7.3 x 11.6" (290 x 185 x 295 mm)
- Operating Conditions: 0 to 50°C, 0 to 90% RH (non-condensing)
Product Description
Technical Information
SDS/TDS
Back to top
Product Description
The Fluke 3055145 is designed to be lightweight, portable and fast, this field metrology well comes without an insert and has process electronics. The metrology well is made for a variety of field applications, such as transmitter loop calibrations, comparison calibrations and thermocouple sensor checks.
Fluke 3055145 Features:- Lightweight, portable, and fast
- On-board automation and documentation
- Built-in two-channel readout for PRT, RTD, thermocouple, 4-20 mA current
- True reference thermometry with accuracy to ±0.01°C
- Brand: Fluke
- Product Type: Current Loop Calibrator Accessories
- Resolution: 0.01°
- Display: LCD, °C or °F (user-selectable)
- Power Requirements: 100 to 115 V (±10%), 50/60 Hz, 1400 W 230 V (±10%), 50/60 Hz, 1800 W
- Computer Interface: RS-232 (9930 Interface-it control software included)
- Size: 11.4 x 7.3 x 11.6" (290 x 185 x 295 mm)
- Operating Conditions: 0 to 50°C, 0 to 90% RH (non-condensing)
Technical Information
Brand: Fluke
