LinkIQ 200 Duo Kit, VisiFault Visual Fault Locator, Live Fiber Detector

LinkIQ Duo Cable+Wi-Fi+Network Tester Features

• Cable performance testing up to 10GBASE-T plus troubleshooting (distance to fault, wire map, toning)

• LinkIQ tester is capable of measuring lengths up to 305 meters (1000 feet)

• Network features include IPv4 and v6 ping, nearest switch diagnostics (IP address, name, port / VLAN number, and advertised data rates)

• Ethernet Alliance-certified PoE Verification detects the class and power, and performs a load test of available PoE from the connected switch

• Wi-Fi analysis to Wi-Fi 6E, including networks, channels, and access points (Duo model) (6 GHz support only in countries where allowed)

• Manage results and print reports from LinkWare PC

• Touch Sensitive gesture-based display

• Rechargeable Li-Ion battery, charging via standard USB-C port

Cable Testing You Trust

The LinkIQ Cable+Wi-Fi+Network Tester is the solution to verify cable performance up to 10G and solve network connectivity problems. LinkIQ validates cable performance using frequency-based measurements to calculate maximum bandwidth (10BASE-T to 10GBASE-T). LinkIQ also provides IPv4 and v6 ping; nearest switch diagnostics (IP address, name, port / VLAN number, and advertised data rates); Ethernet Alliance-certified Power over Ethernet testing (hardware/software negotiation and loaded voltage and power tests). Wi-Fi analysis to Wi-Fi 6E, including networks, channels, and access points. Additional features include cable toning, port blink, optional remote office locators, and the ability to manage results via LinkWare PC.

Performing A Ping Test

The ping test checks connectivity to devices on the local network or the internet, supporting both IPv4 and IPv6. The LinkIQ tester's address can be configured manually or via DHCP. Once configured, the ping test is executed as part of the Autotest when a switch is detected. The test results include the identification and response time for each of four pings to the target, DNS server, and gateway.

Power Over Ethernet (PoE) Testing

The existence of three IEEE PoE standards, the unregistered status of the PoE term, and various non-compliant implementations causes a challenge when integrating PoE systems. To ease PoE installation and troubleshooting, the LinkIQ tester identifies the pairs supplying power, including different power levels and pairs for dual-signature setups. Additionally, the LinkIQ tester applies a load to the connection to verify that the switch delivers the advertised power through the cabling. The Ethernet Alliance has certified the LinkIQ tester to IEEE-802.3 standards, ensuring reliable interoperability across multiple vendors.

Testing to Wi-Fi 6E (LinkIQ Duo)

The LinkIQ Duo tester makes it easy to understand the Wi-Fi environment by running a complete suite of tests and displaying the results the way you want to view them: by networks, channels, or access points.

The LinkIQ Duo tester also flags common configuration errors including:

• Use of an illegal channel for the detected region

• Use of a non-recommended channel

• Access points that overlap with an adjacent access point unless one is low power

• Weak security settings

The Access Point test displays a list of available access points by name or BSSID, with a summary of channels/bands and networks supported along with encryption types. Touching an access point allows tracking of signal strength and channel utilization for each radio in the AP.

Channel Testing

For the channel test, select a band (2.4 GHz, 5 GHz, or 6 GHz) and see the utilization, AP signal strength and number of APs on each channel. Select the unique Channel Overlap view to see how many and which AP’s are on or interfering with a given channel as well as their signal strength. Touch a channel to see utilization over time and which APs are on or interfering with that channel.

LinkIQ Duo Interface Features

1. RJ45 Port for connection to cable or switch port

2. Internal antenna for Wi-Fi radio supporting 2.4GHz, 5GHz, and 6GHz bands (LinkIQ Duo model only)

3. PASS/FAIL frequency-based measurement results

4. Touch screen color display

5. Length measurement shows distance to termination, open, or short

6. Wire map shows type and location of fault (miswires, split pairs, shorts, breaks)

7. USB-C port for data export, software updates and charging

8. Cable performance to 10 Gb/s shown in speedometer format

9. Save up to 1000 test results and export to LinkWare PC

IntelliTone Probe Interface Features

1. LED's indicate signal strength and wire connectivity

2. SYNC indicates detection of IntelliTone signal

3. Thumbwheel to select desired toning mode

4. Locate cables at a distance

5. Isolate cables in bundles or at patch panels

6. Analog mode to isolate individual wire pairs with SmartTone

7. Test cable continuity

8. RJ45 plug

The IntelliTone probe detects IntelliTone digital signal for Locate, Isolate and CableMap Detects Analog SmartTone Signal (500-1200Hz) and other analog toners. It also tests cable continuity, eliminating the need for a separate diagnostic tool.

Visual Fault Locator And Live Fiber Detector

You can diagnose and repair simple fiber link problems with Fluke Networks' VisiFaultT Visual Fault Locator (VFL). The laser-powered VisiFault Visual Fault Locator is a cable continuity tester that locates fibers, verifies cable continuity and polarity. This cable continuity tester helps find breaks in cables, connectors and splices. Continuous and flashing modes make for easier identification. Compatible with 2.5mm and 1.25mm connectors for easy connection. Ruggedly constructed for demanding field-testing. This visual fault locator has a long battery life for hours of use.

The included pocket-sized FiberLert tool tests single-mode, multimode, UPC and APC patch cords and ports with a non-contact/non-contaminating detector. The LightBeat feature flashes the LED, indicating a powered-on condition and good battery. Detects optical power in single-mode and multimode fiber wavelengths.

What's in the Box

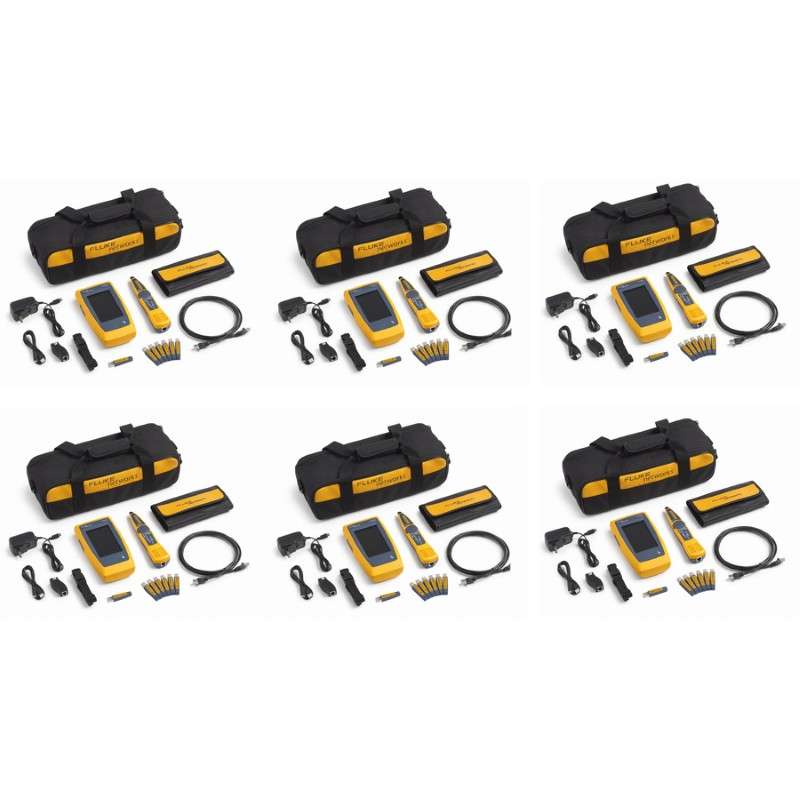

LIQ-DUO-VFL-LFD Includes:

• LinkIQ Duo cable+network tester

• Remote IDs #1-7

• RJ45-RJ45 patch cord

• AC charger

• RJ45/11 universal coupler

• Hang strap

• VisiFault Visual Fault Locator

• 2.5 mm universal adapter

• FiberLert Live fiber detector

• IntelliTone Pro 200 probe

• Carrying case and accessory pouch
