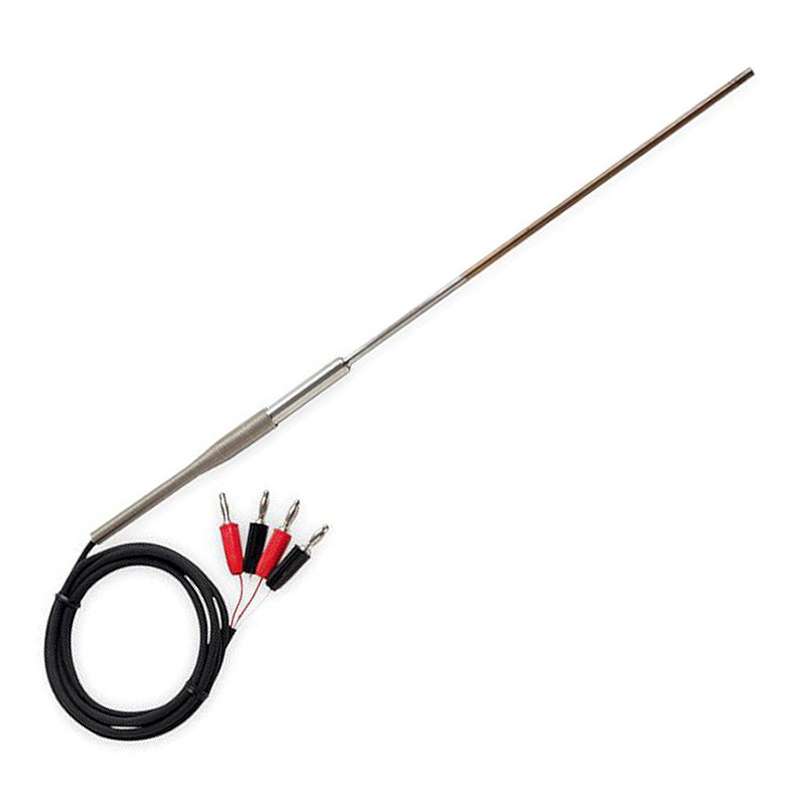

100 Ohm RTD Temperature Probe
Hisco #:2675468-19816
MFG #:2675468
$
Manufacturer Estimated Lead Time When Not In Stock: 14 days
Minimum Order QTY: 1
Item must be ordered in multiples of 1
Item must be ordered in multiples of 1
The Fluke 2675468 offers mineral-insulated sheath with a minimum bend radius of 19 mm (3/4 in) for flexibility and durability
Fluke 2675468 Features:- Sheath material 316 stainless steel
- Leads Teflon™-insulated, nickel-plated stranded copper, 22 AWG
- Termination 4-wire banana
- Time constant Four seconds maximum for 63.2% response to step change in water moving at 3 fps
- Bending radius 19 mm (3/4 in) except for 50 mm (2 in) area of sheath near tip
- Brand: Fluke
- Product Type: Probes
- Resistance: Nominal 100 Ω
- Temperature coefficient: 0.00385 Ω/Ω °C nominal
- Temperature range: -200 °C to 300 °C (transition and cable temperature: 0 °C to 150 °C)
- Drift rate: + 0.13 °C at 0 °C after 1000 hours at 300 °C
- Size: 9 in L x 3/16 in diameter
Product Description
Technical Information
SDS/TDS
Back to top
Product Description
The Fluke 2675468 offers mineral-insulated sheath with a minimum bend radius of 19 mm (3/4 in) for flexibility and durability
Fluke 2675468 Features:- Sheath material 316 stainless steel
- Leads Teflon™-insulated, nickel-plated stranded copper, 22 AWG
- Termination 4-wire banana
- Time constant Four seconds maximum for 63.2% response to step change in water moving at 3 fps
- Bending radius 19 mm (3/4 in) except for 50 mm (2 in) area of sheath near tip
- Brand: Fluke
- Product Type: Probes
- Resistance: Nominal 100 Ω
- Temperature coefficient: 0.00385 Ω/Ω °C nominal
- Temperature range: -200 °C to 300 °C (transition and cable temperature: 0 °C to 150 °C)
- Drift rate: + 0.13 °C at 0 °C after 1000 hours at 300 °C
- Size: 9 in L x 3/16 in diameter
Technical Information
Brand: Fluke
